Assembly Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new pitman shaft cover O-ring (4).
  2. Install the pitman shaft and cover assembly (3) onto the steering gear housing assembly.
  3. Install the lash adjuster nut (2) onto the pitman shaft and cover assembly (3)
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the pitman shaft cover bolts (1) onto the pitman shaft and cover assembly (3).

    Tighten

    Tighten the pitman shaft cover bolts to 62 N.m (46 lb ft).

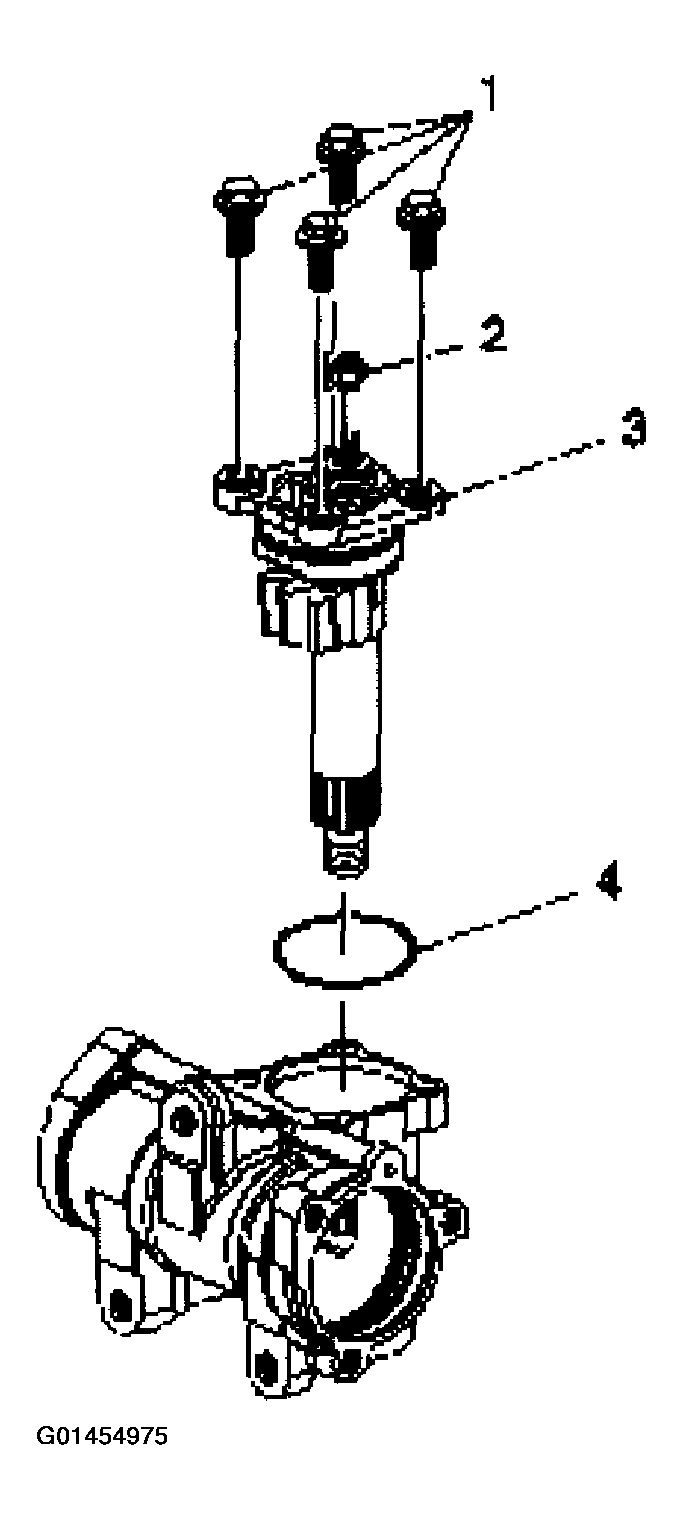

    Fig 1: Installing Pitman Shaft And Cover Assembly
    G01454975Courtesy of GENERAL MOTORS CORP.
  5. Install the lock washer (2).
  6. Install the nut (3).
  7. If necessary adjust the pitman shaft. Refer to PITMAN SHAFT OVER-CENTER PRELOAD ADJUSTMENT - OFF VEHICLE (670 GEAR)  or PITMAN SHAFT OVER-CENTER PRELOAD ADJUSTMENT - OFF VEHICLE (700 GEAR)  .

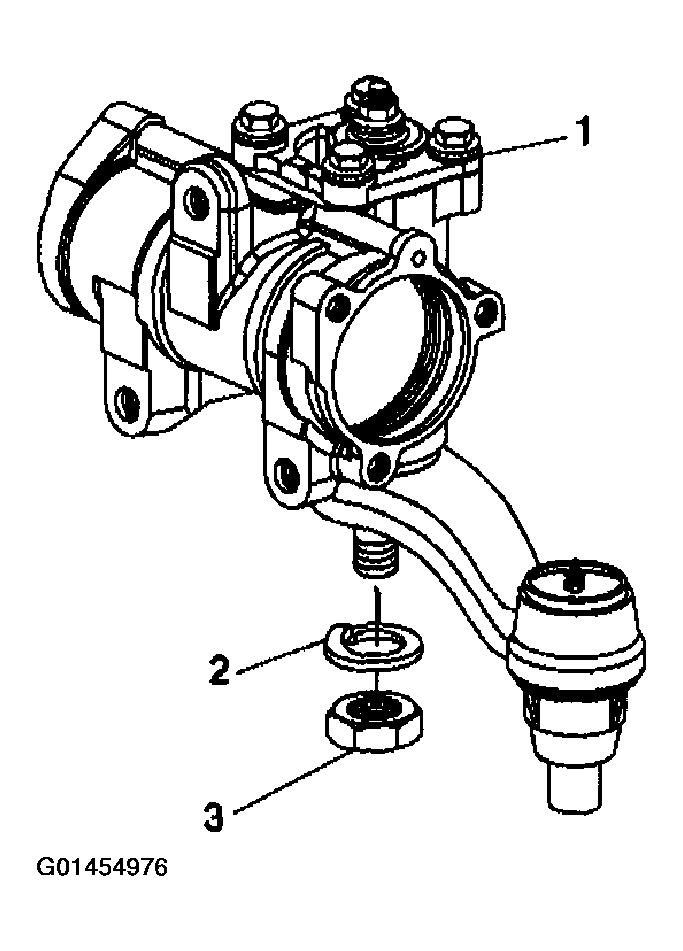

    Fig 2: Installing Nut
    G01454976Courtesy of GENERAL MOTORS CORP.
