Assembly Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the O-ring seal (3) with power steering fluid.
  2. Install the O-ring seal (3) into the steering gear housing (5).
  3. Install the plug (2).
  4. Install the retaining ring (1). Ensure that the retaining ring open end is approximately 25 mm (1 in) from the access hole in the steering gear housing (5).

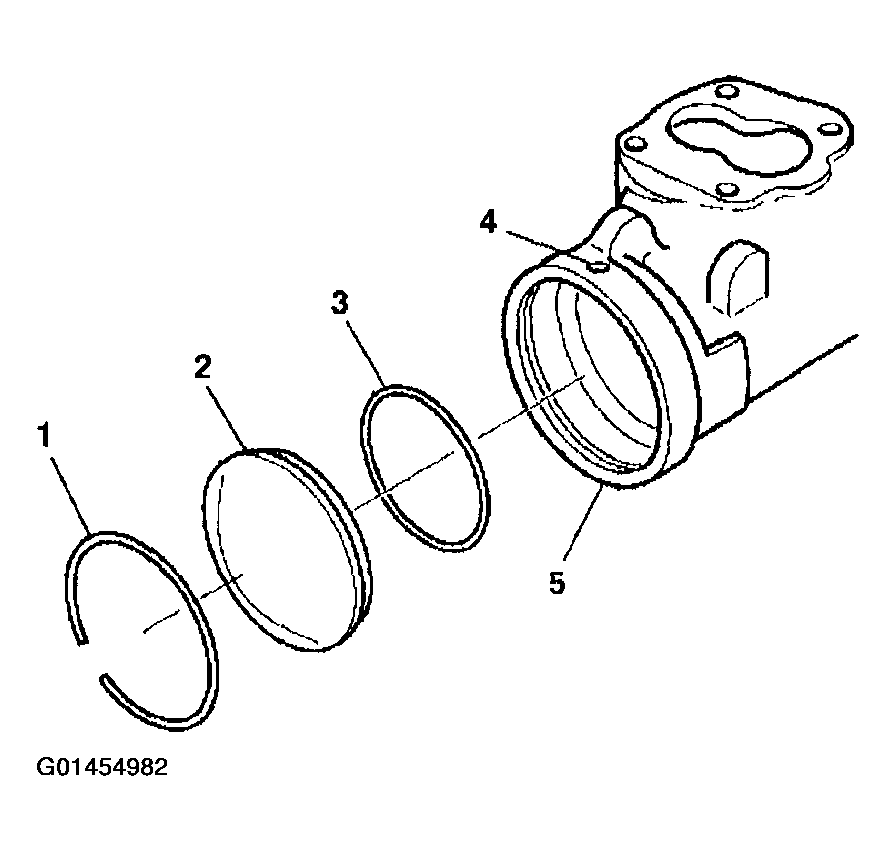

    Fig 1: Installing O-Ring Seal
    G01454982Courtesy of GENERAL MOTORS CORP.
