Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: Do not to damage the threads of the steering gear housing when removing the check valve.

Remove the check valve (1) from the steering gear housing (2) using a small screwdriver.

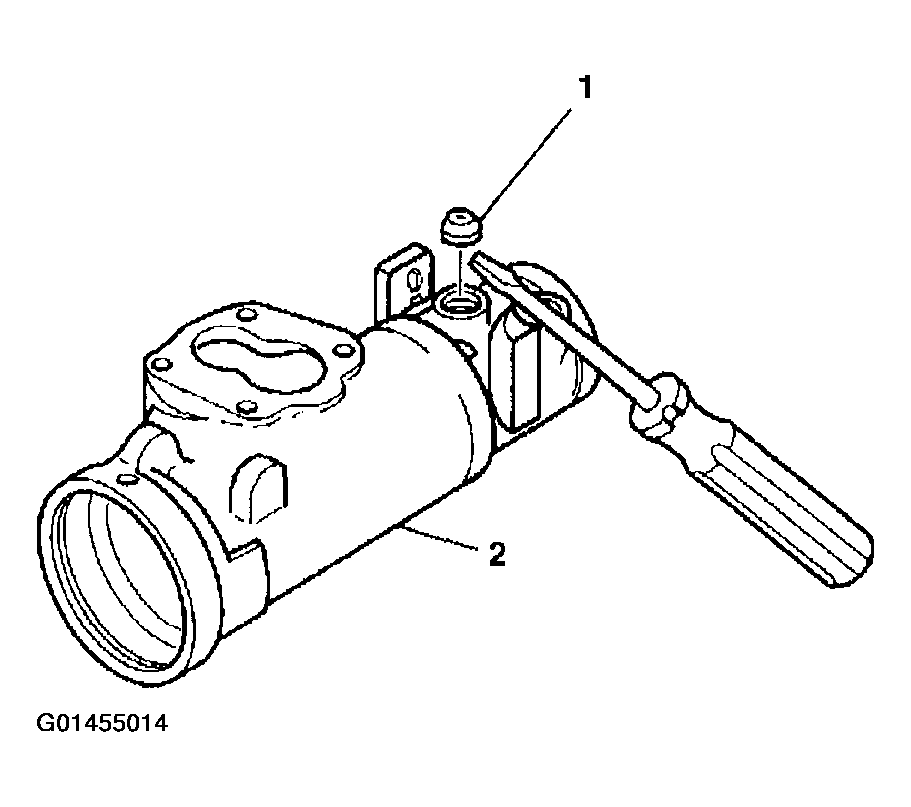

Fig 1: Removing Check Valve

Courtesy of GENERAL MOTORS CORP.
