Assembly Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the check valve (1) using a 9.52mm inch diameter piece of tubing 100 mm (4 in) long to drive into the steering gear housing.

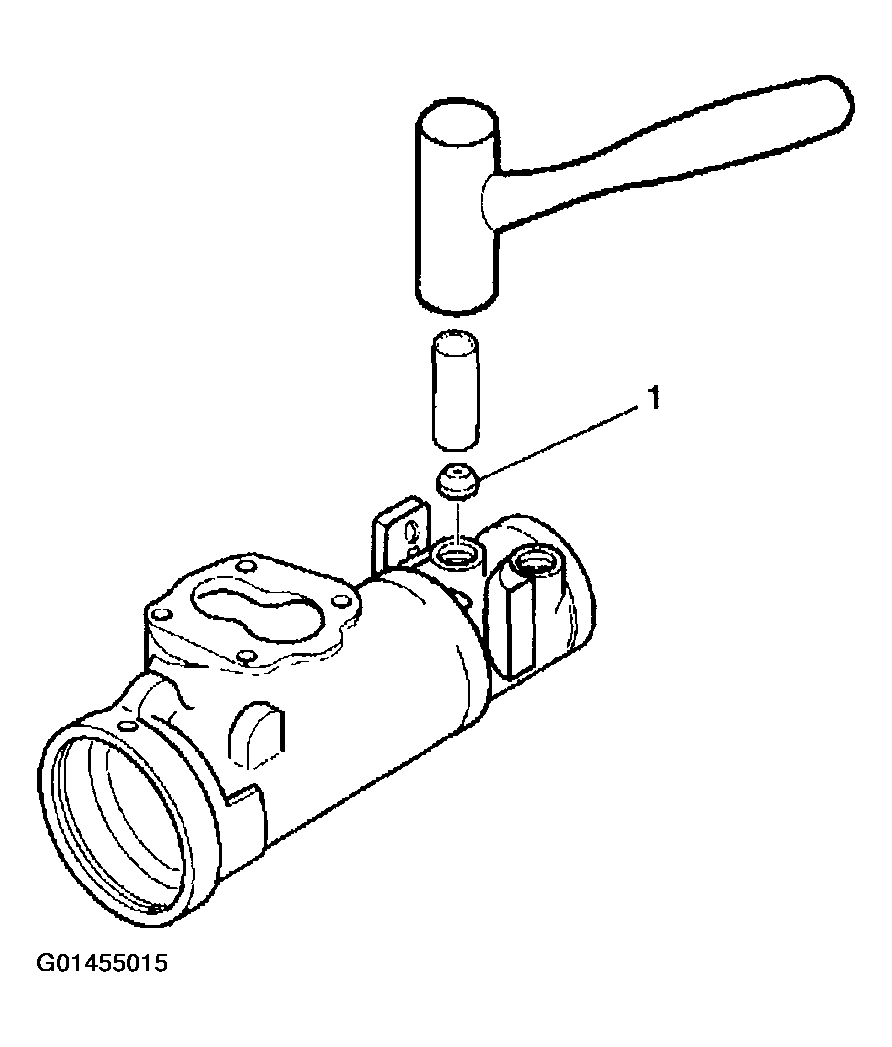

Fig 1: Installing Check Valve
G01455015Courtesy of GENERAL MOTORS CORP.
