Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the rear bracket to the power steering pump.
Tighten

Tighten the rear bracket retaining nuts to 50 N.m (37 lb ft).
Install the power steering pump to the vehicle.
Install the pressure hose (2) to the power steering pump.
Tighten

Tighten the hose fitting to 28 N.m (20 lb ft).

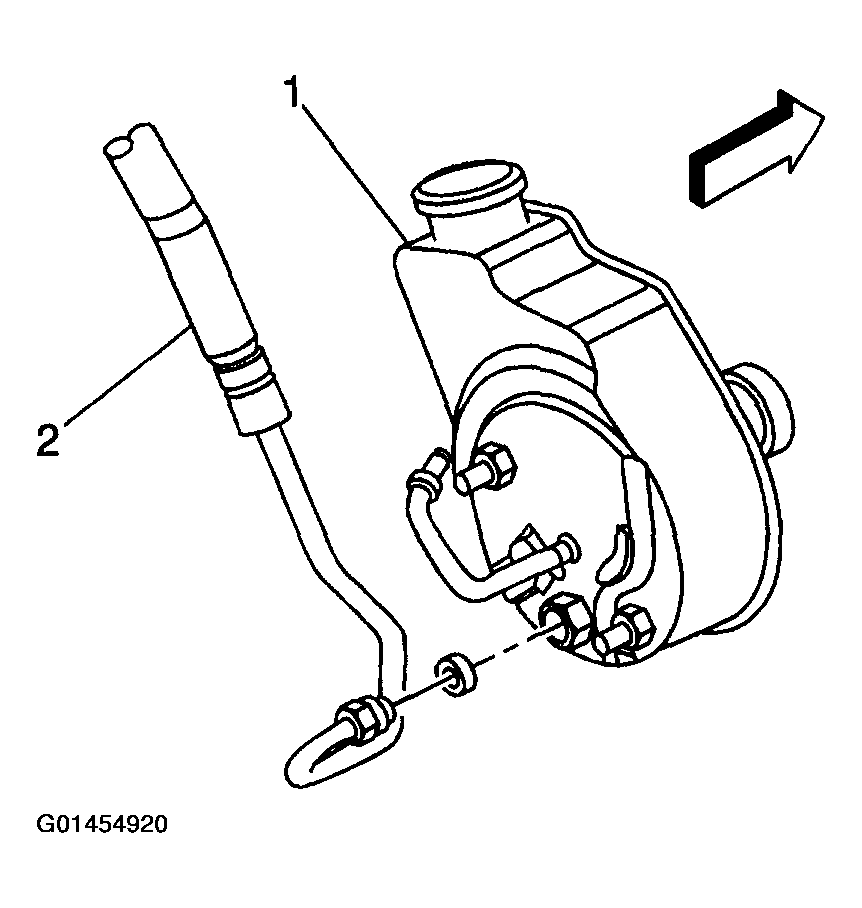

Fig 1: Installing Pressure Hose To Power Steering Pump
Courtesy of GENERAL MOTORS CORP.
Install the power steering return hoses (2,4) and retaining clamps to the power steering pump.

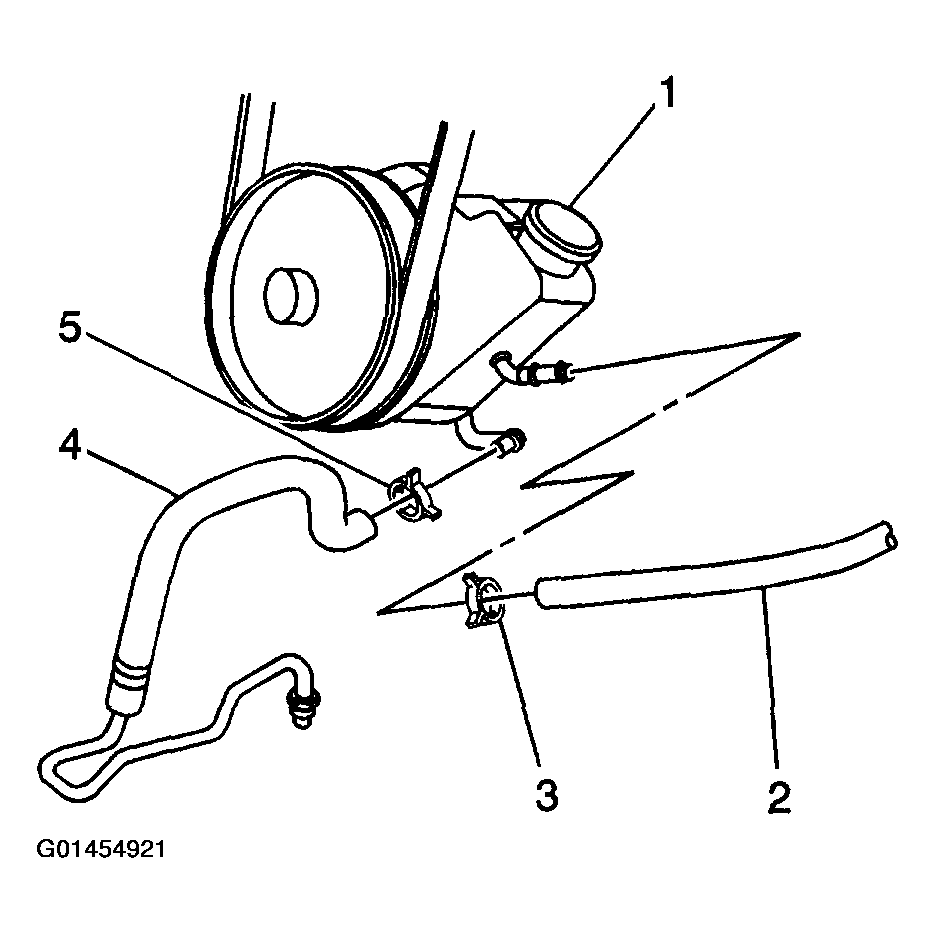

Fig 2: Installing Power Steering Return Hoses To Power Steering Pump
Courtesy of GENERAL MOTORS CORP.
Install the bolts (1) to the rear of the power steering pump.
Tighten

Tighten the rear bolts to 50 N.m (37 lb ft).

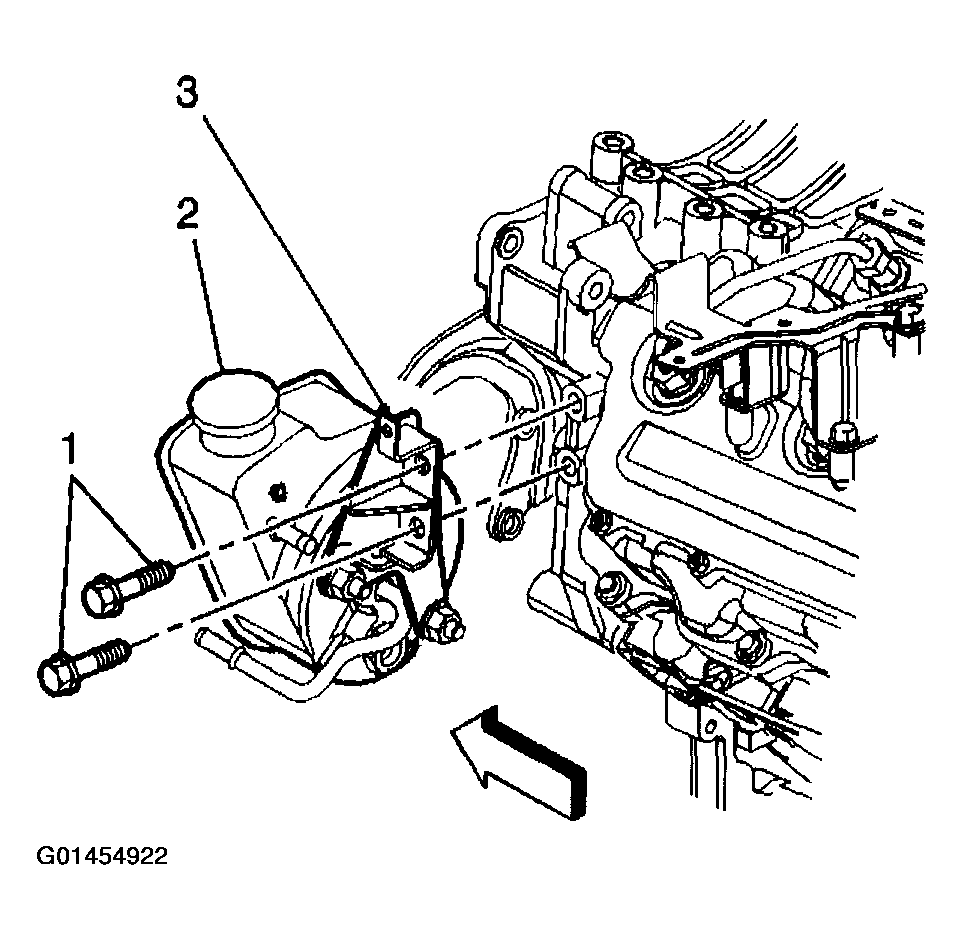

Fig 3: Installing Bolts To Rear Of Power Steering Pump
Courtesy of GENERAL MOTORS CORP.
Install the power steering pump mounting bracket bolts.
Tighten

Tighten the mounting bracket bolts to 50 N.m (37 lb ft).
Install the bolts (2) to the front of the pump.
Tighten

Tighten the power steering pump retaining bolts to 50 N.m (37 lb ft).

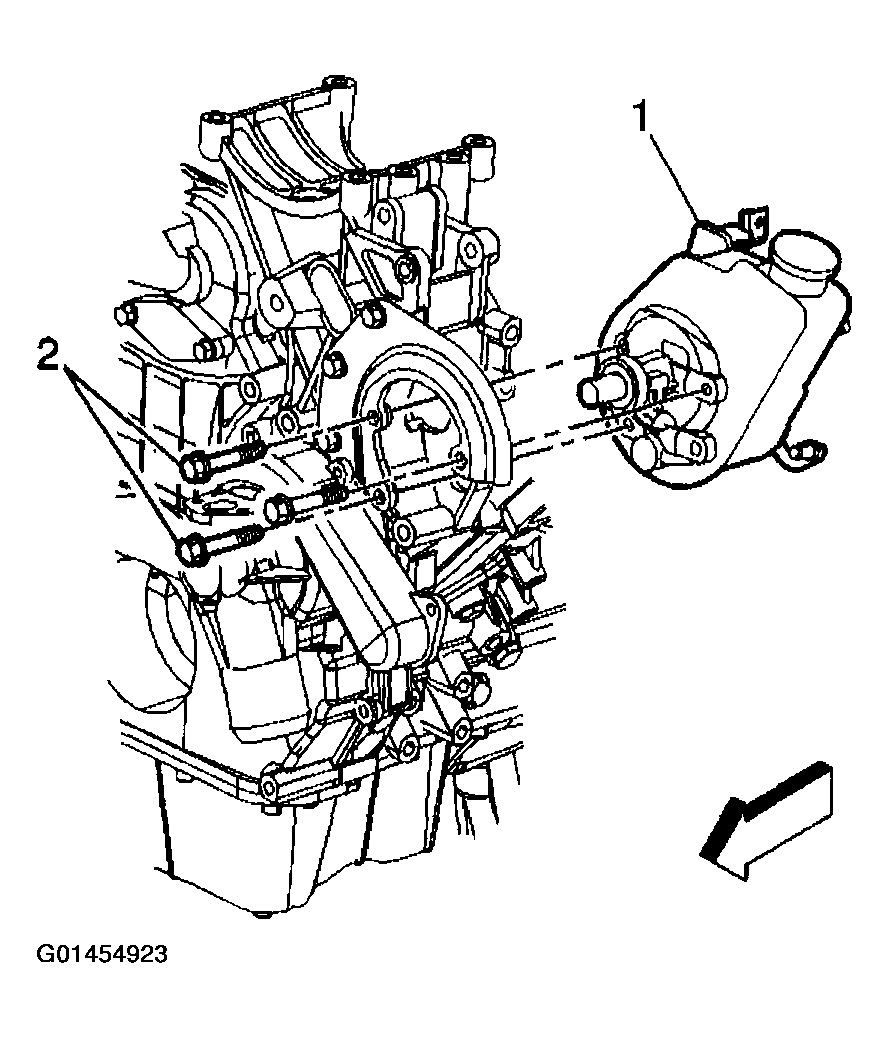

Fig 4: Installing Bolts To Front Of Pump
Courtesy of GENERAL MOTORS CORP.
Install the filler neck to the power steering pump.
Install the nut (1) and clamp (3) retaining the filler neck to the power steering pump.
Tighten

Tighten the filler neck retaining nut to 25 N.m (18 lb ft).
Fill and bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .

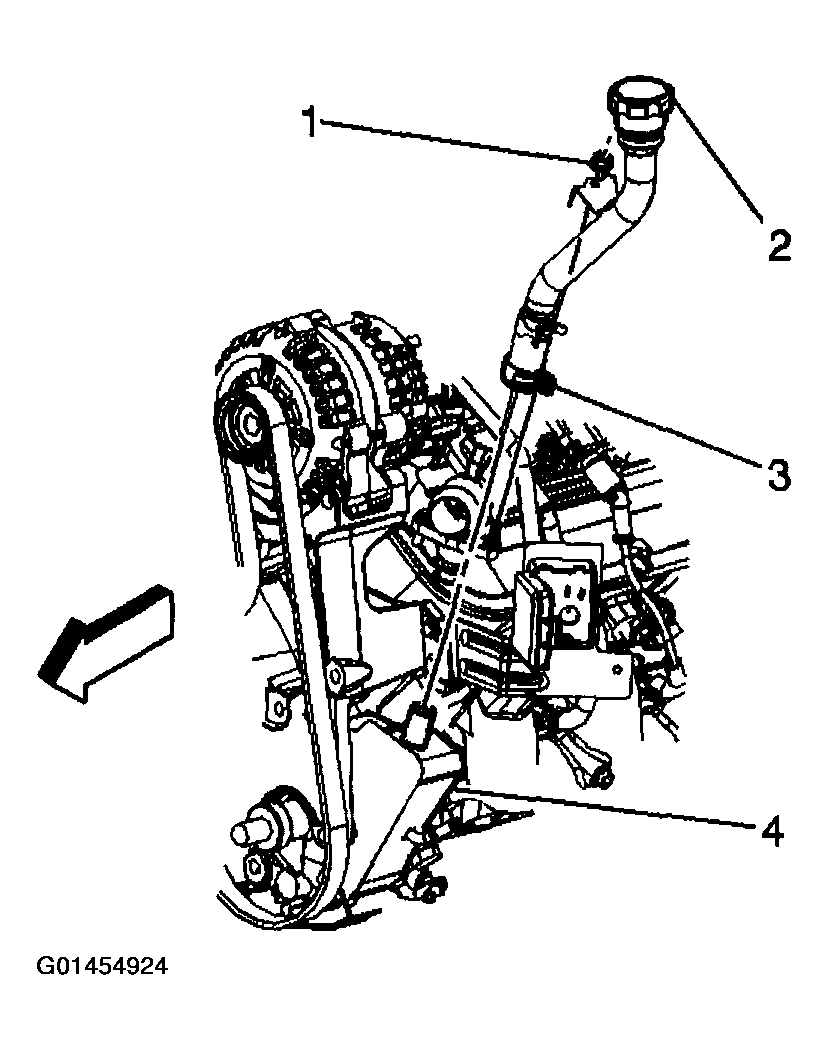

Fig 5: Installing Filler Neck To Power Steering Pump
Courtesy of GENERAL MOTORS CORP.
