Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

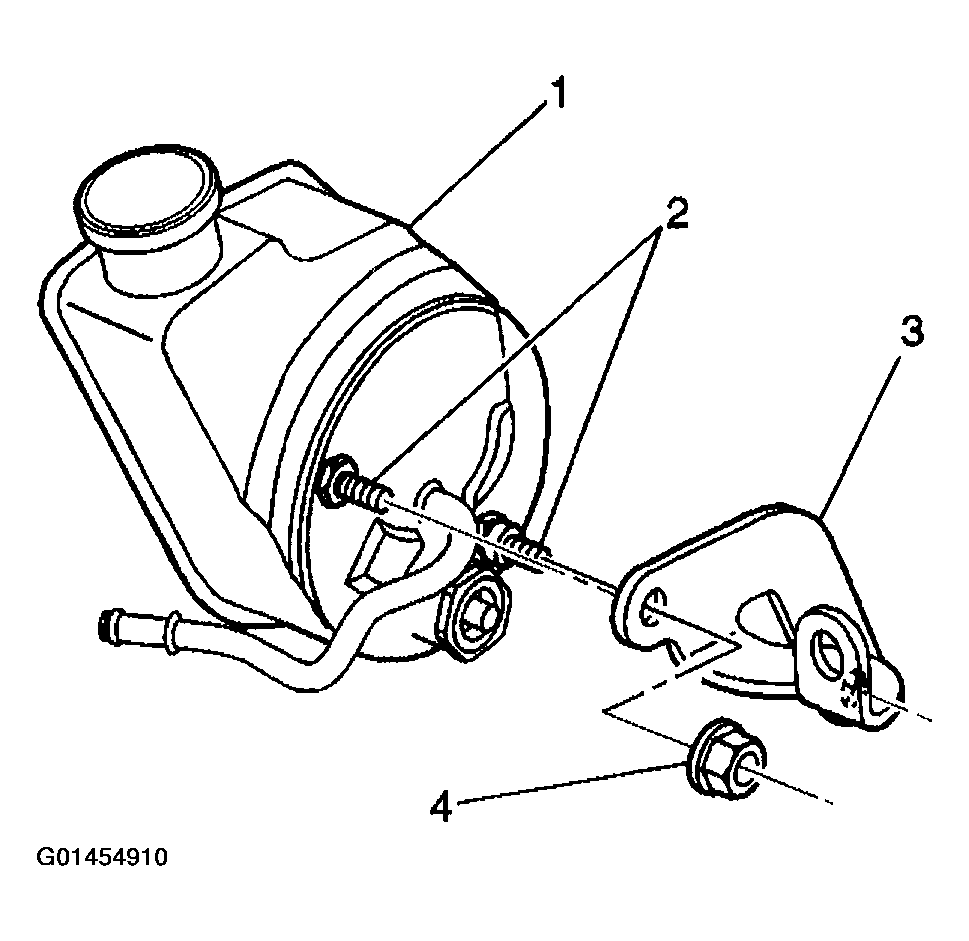

Install the bracket (3) to the rear of the pump (1)
Tighten

Tighten the rear bracket retaining nuts to 50 N.m (37 lb ft).

Fig 1: Installing Bracket To Rear Of Pump
Courtesy of GENERAL MOTORS CORP.

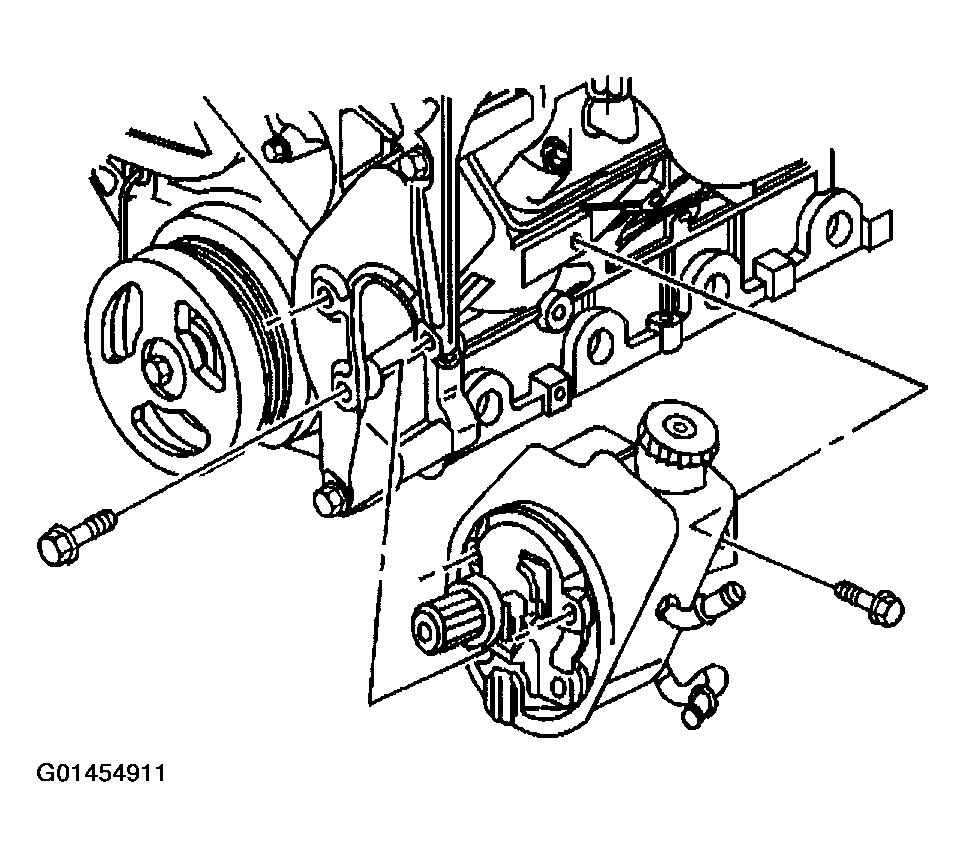

Install the power steering pump.
Install the bolt retaining the rear bracket to the engine.
Tighten

Tighten the rear power steering bracket bolt to engine bracket to 50 N.m (37 lb ft).
Install the bolts to the front of the pump.
Tighten

Tighten the bolts to 50 N.m (37 lb ft).

Fig 2: Installing Power Steering Pump
Courtesy of GENERAL MOTORS CORP.

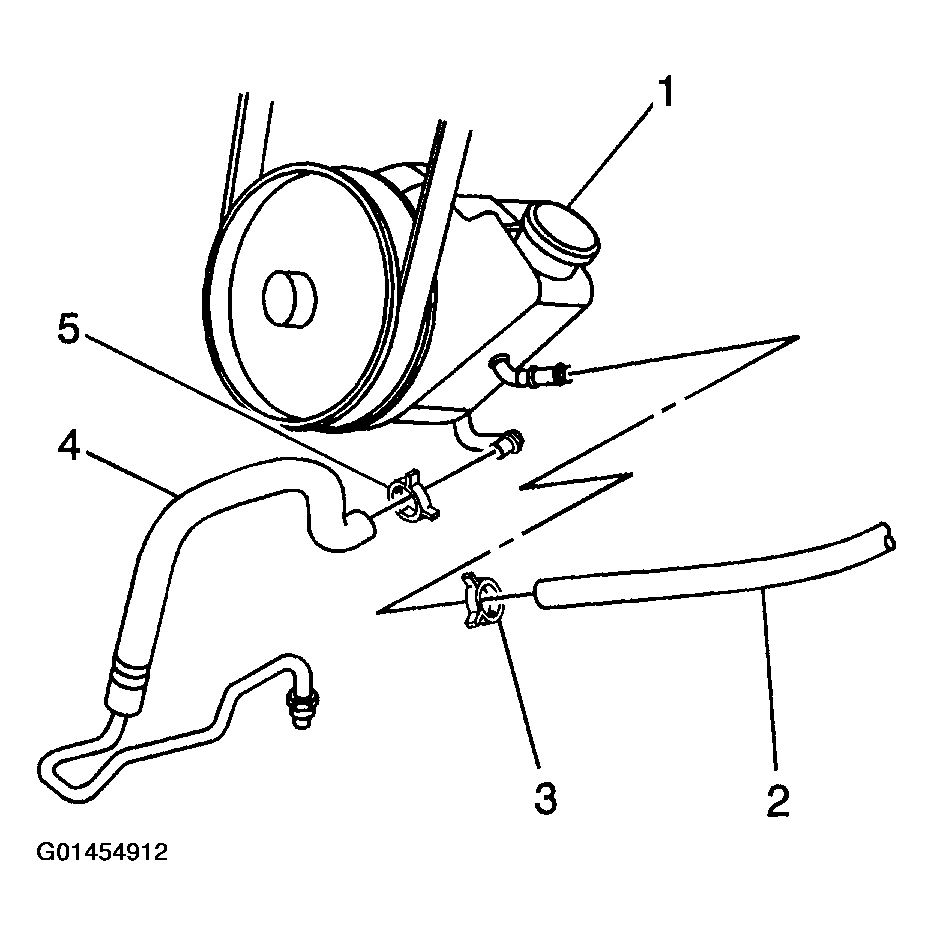

Install the power steering pump return hoses (2,4) to the power steering pump and install the retaining clamps.

Fig 3: Installing Power Steering Pump Return Hoses
Courtesy of GENERAL MOTORS CORP.
Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.

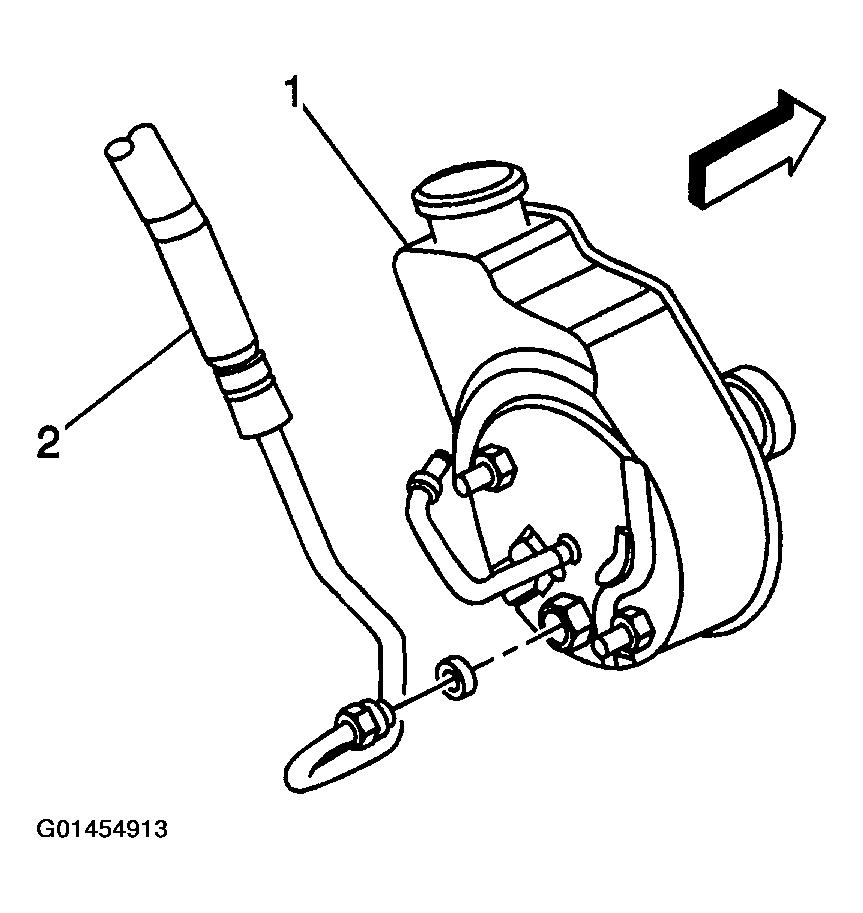

Install the power steering pressure hose (2) to the power steering pump.
Tighten

Tighten the nut to 28 N.m (20 lb ft).

Fig 4: Installing Power Steering Pressure Hose
Courtesy of GENERAL MOTORS CORP.

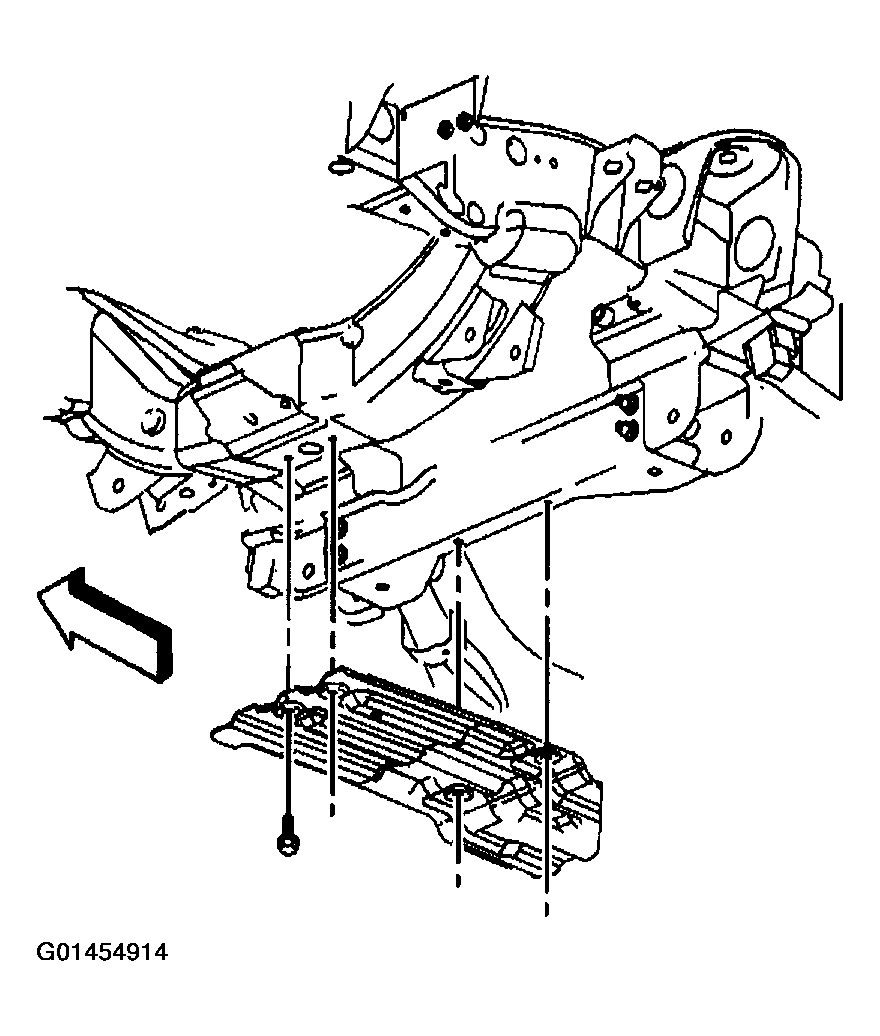

Install the oil pan skid plate, if equipped.
Install the oil pan skid plate bolts.
Tighten

Tighten the retaining bolts to 20 N.m (15 lb ft).
Lower the vehicle.
Install the intermediate shaft. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT - LOWER in STEERING WHEEL & STEERING COLUMN .
Install the power steering pulley. Refer to POWER STEERING PULLEY REPLACEMENT .
Fill and bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .

Fig 5: Installing Oil Pan Skid Plate
Courtesy of GENERAL MOTORS CORP.
