Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper fan shroud. Refer to FAN SHROUD REPLACEMENT - UPPER (W/O M74) or FAN SHROUD REPLACEMENT - UPPER (W/M74) in ENGINE COOLING SYSTEM .
  2. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT -- ACCESSORY or 8.1L in Engine Mechanical.
  3. Remove the power steering pump pulley using the J25034-C  .

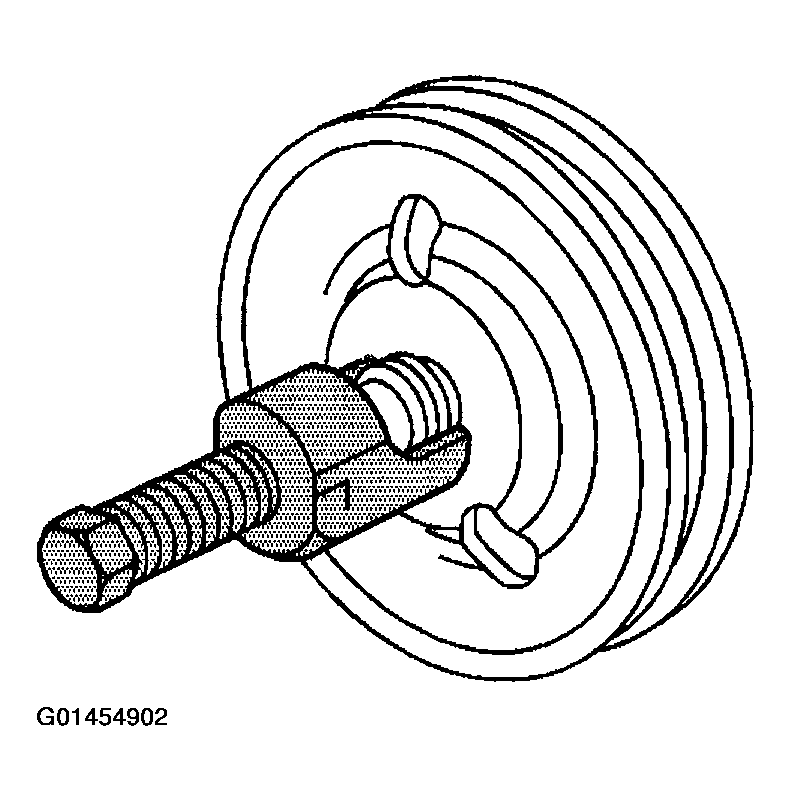

    Fig 1: Removing Power Steering Pump Pulley
    G01454902Courtesy of GENERAL MOTORS CORP.
