Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 6632-01 Pitman Arm Puller
J 24319-B Universal Steering Linkage Puller
J 29107-A Pitman Arm Puller

Place a drain pan under the vehicle.
Remove the engine protection shield, if equipped.
NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE in Cautions and Notices.
Remove the power steering hoses from the steering gear.
Cap the ends of the hoses and the power steering gear in order to prevent any entrance of dirt.
Disconnect the intermediate shaft from the steering gear. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT - LOWER in STEERING WHEEL & STEERING COLUMN .
Remove the pitman arm to relay rod nut.

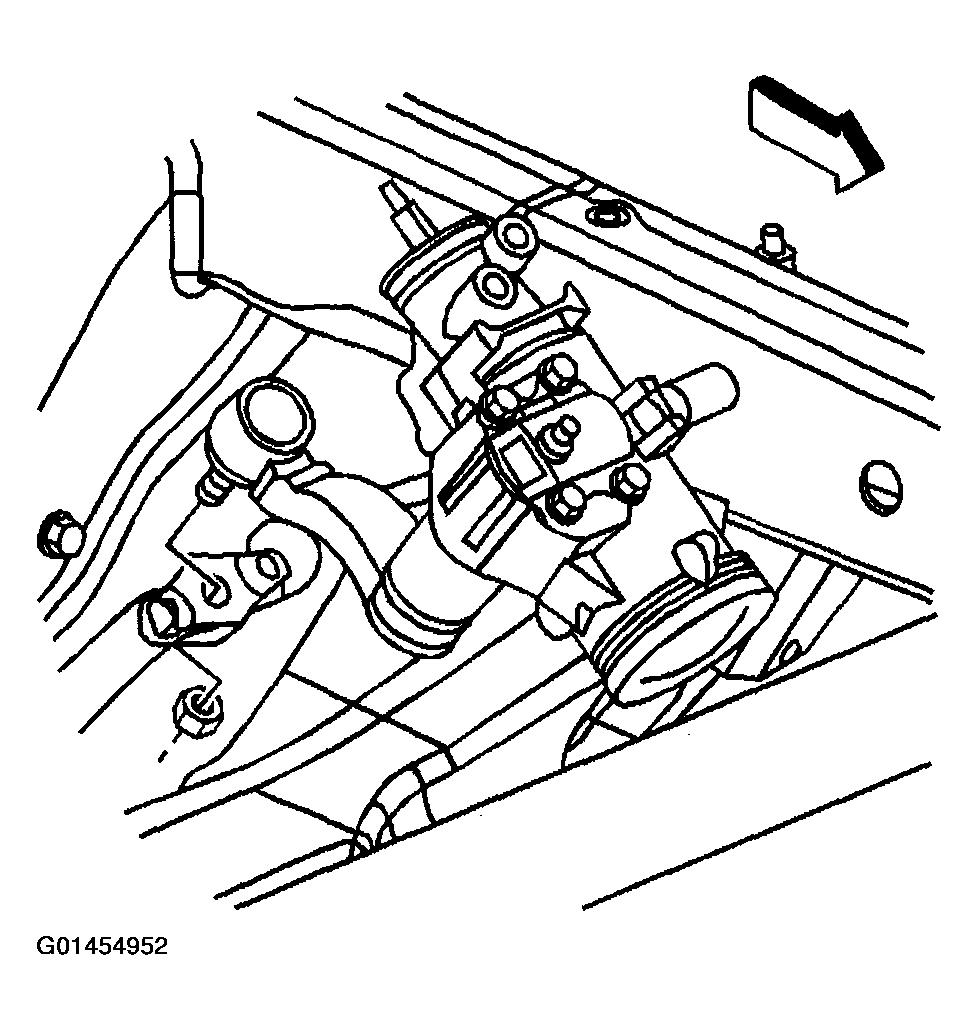

Fig 1: Removing Pitman Arm To Relay Rod Nut
Courtesy of GENERAL MOTORS CORP.
Disconnect the pitman arm from the relay rod using J 24319-B .

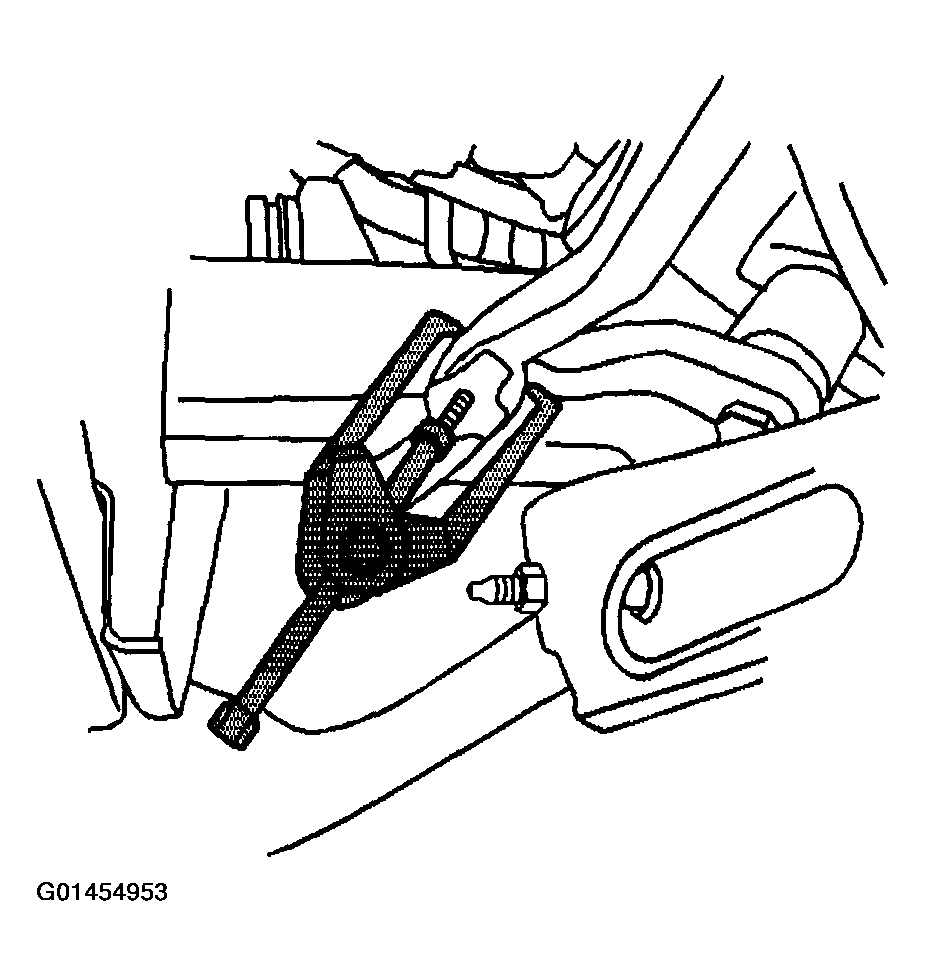

Fig 2: Disconnecting Pitman Arm From Relay Rod
Courtesy of GENERAL MOTORS CORP.
Remove the bolts retaining the steering gear to the frame.
Remove the steering gear from the vehicle.

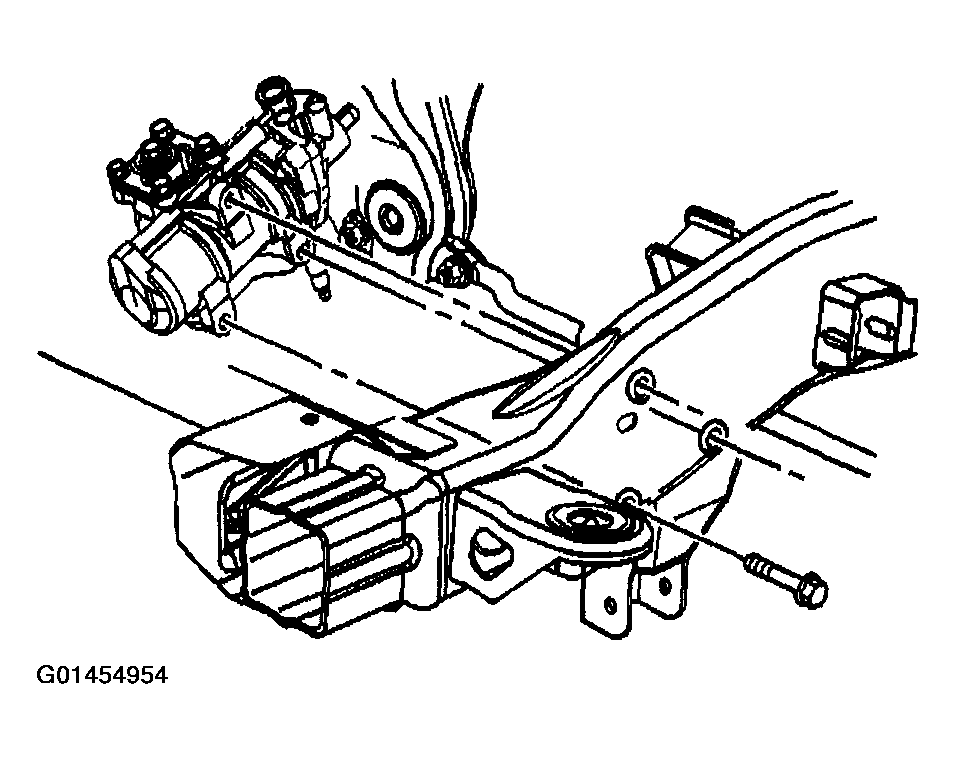

Fig 3: Removing Steering Gear From Vehicle
Courtesy of GENERAL MOTORS CORP.
Remove the pitman arm to the power steering gear retaining nut.

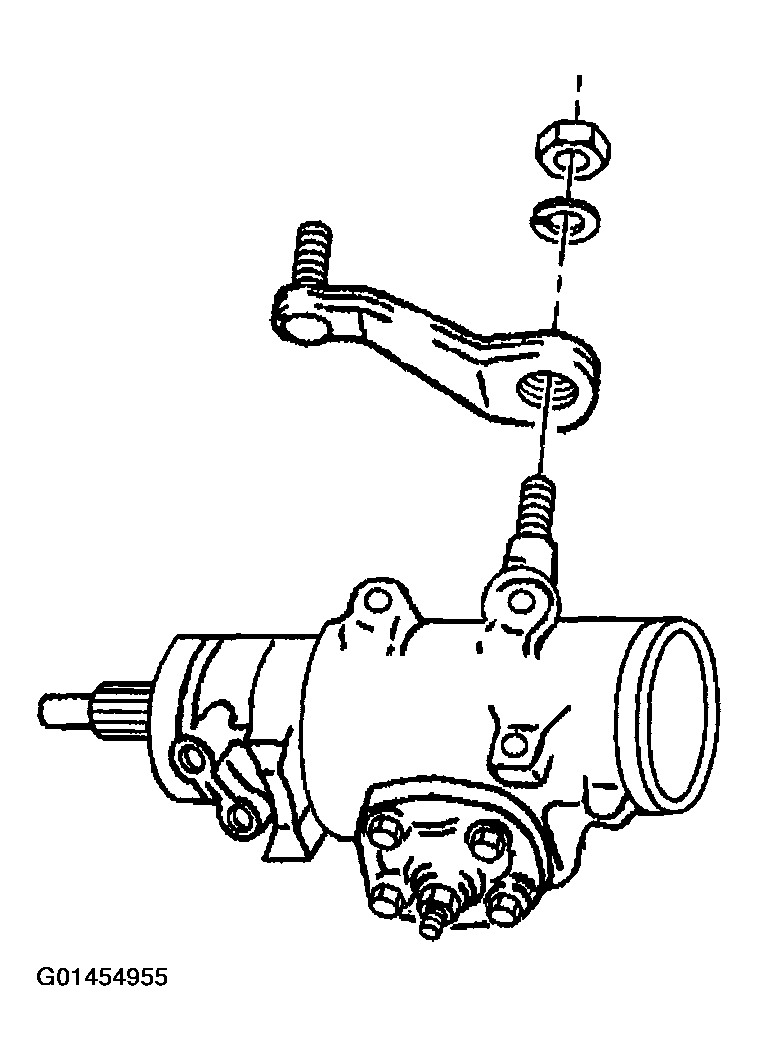

Fig 4: Removing Pitman Arm To Power Steering Gear
Courtesy of GENERAL MOTORS CORP.
Remove the pitman arm from the power steering gear using J 6632-01 or J 29107-A .

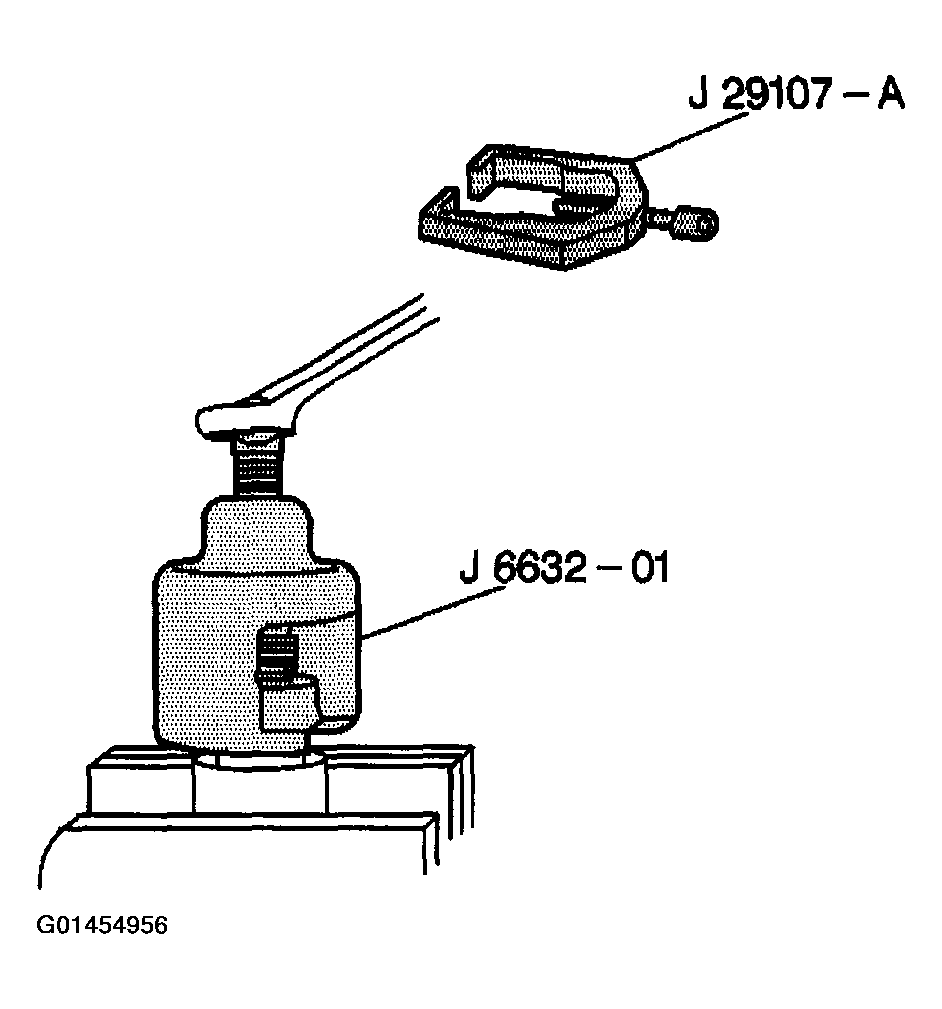

Fig 5: Removing Pitman Arm From Power Steering Gear
Courtesy of GENERAL MOTORS CORP.
