Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE in Cautions and Notices.
  1. Install a drain pan under the vehicle.
  2. Remove the power steering gear outlet hose (3) from the steering gear (2).
  3. Remove the clamp retaining the power steering gear outlet hose (3) to the power steering pump (1).

    Remove the power steering gear outlet hose from the power steering pump.

  4. Remove the power steering gear outlet hose from the vehicle.

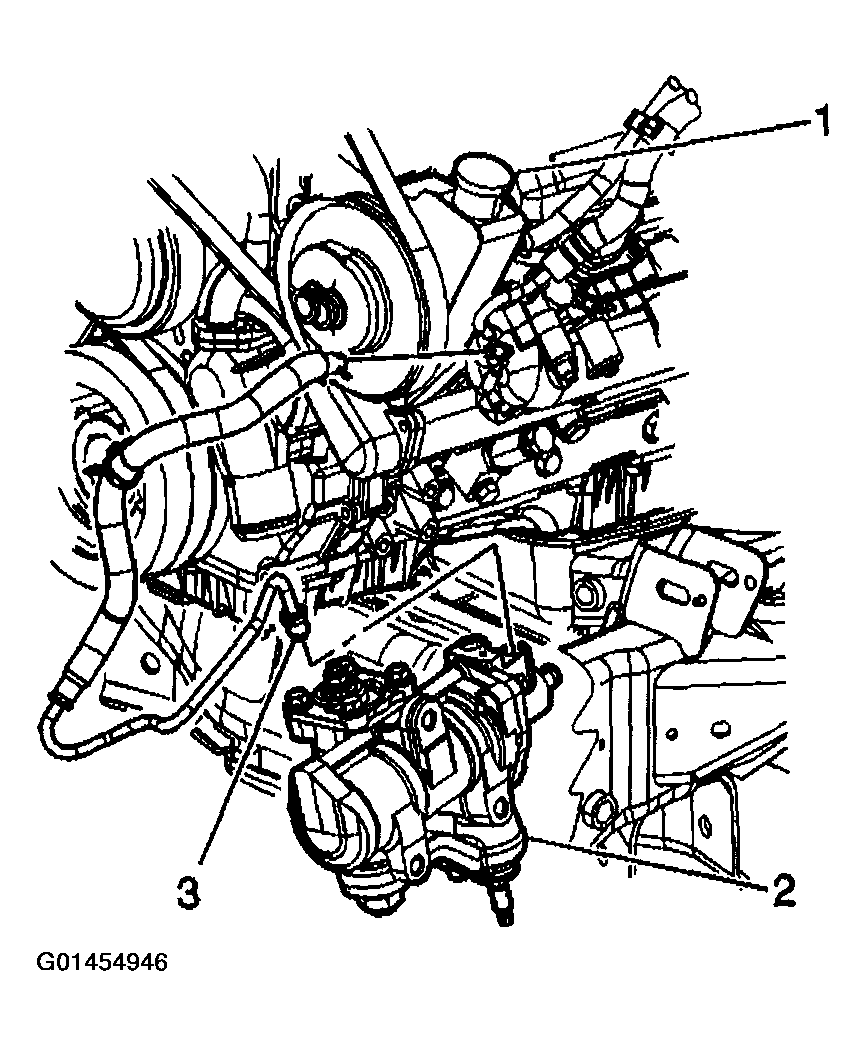

    Fig 1: Removing Power Steering Gear Outlet Hose
    G01454946Courtesy of GENERAL MOTORS CORP.
