Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE in Cautions and Notices.
  1. Install a drain pan under the vehicle.
  2. Remove the power steering gear inlet hose (1) from the brake booster.
  3. Remove the power steering gear inlet hose from the power steering gear.
  4. Remove the power steering gear inlet hose from the vehicle.

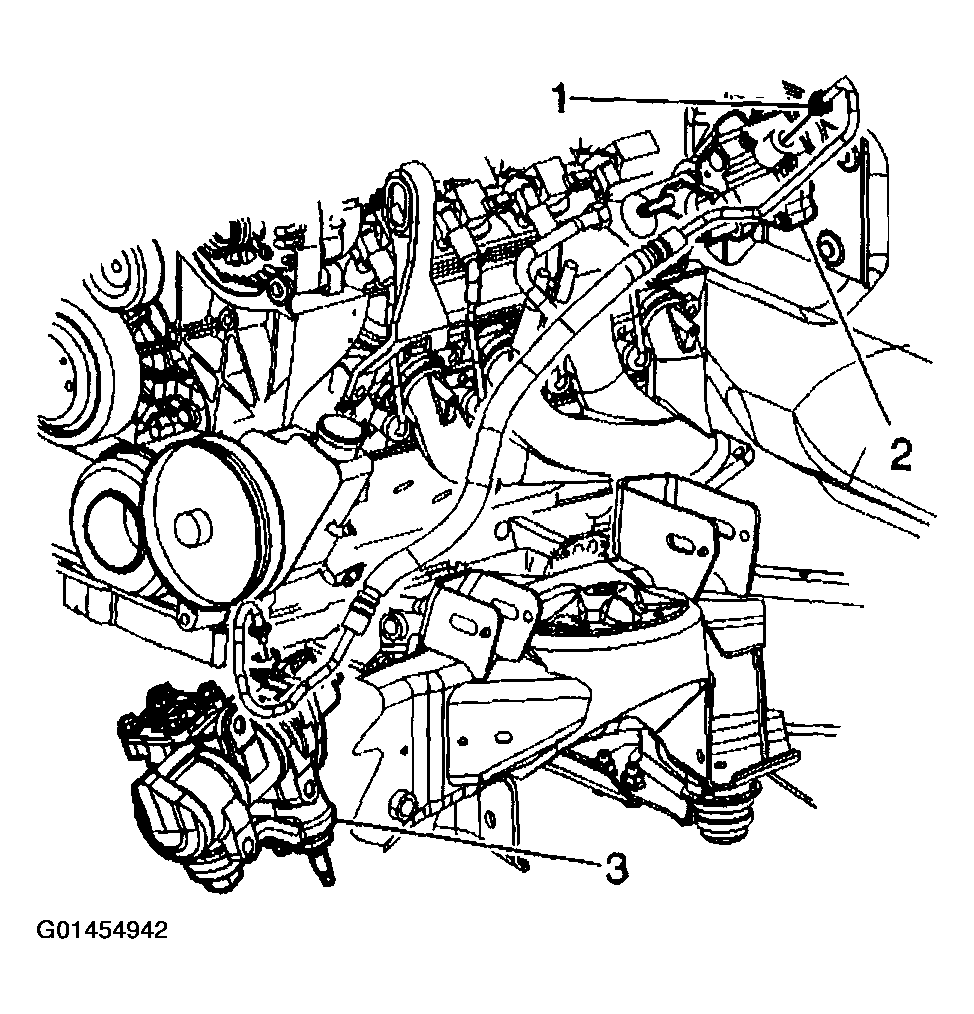

    Fig 1: Removing Power Steering Gear Inlet Hose
    G01454942Courtesy of GENERAL MOTORS CORP.
