Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grille. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) in EXTERIOR TRIM .
    NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE in Cautions and Notices.
  2. Remove the clamp retaining the power steering outlet hose (3) from the power steering gear (4).
  3. Remove the clamp retaining the power steering inlet hose from the power steering pump (5).

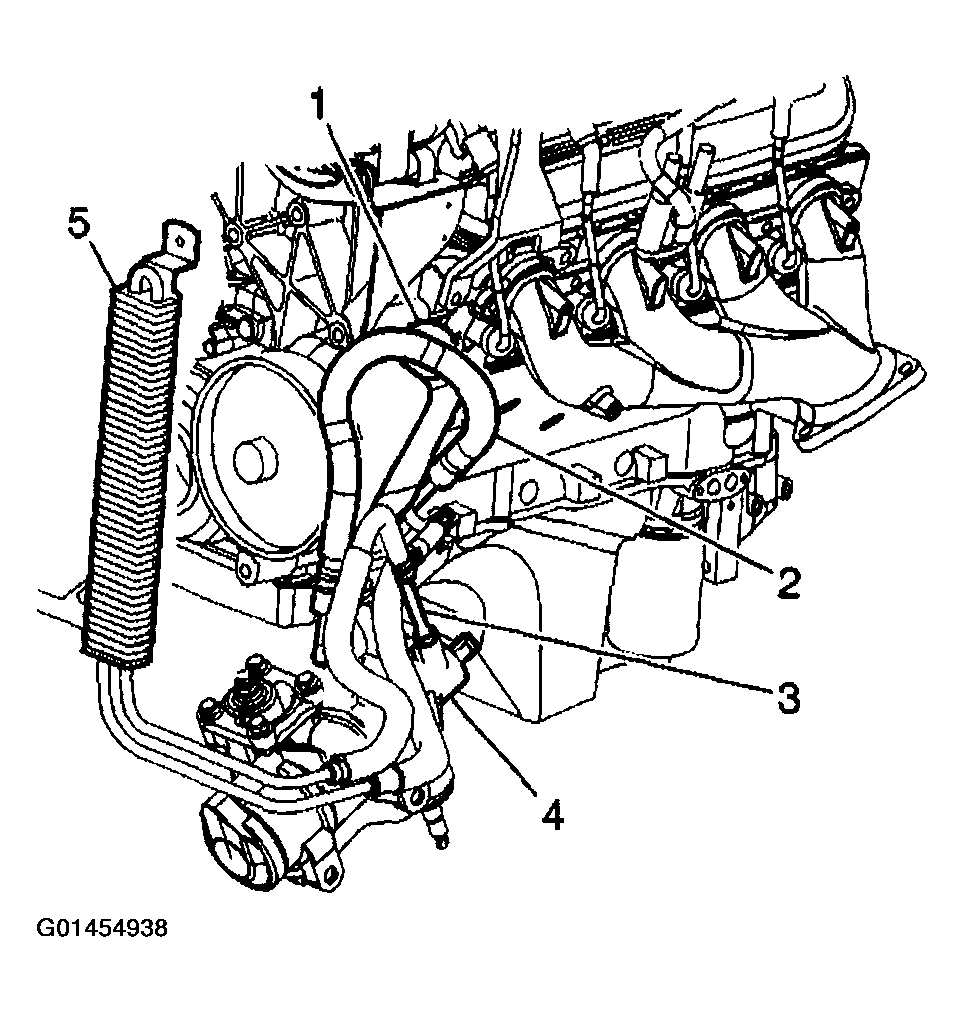

    Fig 1: Removing Power Steering Inlet Hose From Power Steering Pump
    G01454938Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts (2) retaining the power steering cooler from the radiator support.
  5. Remove the power steering cooler from the vehicle.

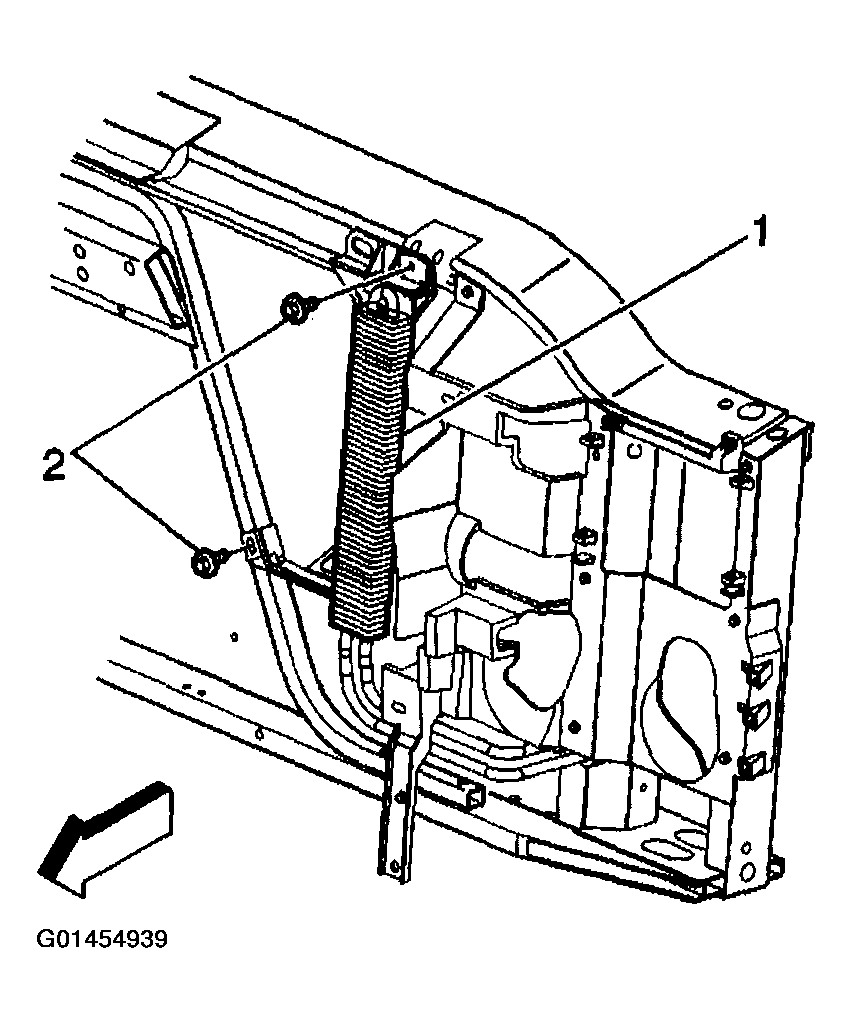

    Fig 2: Removing Power Steering Cooler From Radiator Support
    G01454939Courtesy of GENERAL MOTORS CORP.
