Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the power steering cooler (1) to the vehicle.

    Tighten

    Tighten the power steering cooler retaining bolts to 5 N.m (44 lb in).

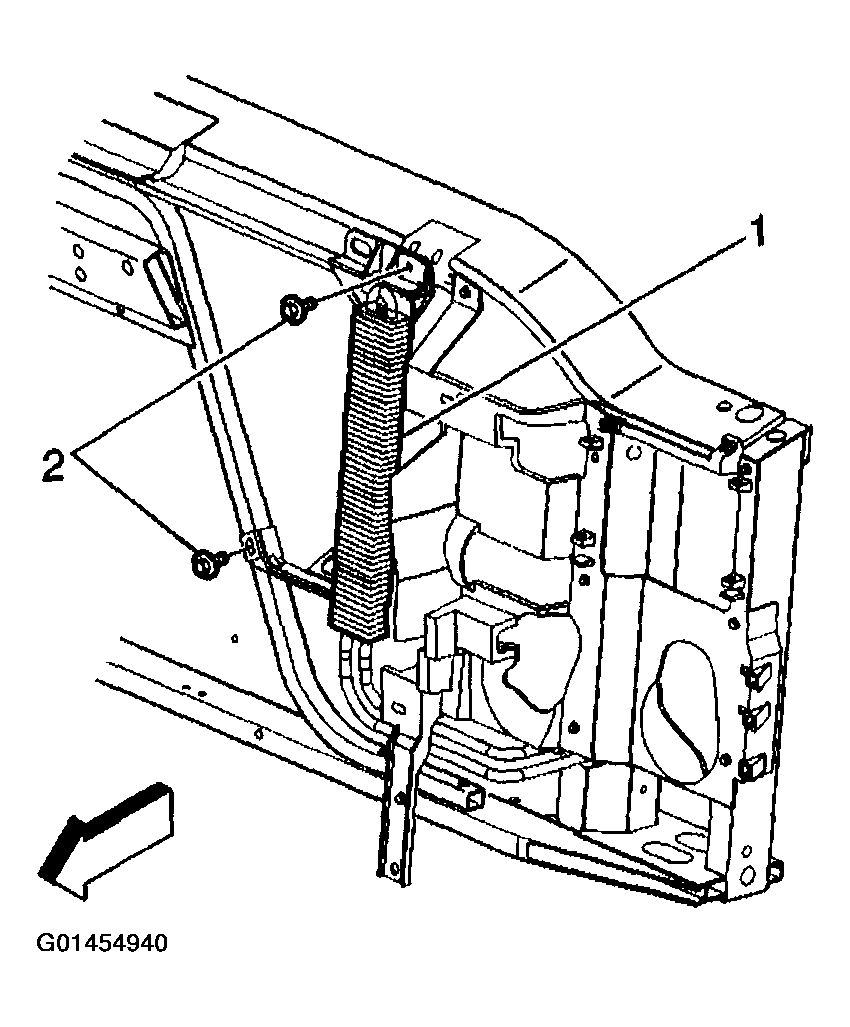

    Fig 1: Installing Power Steering Cooler To Radiator Support
    G01454940Courtesy of GENERAL MOTORS CORP.
  2. Connect the power steering outlet hose (3) to the power steering gear (4).
  3. Install the retaining clamp.
  4. Connect the power steering inlet hose to the power steering pump.
  5. Install the retaining clamp.
  6. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM  .
  7. Inspect all the hose connections for leaks.
  8. Install the front grille. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) in EXTERIOR TRIM .

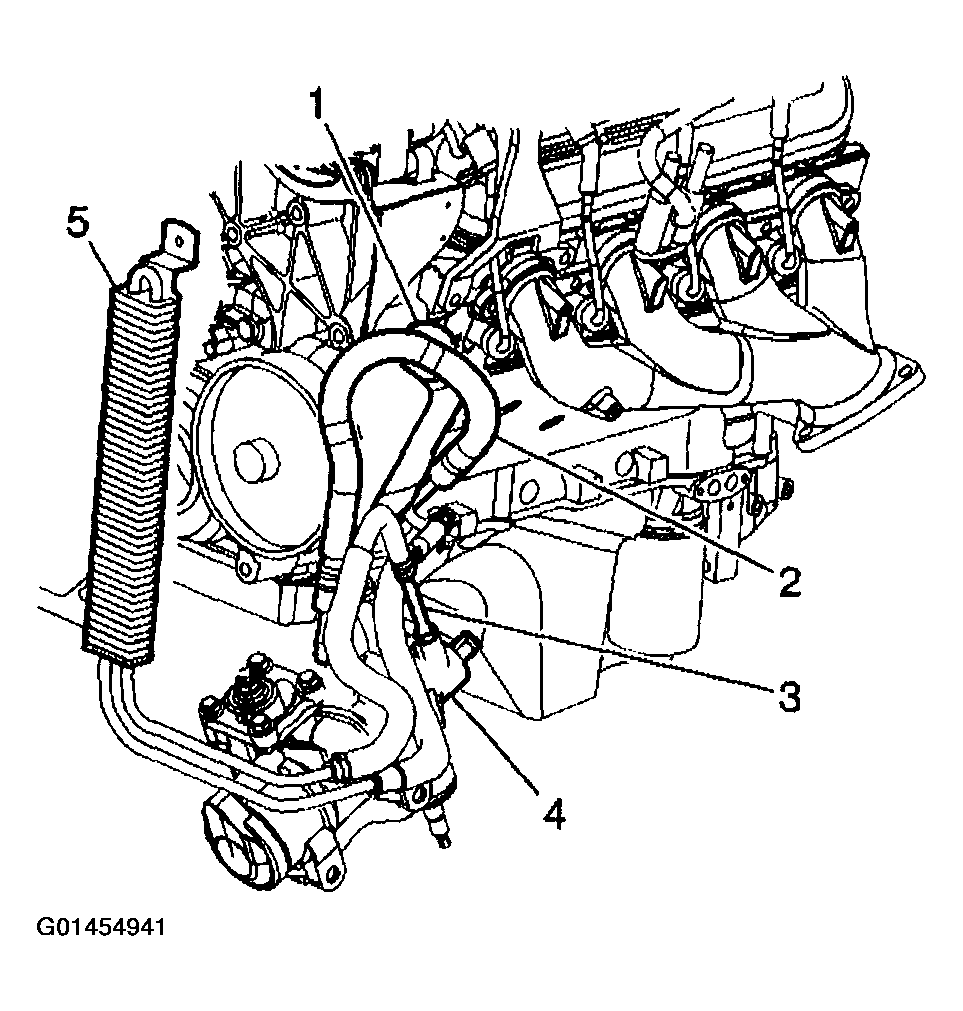

    Fig 2: Connecting Power Steering Inlet Hose To Power Steering Pump
    G01454941Courtesy of GENERAL MOTORS CORP.
