Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the power steering cooler (1) to the radiator support.

    Tighten

    Tighten the bolts retaining the power steering cooler to 5 N.m (44 lb in).

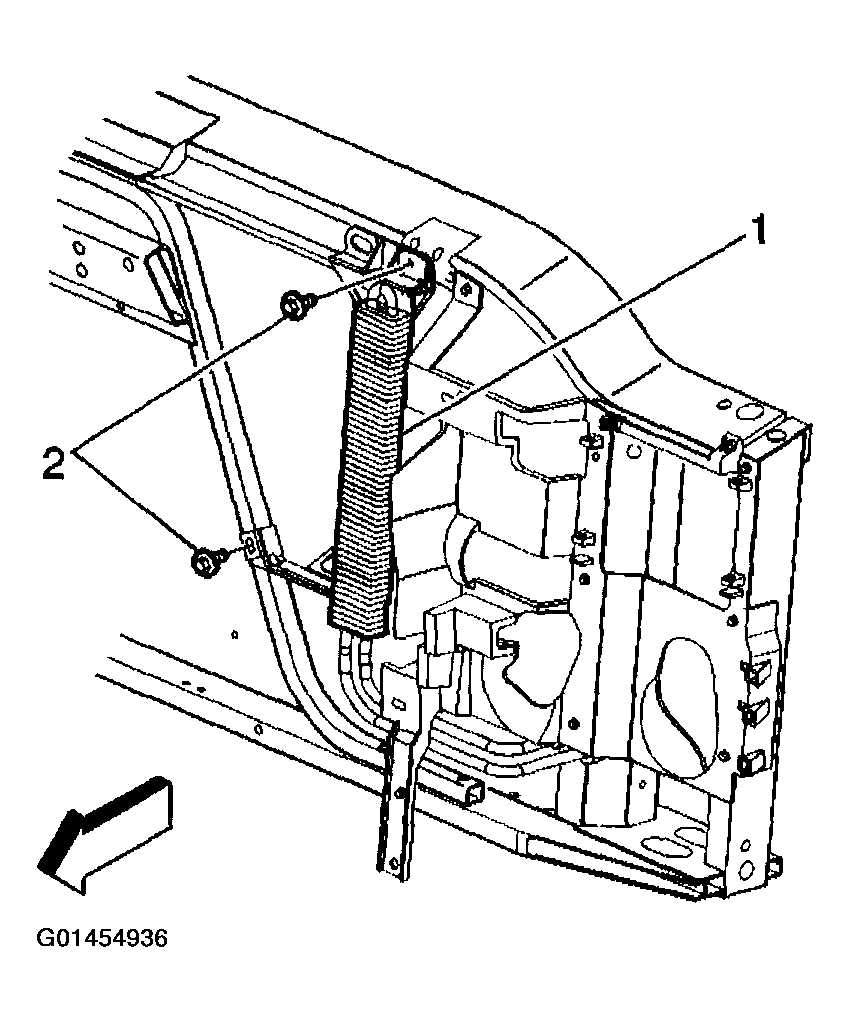

    Fig 1: Installing Power Steering Cooler To Radiator Support
    G01454936Courtesy of GENERAL MOTORS CORP.
  2. Install the power steering cooler outlet hose (3) to the power steering pump (2).
  3. Install the retaining clamp.
  4. Install the power steering inlet hose (5) to the power steering gear (1).
  5. Install the retaining clamp.
  6. Fill and bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM  .
  7. Inspect all the hose connections for leaks.
  8. Install the front grille. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) in EXTERIOR TRIM .

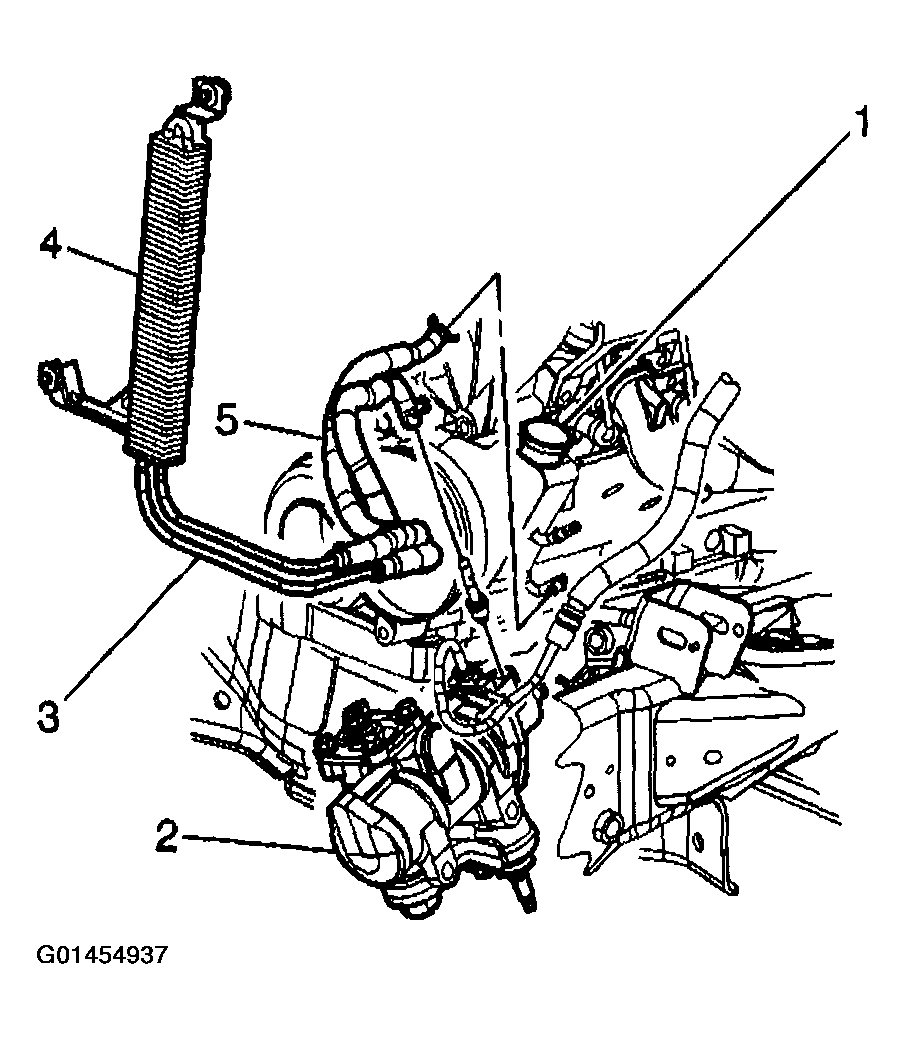

    Fig 2: Installing Power Steering Cooler Outlet Hose To Power Steering Pump
    G01454937Courtesy of GENERAL MOTORS CORP.
