Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE in Cautions and Notices.
  1. Install a drain pan under the vehicle.
  2. Remove the brake booster outlet hose (1) from the brake booster (2).
  3. Remove the clamp retaining the brake booster outlet hose to the power steering pump.
  4. Remove the brake booster outlet hose from the vehicle.

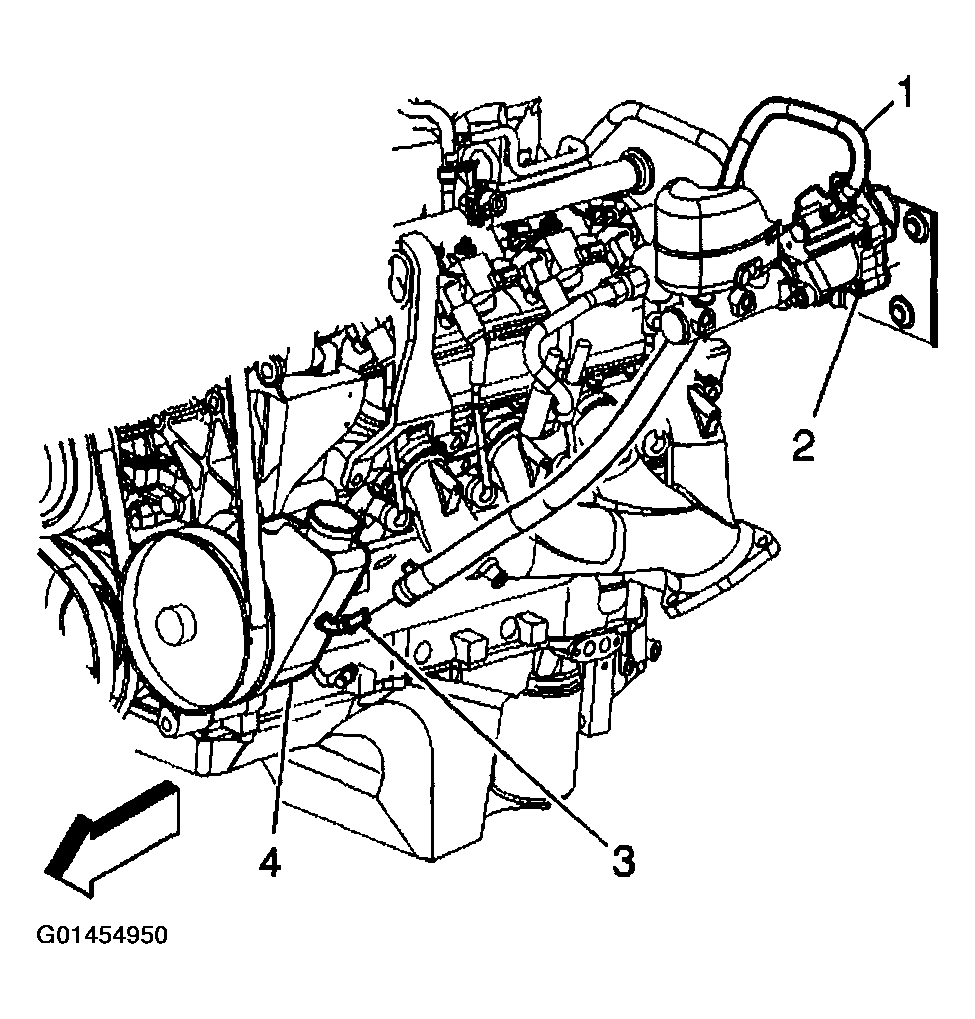

    Fig 1: Removing Brake Booster Outlet Hose
    G01454950Courtesy of GENERAL MOTORS CORP.
