Assembly Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

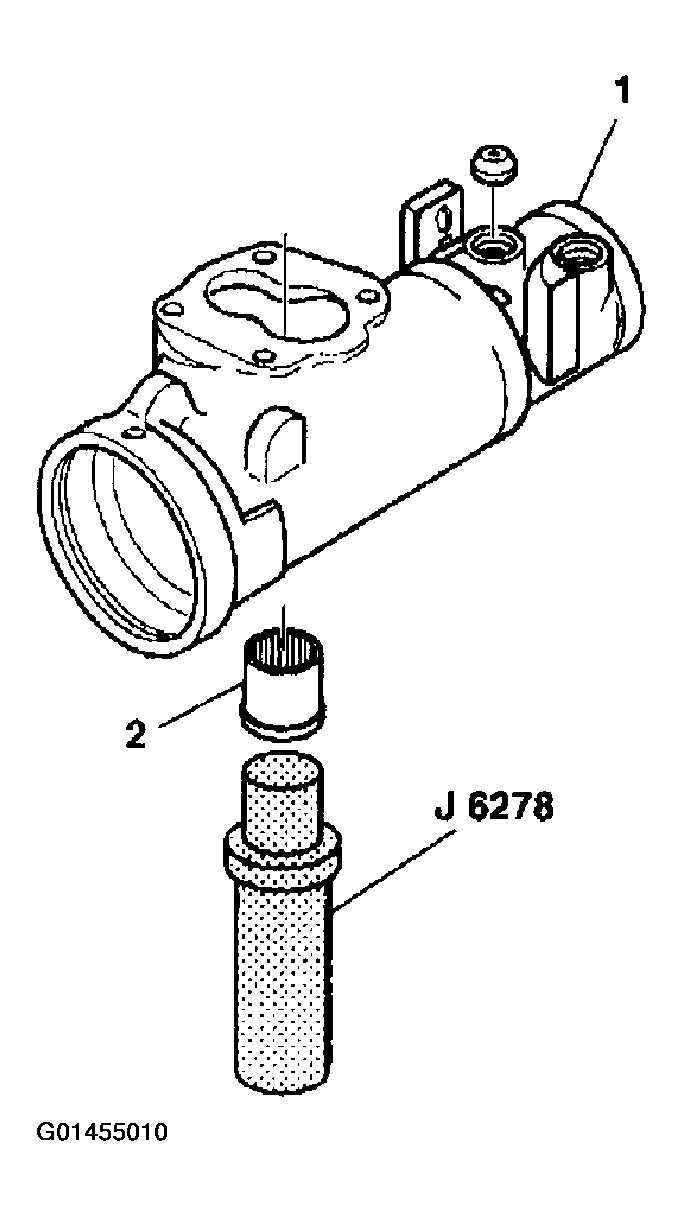

- Install the needle bearing (2) to the steering gear housing (1) using the J 6278 .
- Coat the double lip seal (2) and the washer (3) with grease.
- Install the double lip seal (2).
- Install the backup washer (3).
- Install the retaining ring using the J 4245
.
Important: Do not install the lock washer and nut until complete installation of the pitman arm and its components have been installed. Do not adjust the pitman shaft until all components have been installed on the steering gear housing.
- Install the pitman shaft and the side cover. Refer to STEERING GEAR PITMAN SHAFT AND HOUSING COVER REPLACEMENT - OFF VEHICLE (670 GEAR) or STEERING GEAR PITMAN SHAFT AND HOUSING COVER REPLACEMENT - OFF VEHICLE (700 GEAR) .

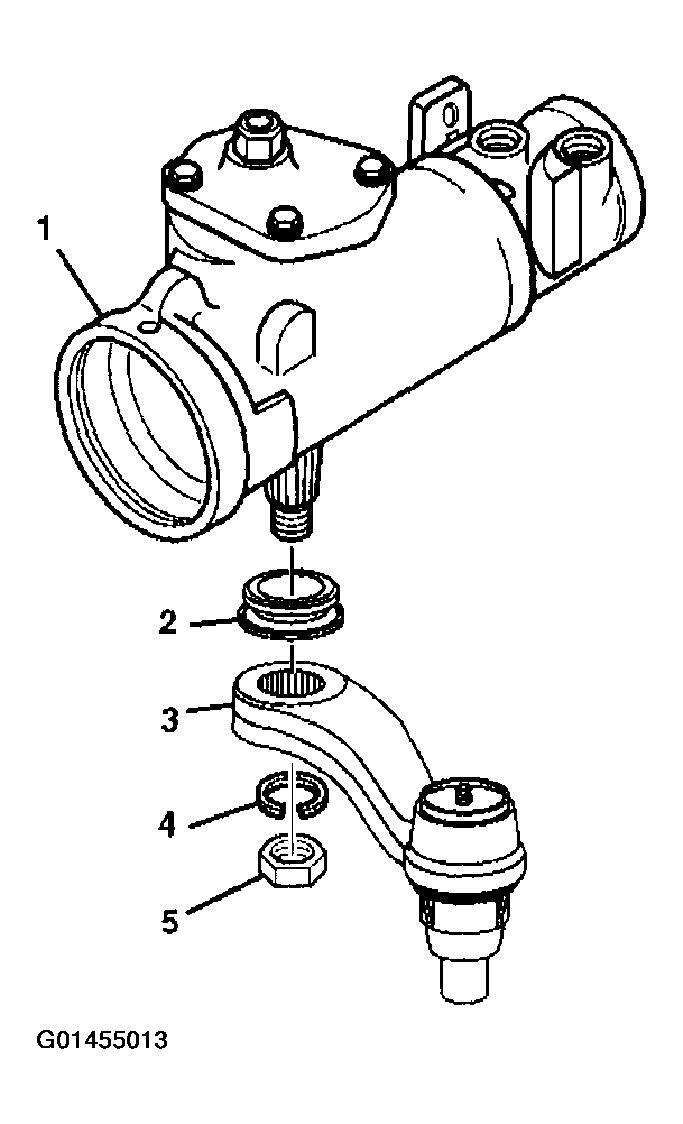

- Install the dust seal (1).
- Install the pitman shaft boot (2).
- Install the pitman arm (3) to the steering gear (1).
- Install the lock washer (4).NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the nut (5).
Tighten
Tighten the pitman arm nut to 250 N.m (184 lb ft).
- Refer to PITMAN SHAFT OVER-CENTER PRELOAD ADJUSTMENT - OFF VEHICLE (670 GEAR) or PITMAN SHAFT OVER-CENTER PRELOAD ADJUSTMENT - OFF VEHICLE (700 GEAR) to adjust the pitman shaft.
