Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module assembly. Refer to HVAC MODULE ASSEMBLY REPLACEMENT .
  2. Remove the screws from the evaporator core cover (1).
  3. Remove the evaporator core cover (1) from the HVAC module assembly (2).

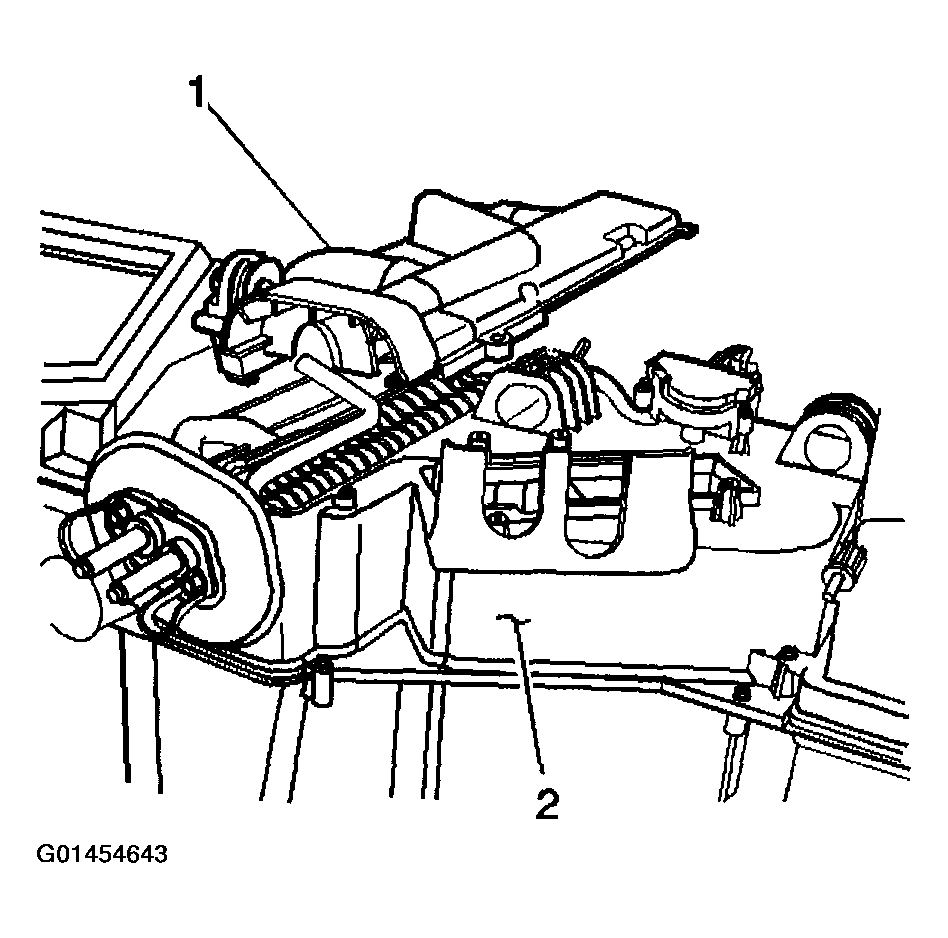

    Fig 1: Removing Evaporator Core Cover From HVAC Module Assembly
    G01454643Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws from the recirculation actuator (1).
  5. Remove the recirculation actuator (1) from the HVAC module assembly (2).

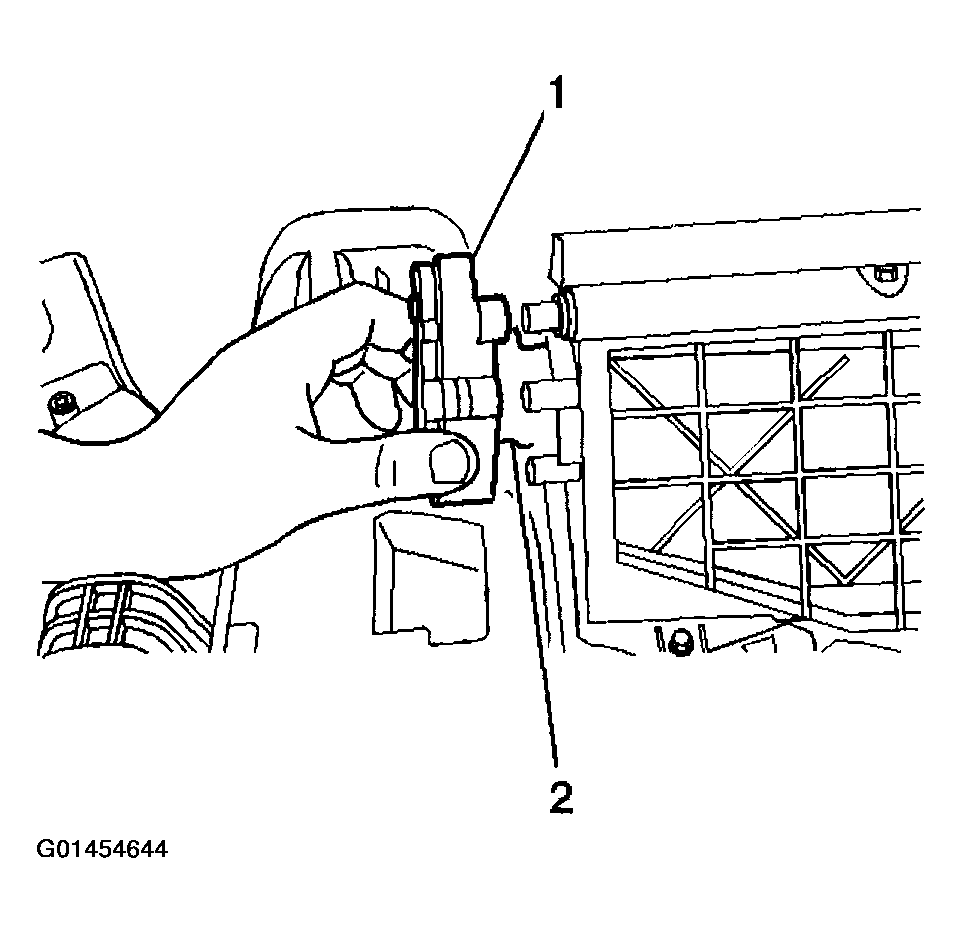

    Fig 2: Removing Recirculation Actuator From HVAC Module Assembly
    G01454644Courtesy of GENERAL MOTORS CORP.
