Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push pin (5) from the HVAC module (2).
  2. Remove the left floor duct (1) from the HVAC module (2).

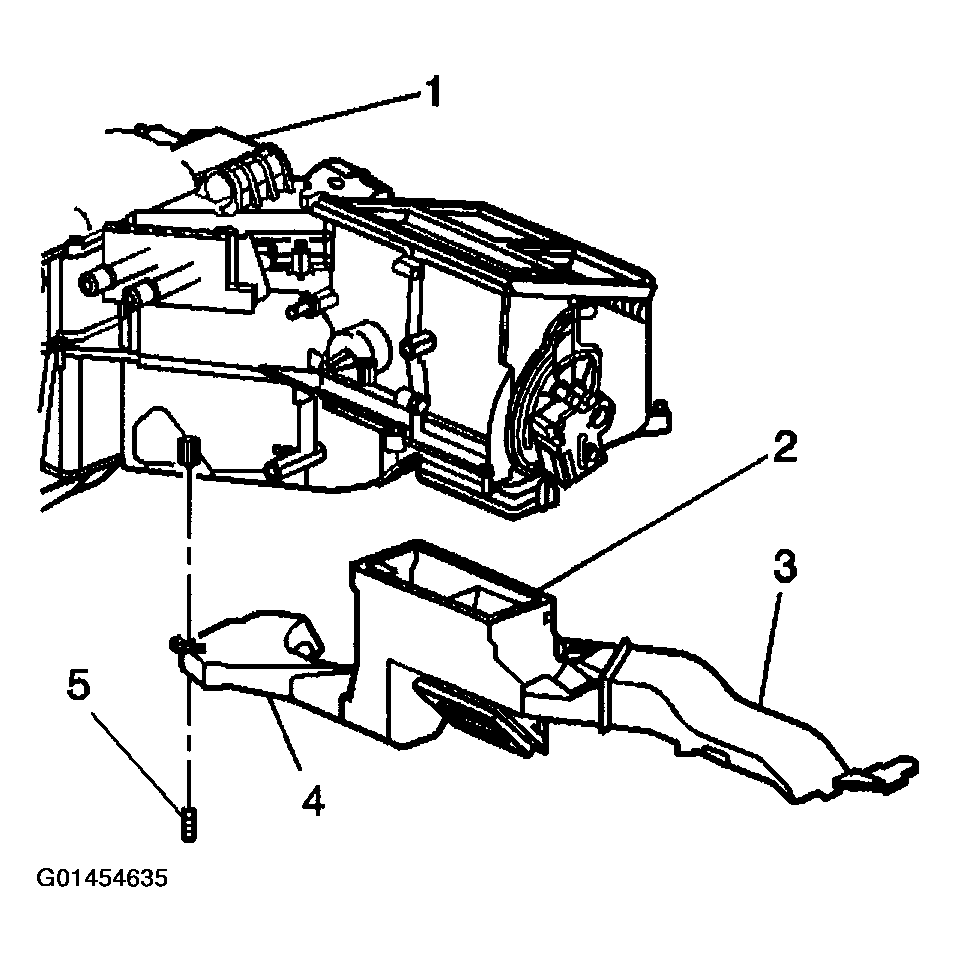

    Fig 1: Removing Left Floor Duct From HVAC Module
    G01454635Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector (3) from the mode actuator (4).
  4. Remove the screws from the mode actuator (4).
  5. Remove the mode actuator (4) from the HVAC module (1).
  6. Remove the cam (2) from the HVAC module (1).

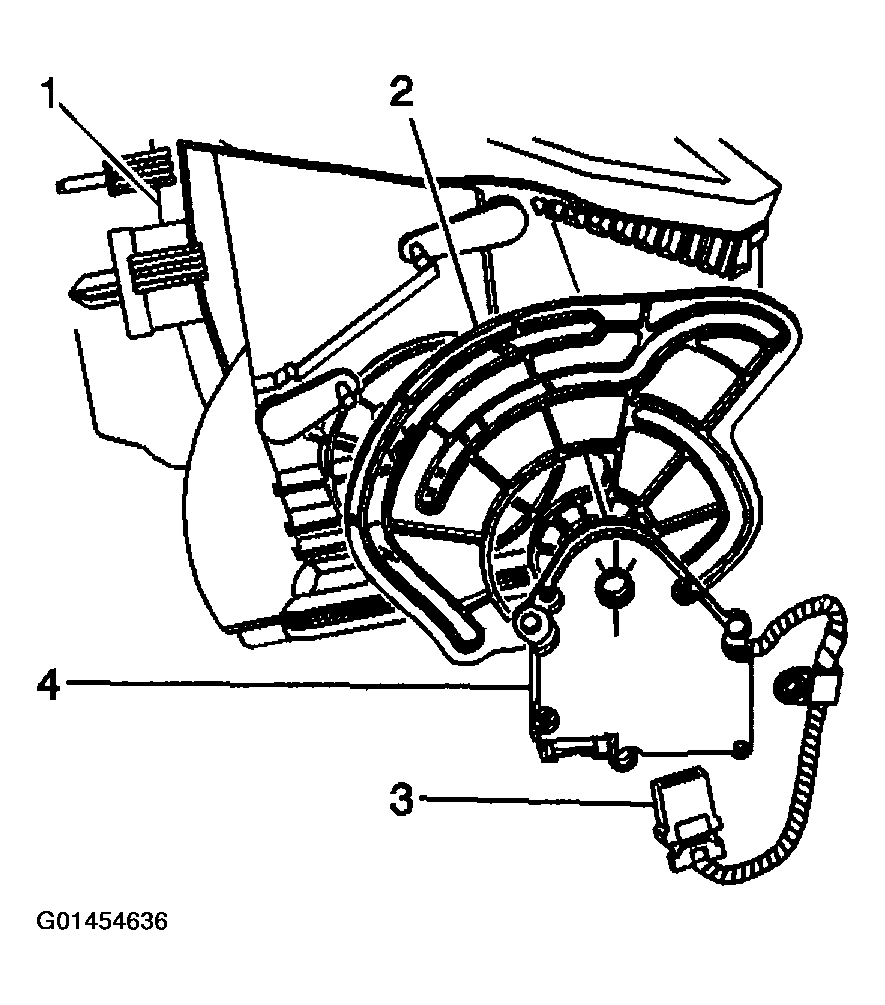

    Fig 2: Disconnecting Electrical Connector From Mode Actuator
    G01454636Courtesy of GENERAL MOTORS CORP.
