Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cam (2) to the HVAC module (1).
  2. Install the mode actuator (4) to the HVAC module (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to the mode actuator (4).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Connect the electrical connector (3) to the mode actuator (4).

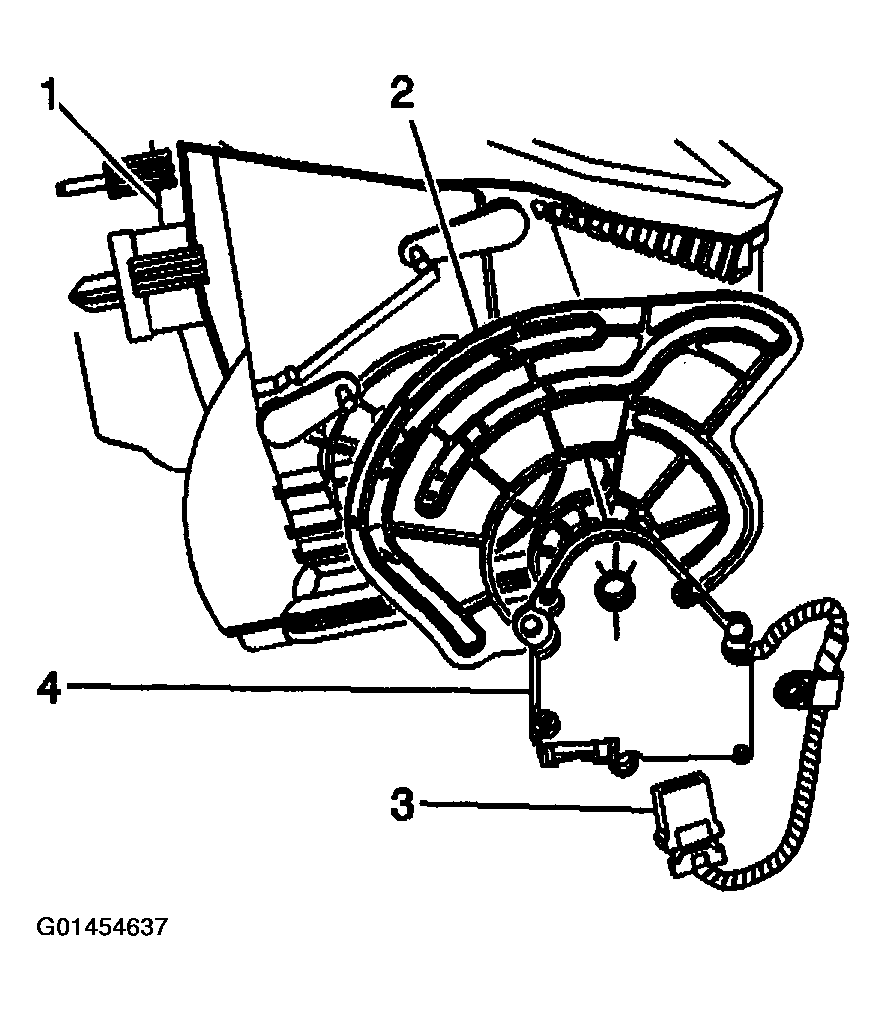

    Fig 1: Connecting Electrical Connector To Mode Actuator
    G01454637Courtesy of GENERAL MOTORS CORP.
  5. Install the left floor air outlet duct (1) to the HVAC module (2).
  6. Install the push pin (5) to the HVAC module (2).
  7. Reprogram the Right air temperature actuator. Refer to RE-CALIBRATING ACTUATORS  .

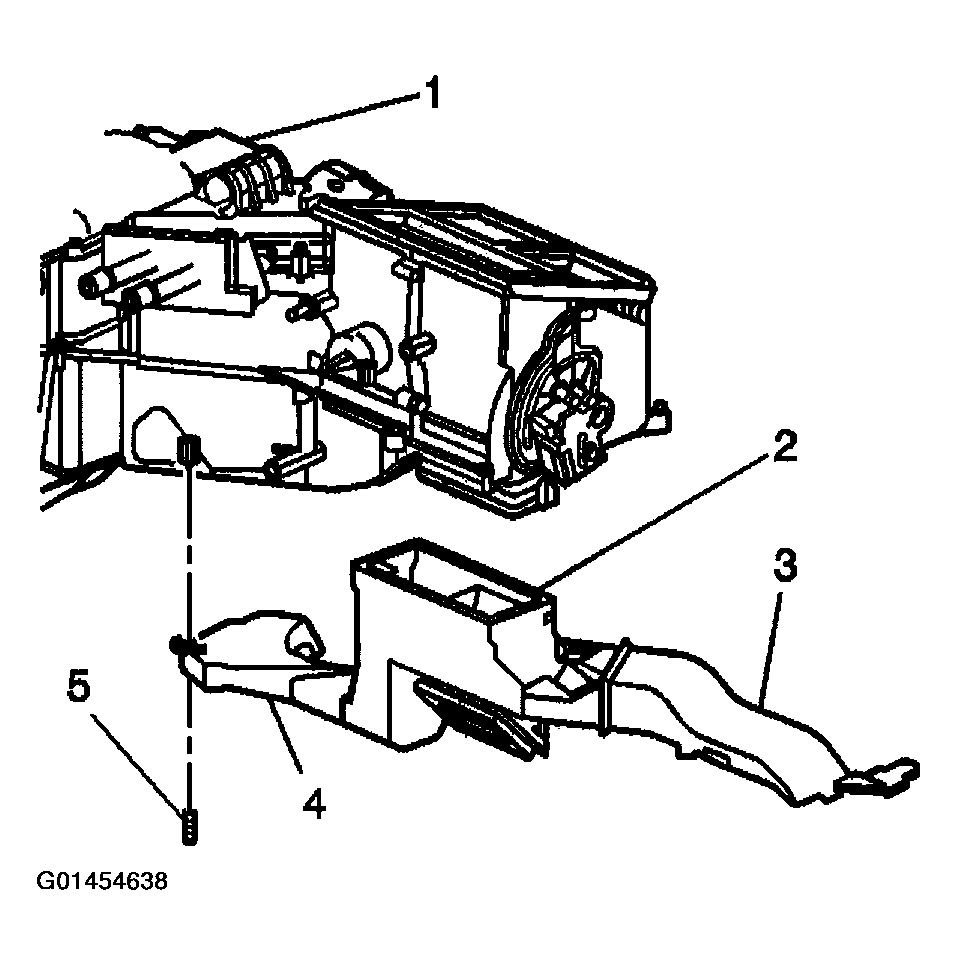

    Fig 2: Installing Left Floor Duct To HVAC Module
    G01454638Courtesy of GENERAL MOTORS CORP.
