Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Remove the auxiliary rear HVAC control assembly. Refer to HVAC CONTROL ASSEMBLY REPLACEMENT - REAR AUXILIARY .

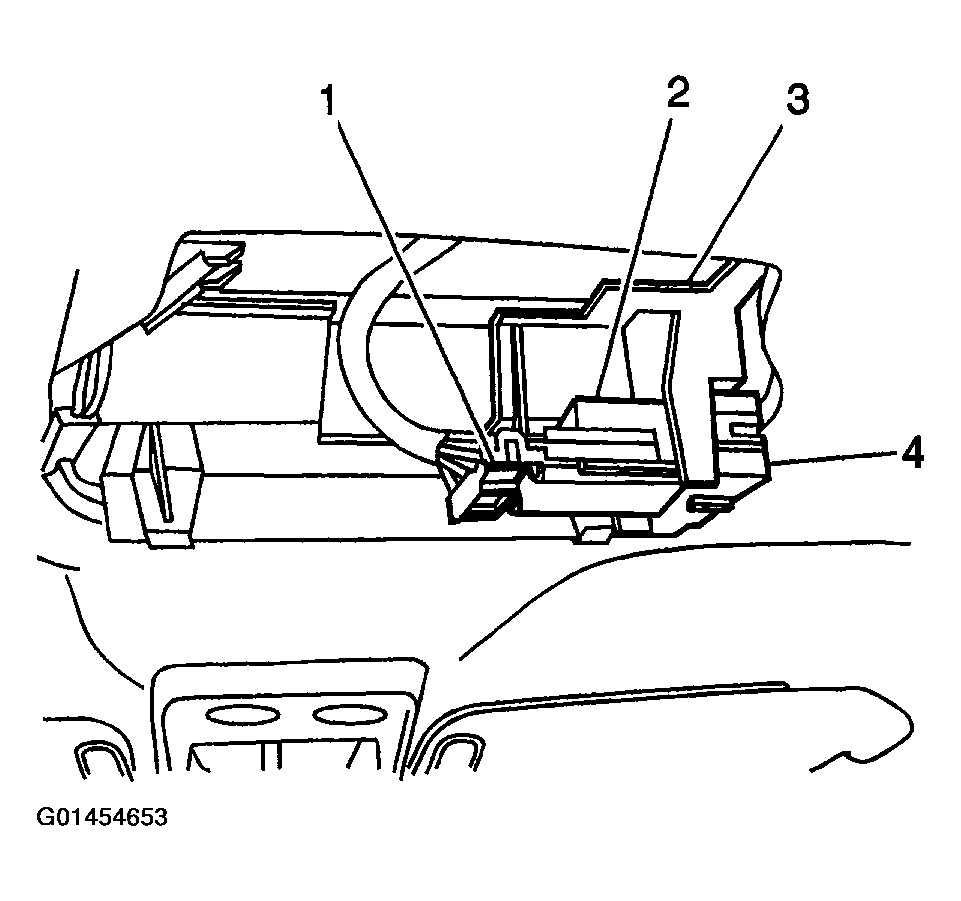

Remove the auxiliary HVAC control processor (2) from the bracket (3).

Fig 1: Removing Auxiliary HVAC Control Processor From Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the cover from the auxiliary HVAC control processor (2).

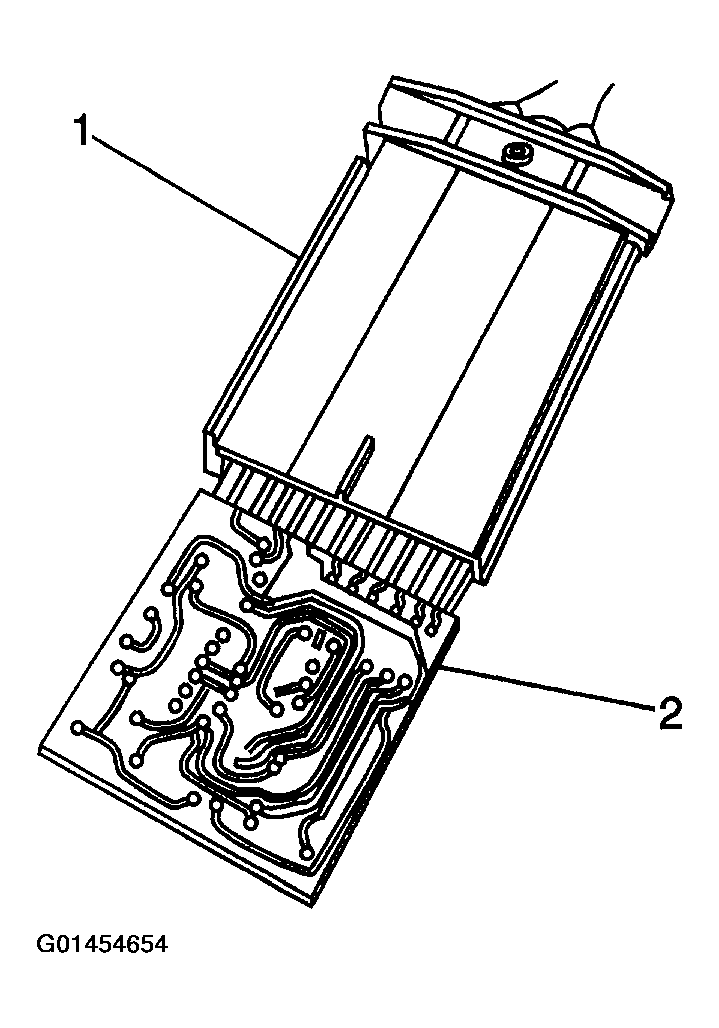

Remove the auxiliary HVAC control processor (2) from the box (1).

Fig 2: Removing Auxiliary HVAC Control Processor From Box
Courtesy of GENERAL MOTORS CORP.
