Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Separate the front of the overhead console (1) from the headliner.
Push the assembly rearward and pull down in order to access the retaining tabs.
Remove the auxiliary HVAC control assembly (2) by releasing the tabs at the rear of the control and push out from the rear.
Disconnect the electrical connector (3).

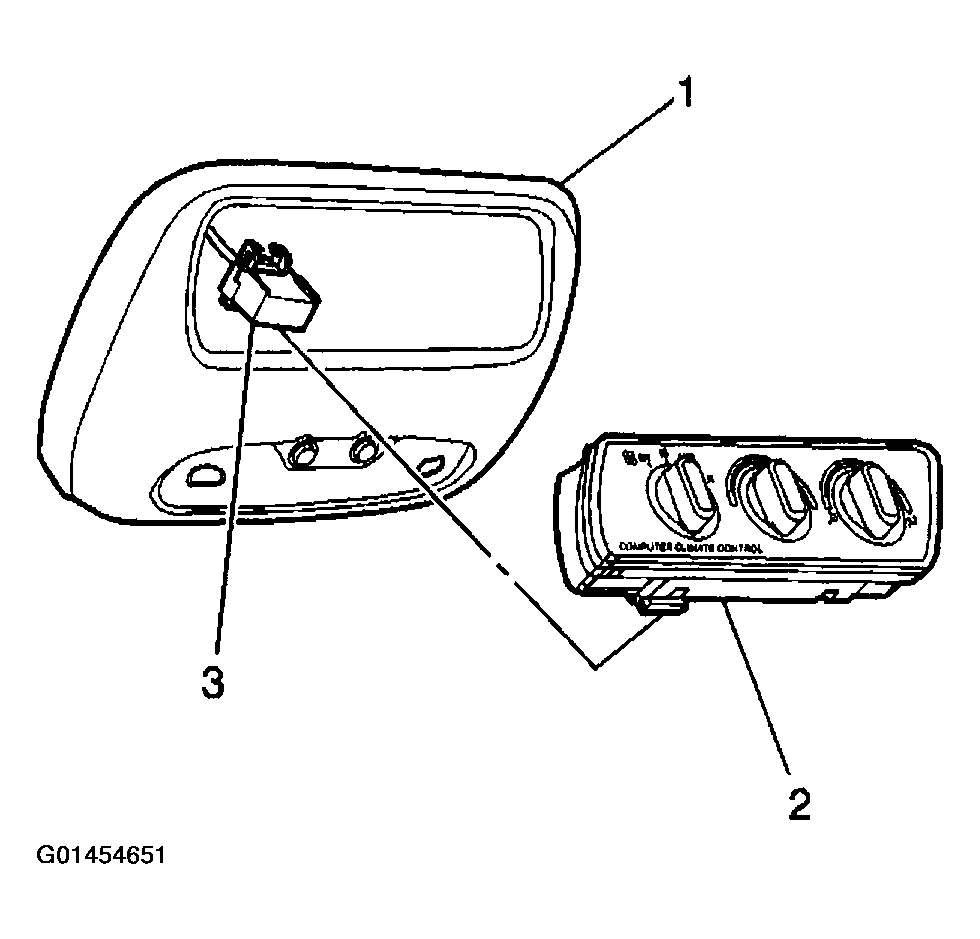

Fig 1: Removing HVAC Control Assembly - Rear Auxiliary
Courtesy of GENERAL MOTORS CORP.
