Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector (3).
  2. Install the auxiliary HVAC control assembly (2) to the console (1).
  3. Install the overhead console (1) to the headliner.

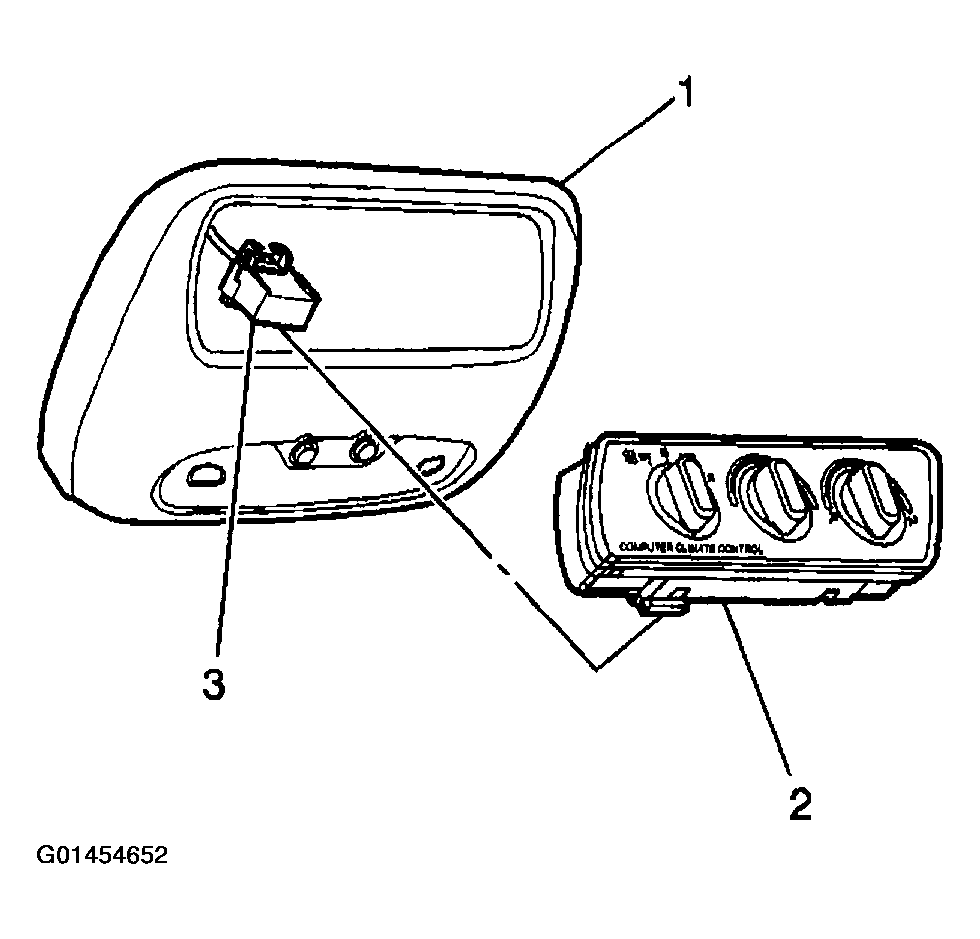

    Fig 1: Installing HVAC Control Assembly - Rear Auxiliary
    G01454652Courtesy of GENERAL MOTORS CORP.
