Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console screw.
  2. Remove the overhead console from the headliner.
  3. Disconnect the electrical connectors from the auxiliary HVAC control assembly.
  4. Remove the overhead console from the vehicle.
  5. Remove the auxiliary HVAC control assembly from the overhead console.

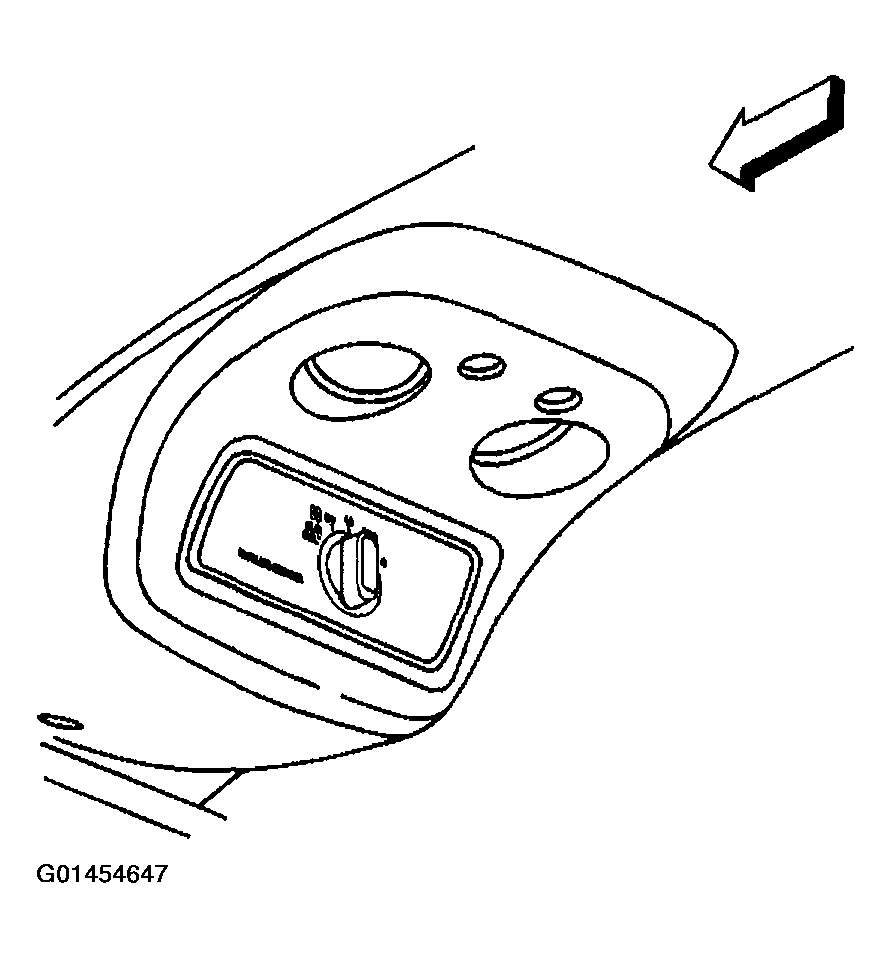

    Fig 1: Removing HVAC Control Assembly - Front Auxiliary (Front Overhead Control A/C Only)
    G01454647Courtesy of GENERAL MOTORS CORP.
