Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P insulator panel. Refer to INSULATOR REPLACEMENT - INSTRUMENT PANEL (I/P) in INSTRUMENT PANEL, GAGES, AND CONSOLE .
  2. Disconnect the electrical connector (1) from the left air temperature actuator (2).
  3. Remove the screws from the left air temperature actuator (2).
  4. Remove the left air temperature actuator (2) from the HVAC module assembly (3).

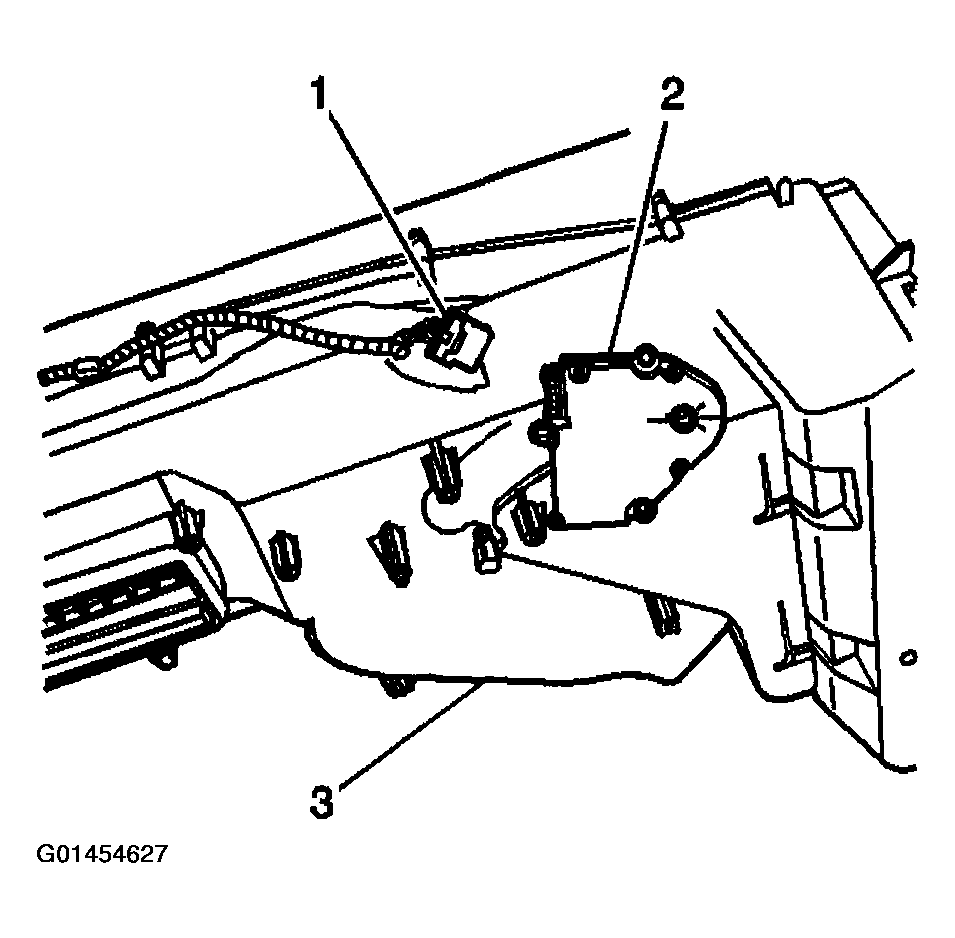

    Fig 1: Removing Air Temperature Actuator - Left
    G01454627Courtesy of GENERAL MOTORS CORP.
