HVAC Connector End Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

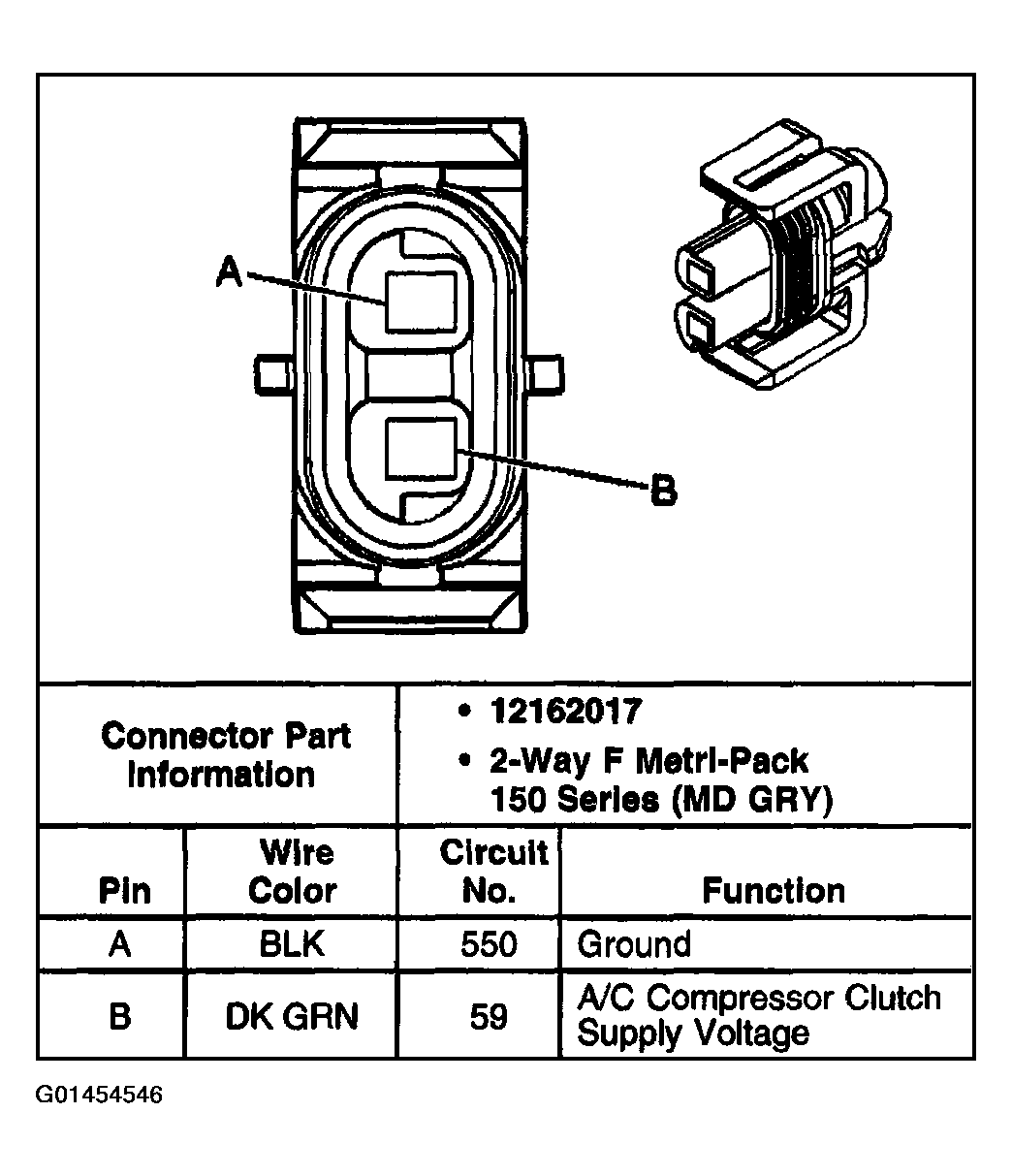

Fig 1: Identifying A/C Compressor Clutch

G01454546

Courtesy of GENERAL MOTORS CORP.

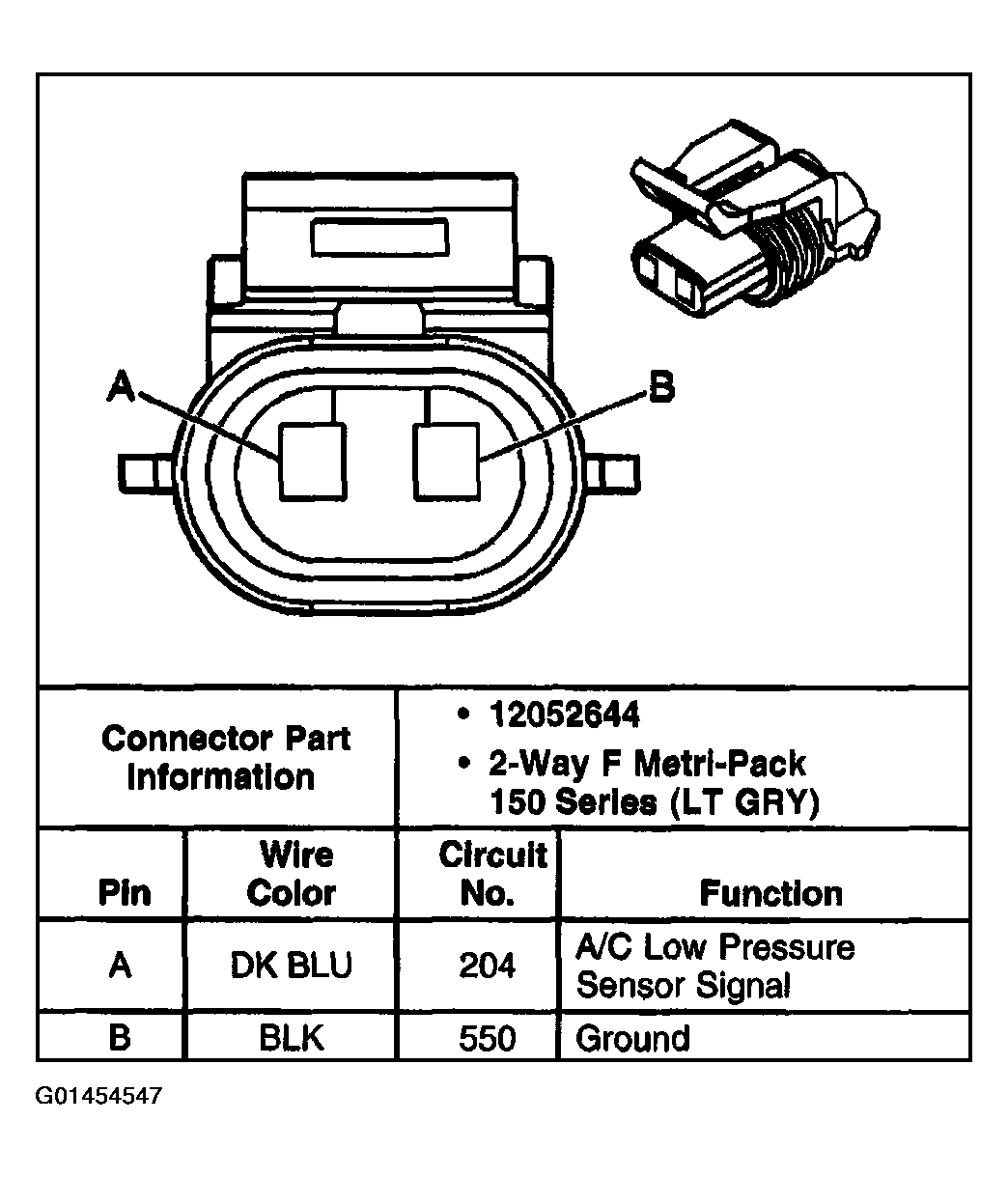

Fig 2: Identifying A/C Low Pressure Switch

G01454547

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying A/C Refrigerant Pressure Sensor

G01454548

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Air Temperature Actuator - Left

G01454549

Courtesy of GENERAL MOTORS CORP.

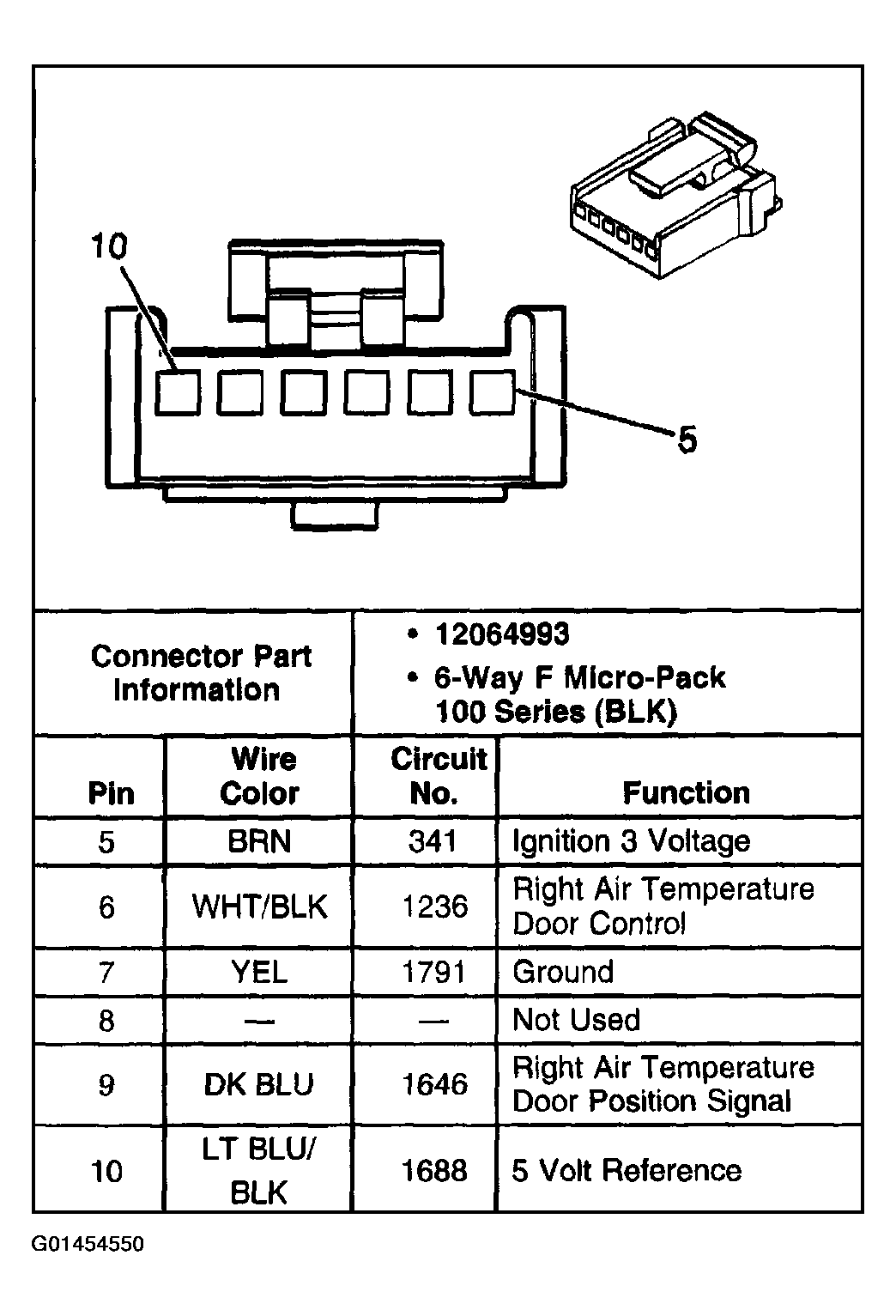

Fig 5: Identifying Air Temperature Actuator - Right

G01454550

Courtesy of GENERAL MOTORS CORP.

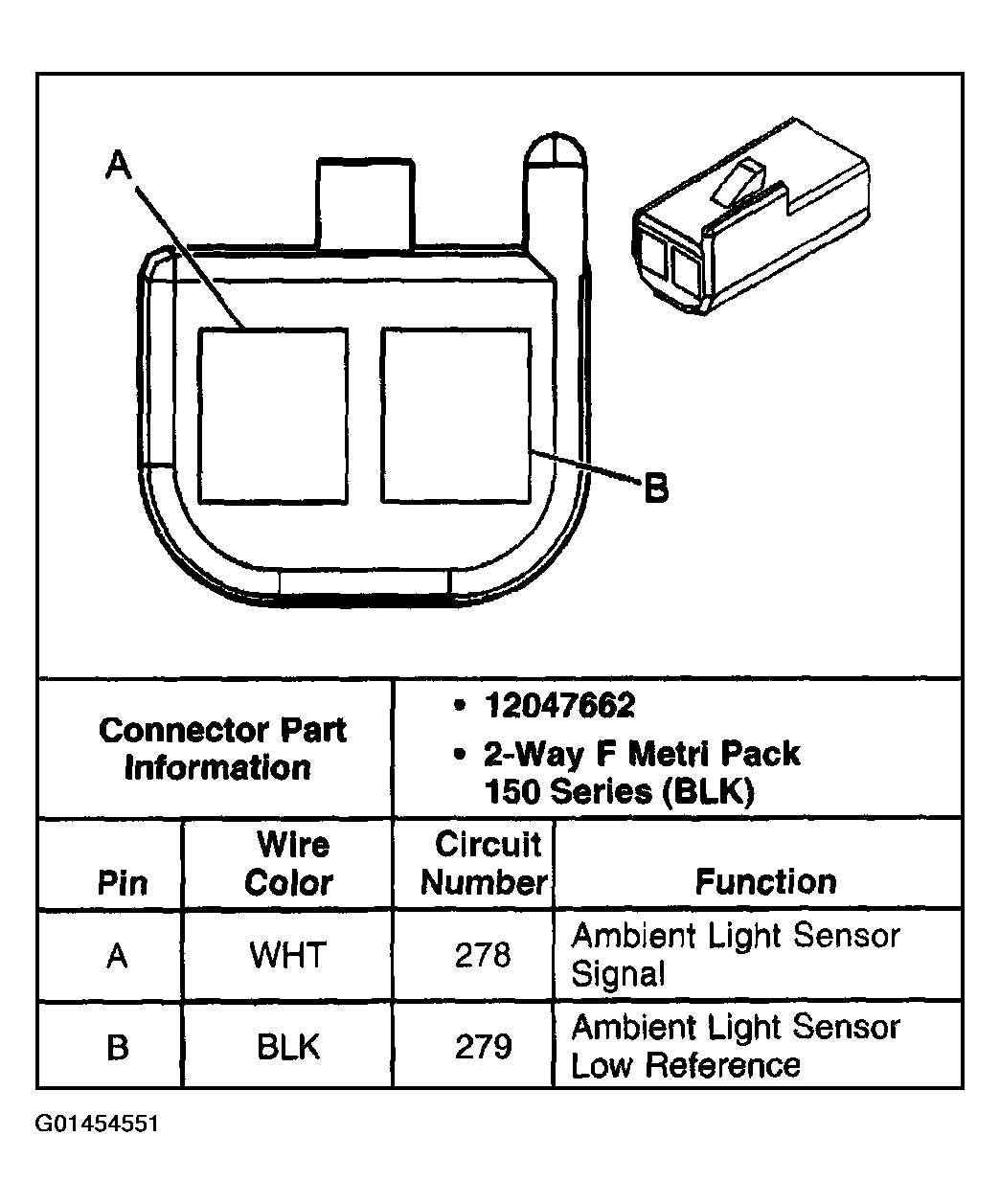

Fig 6: Identifying Ambient Light Sensor

G01454551

Courtesy of GENERAL MOTORS CORP.

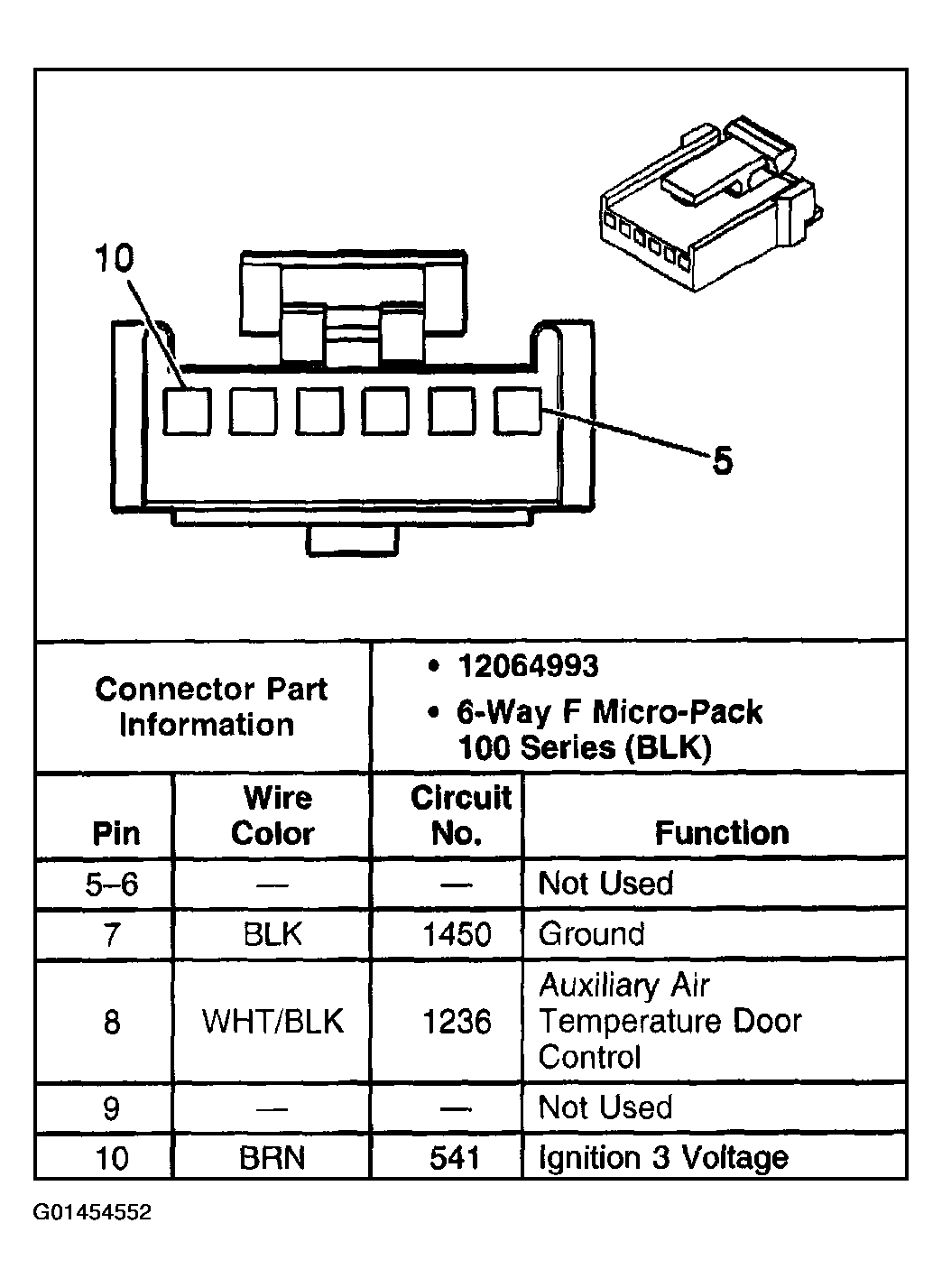

Fig 7: Identifying Auxiliary Temperature Actuator

G01454552

Courtesy of GENERAL MOTORS CORP.

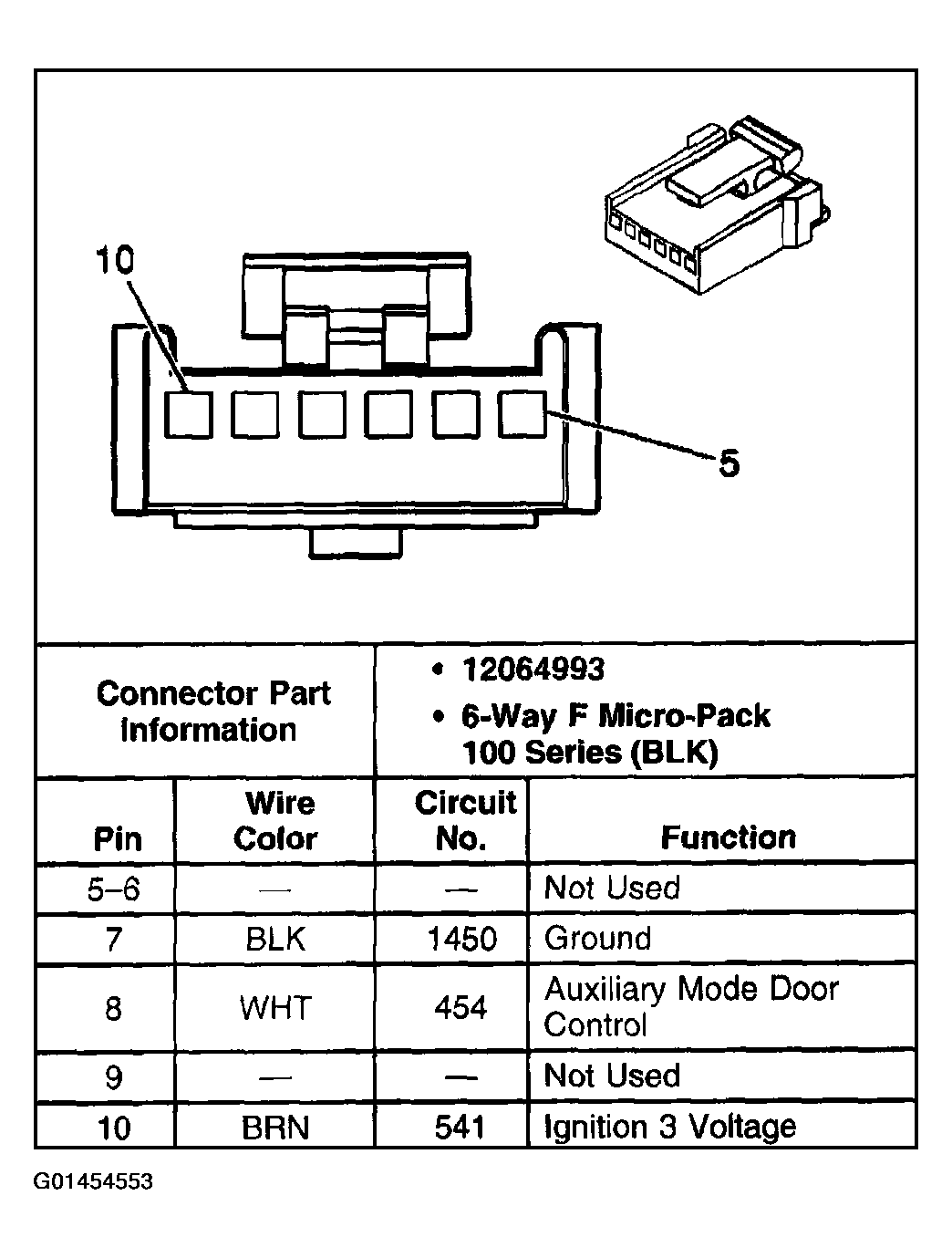

Fig 8: Identifying Auxiliary Mode Actuator

G01454553

Courtesy of GENERAL MOTORS CORP.

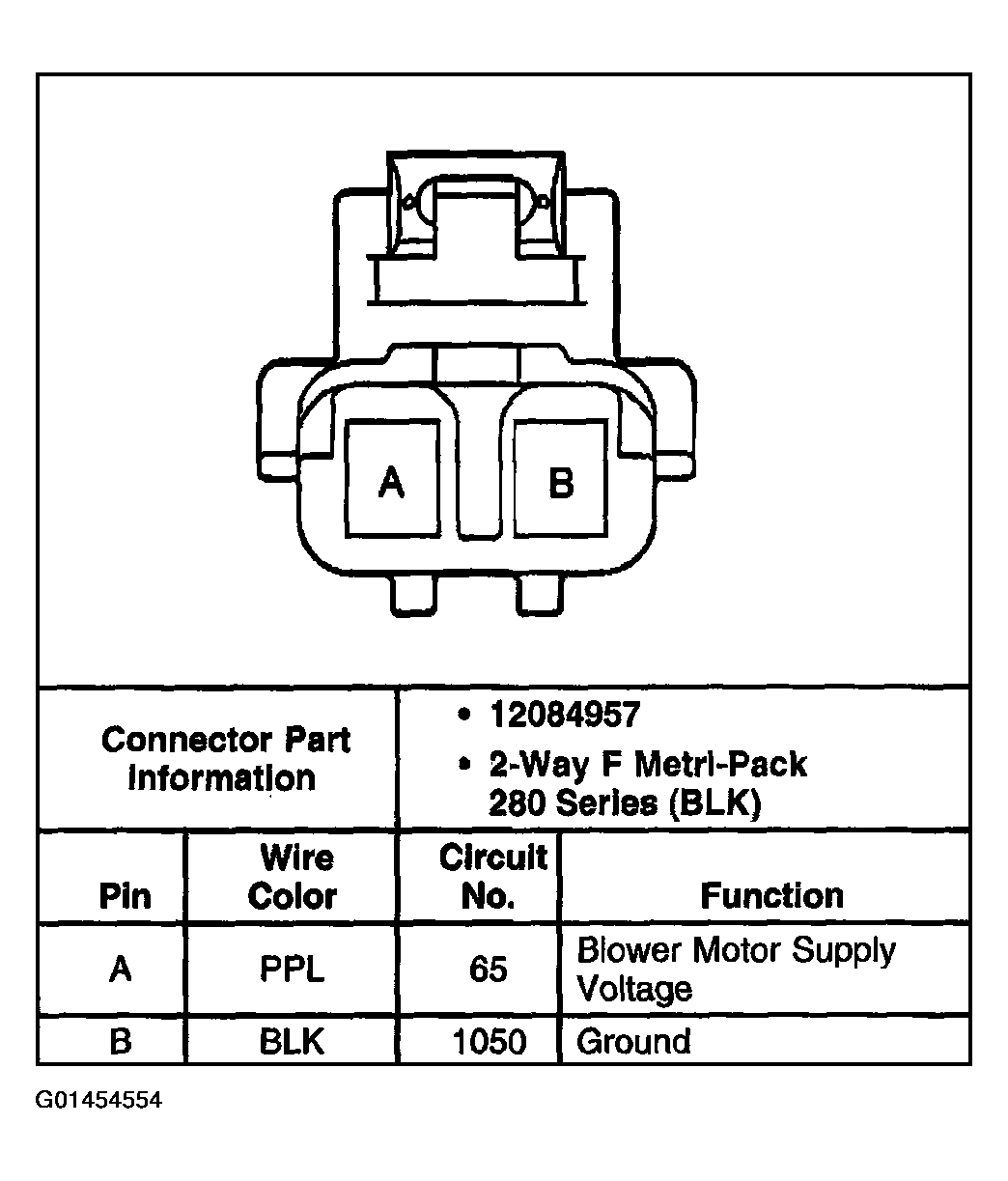

Fig 9: Identifying Blower Motor

G01454554

Courtesy of GENERAL MOTORS CORP.

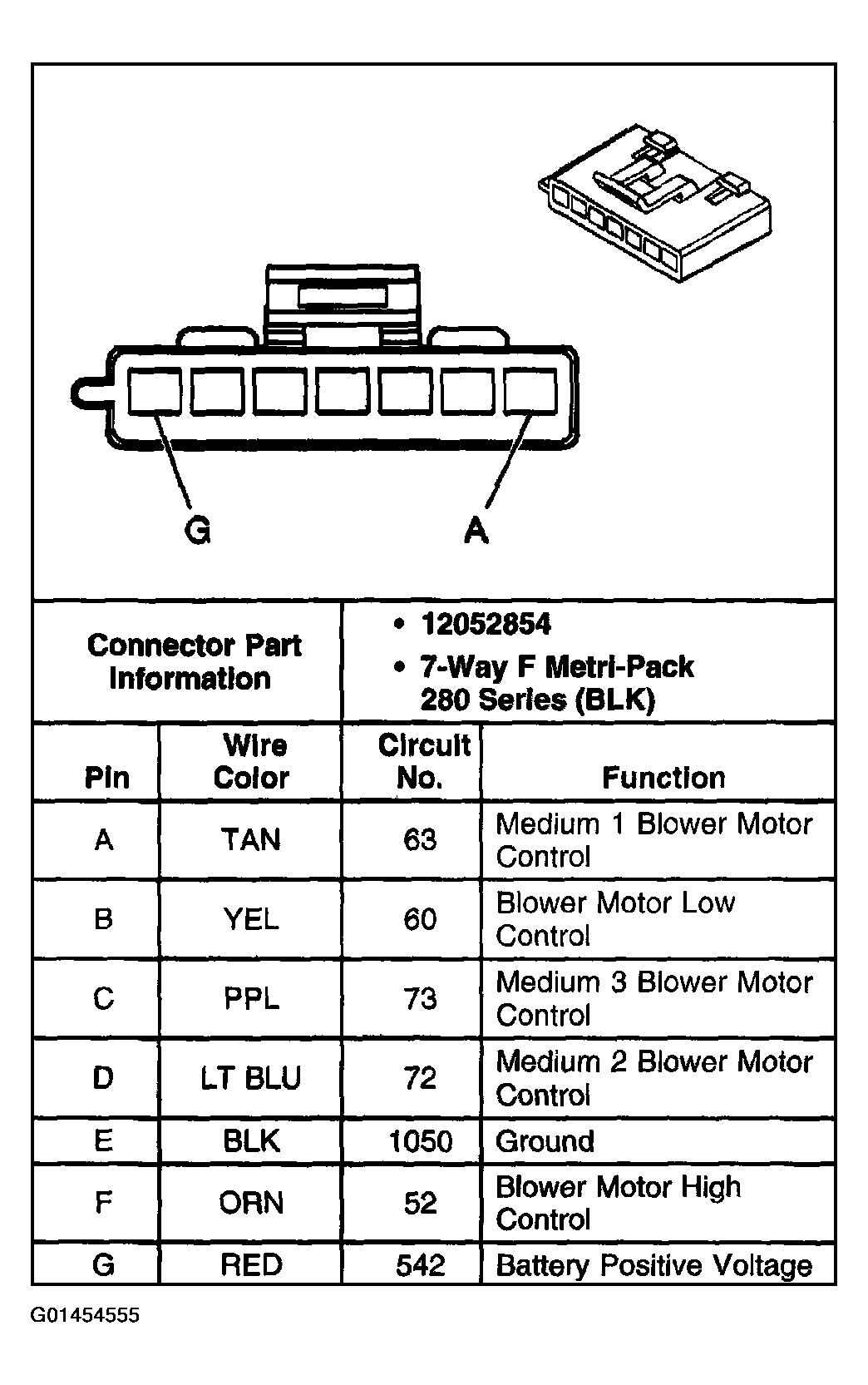

Fig 10: Identifying Blower Motor Resistor Assembly

G01454555

Courtesy of GENERAL MOTORS CORP.

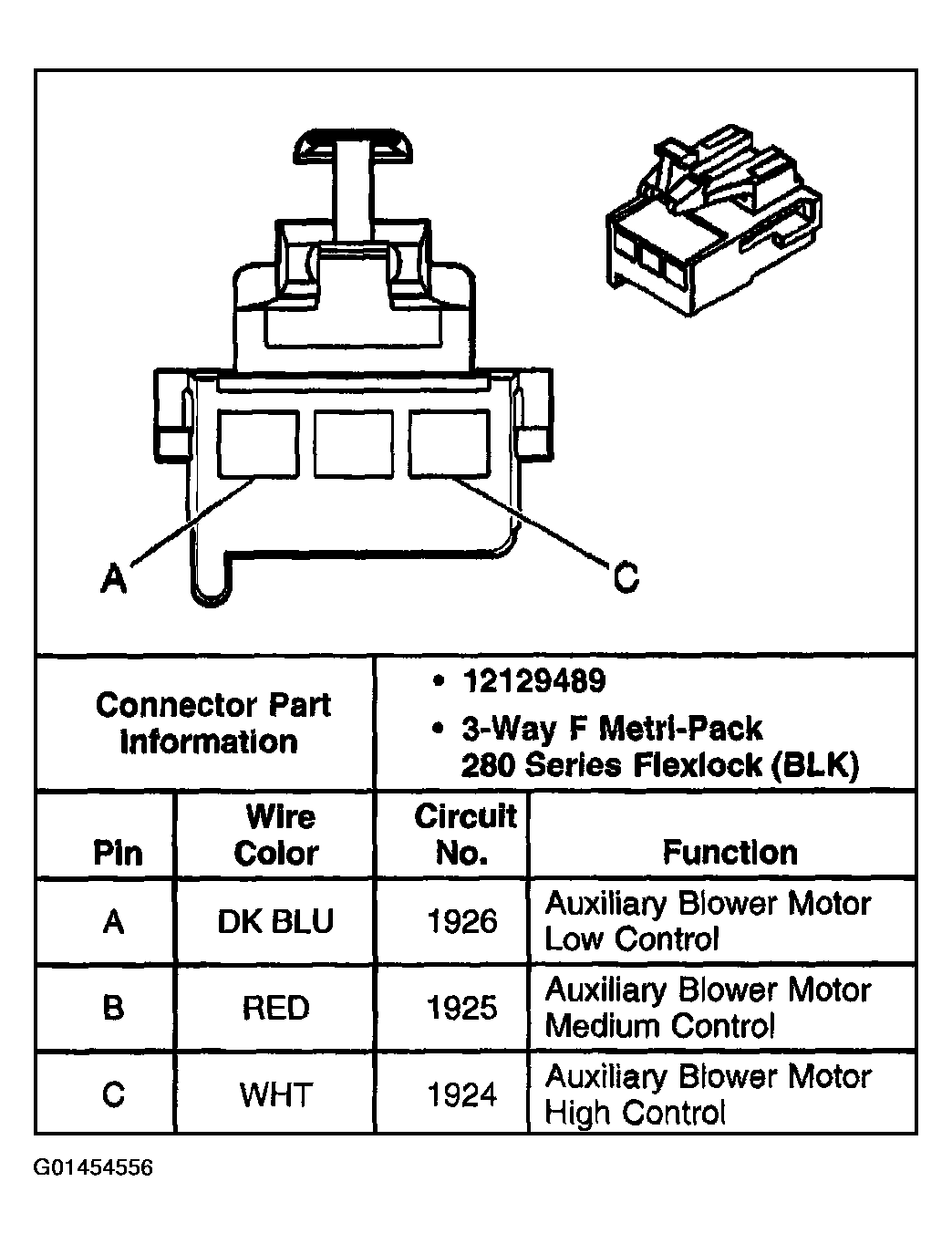

Fig 11: Identifying Blower Motor Resistor Assembly - Auxiliary - C1

G01454556

Courtesy of GENERAL MOTORS CORP.

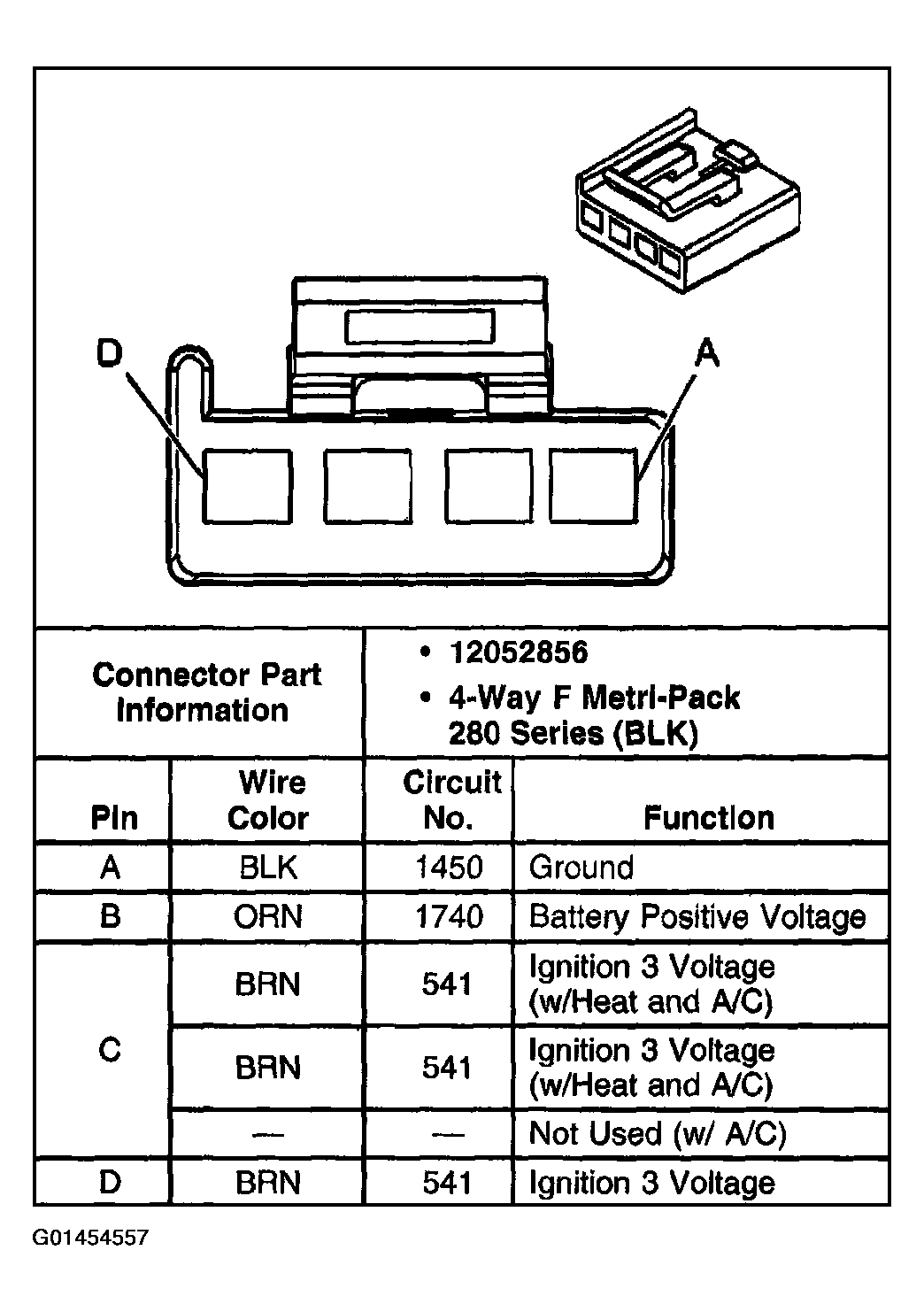

Fig 12: Identifying Blower Motor Resistor Assembly - Auxiliary - C2

G01454557

Courtesy of GENERAL MOTORS CORP.

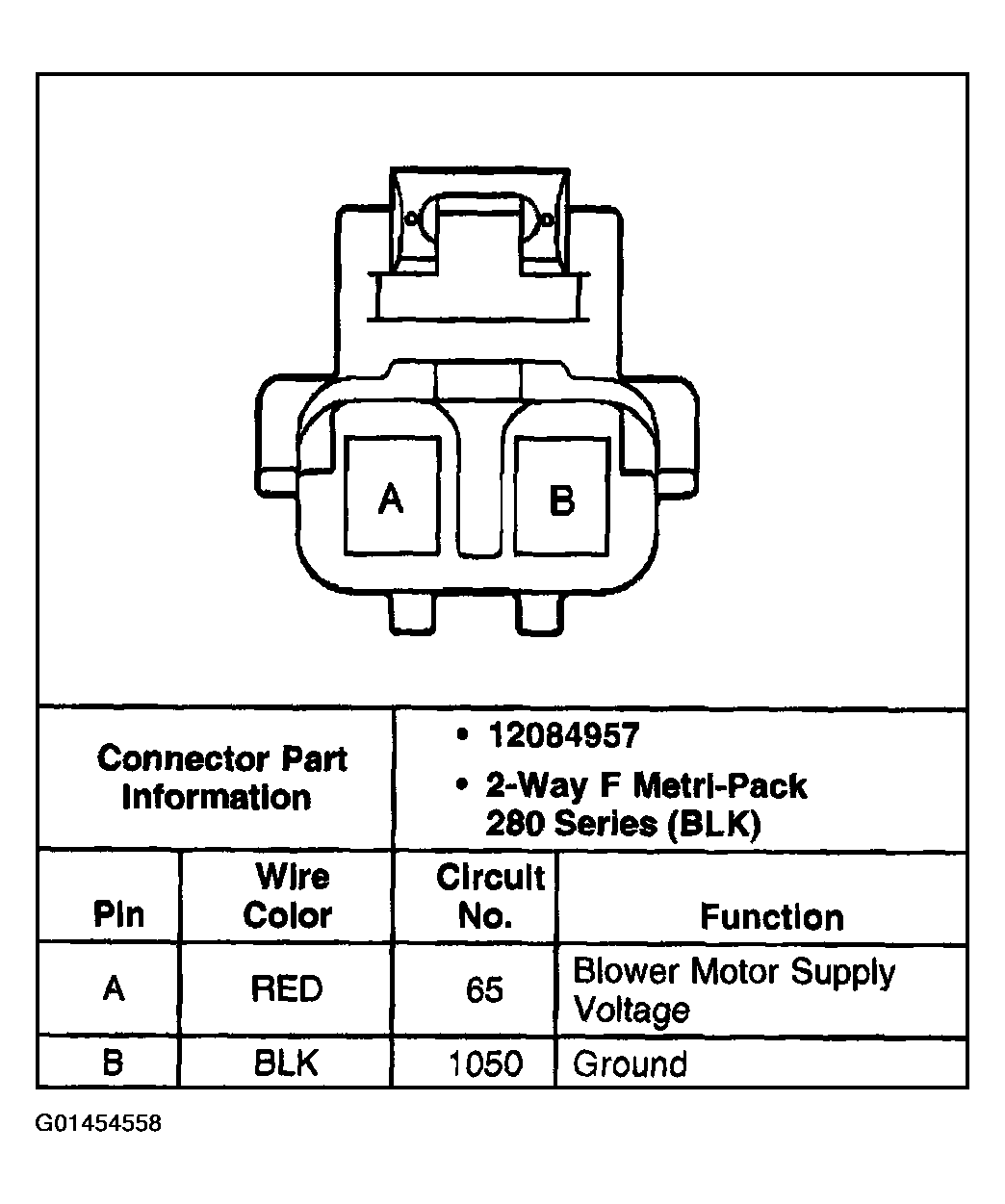

Fig 13: Identifying Blower Motor - Auxiliary

G01454558

Courtesy of GENERAL MOTORS CORP.

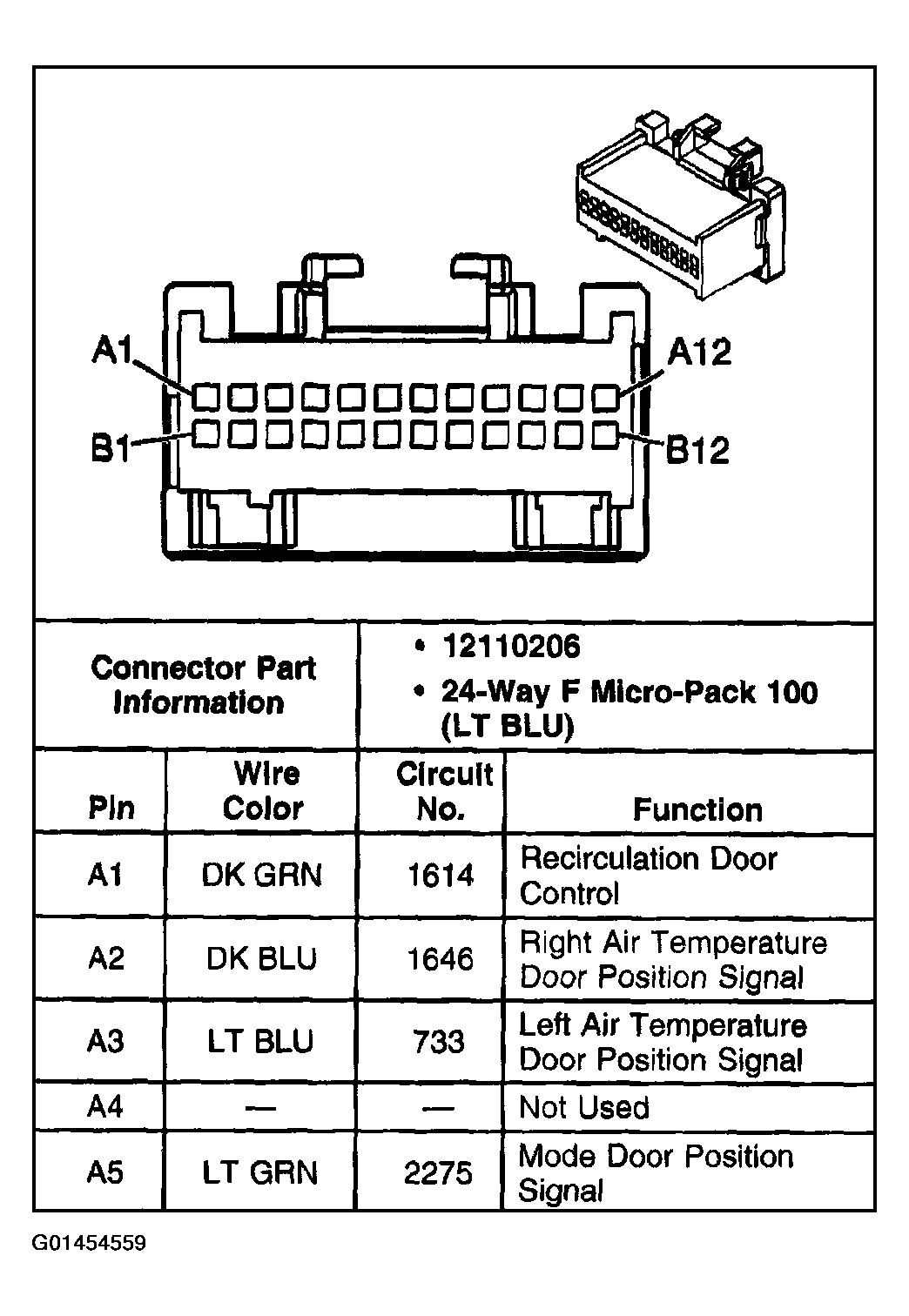

Fig 14: Identifying HVAC Control Module - C1 (1 Of 2)

G01454559

Courtesy of GENERAL MOTORS CORP.

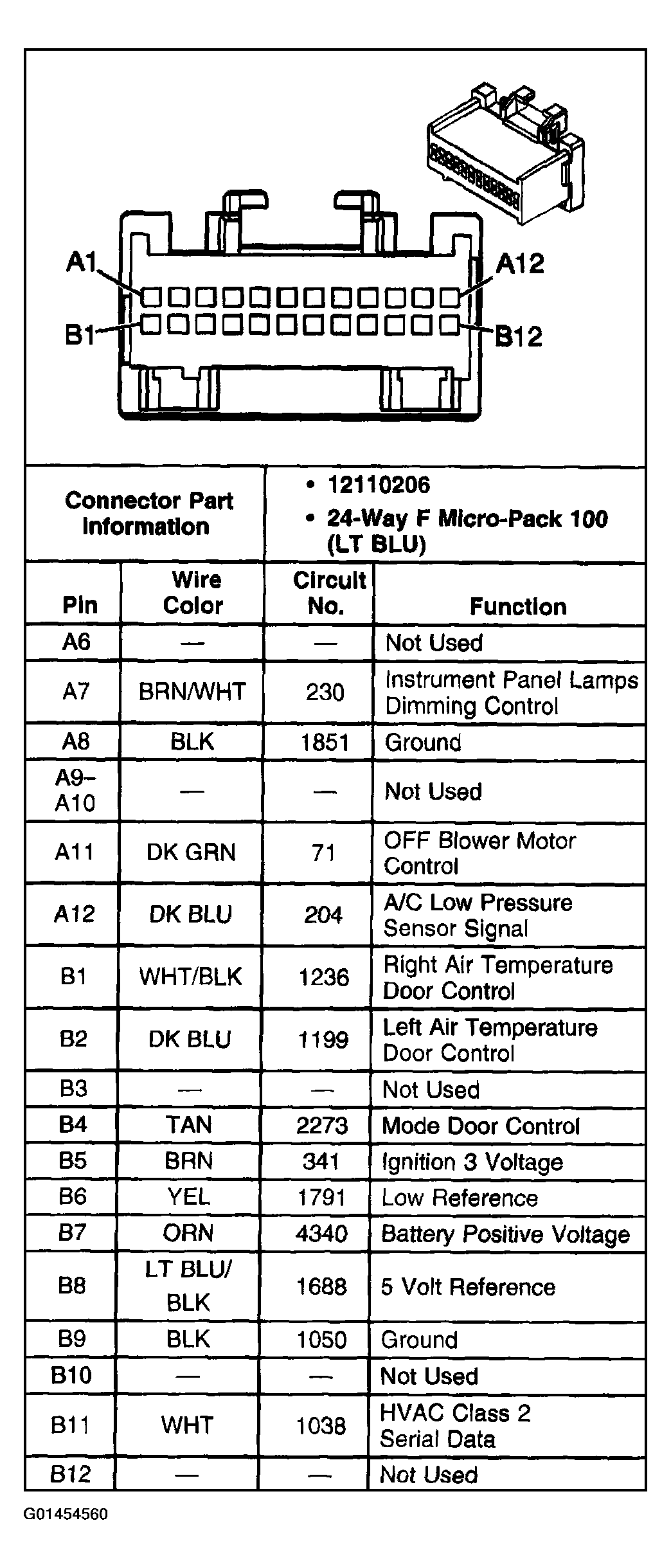

Fig 15: Identifying HVAC Control Module - C1 (2 Of 2)

G01454560

Courtesy of GENERAL MOTORS CORP.

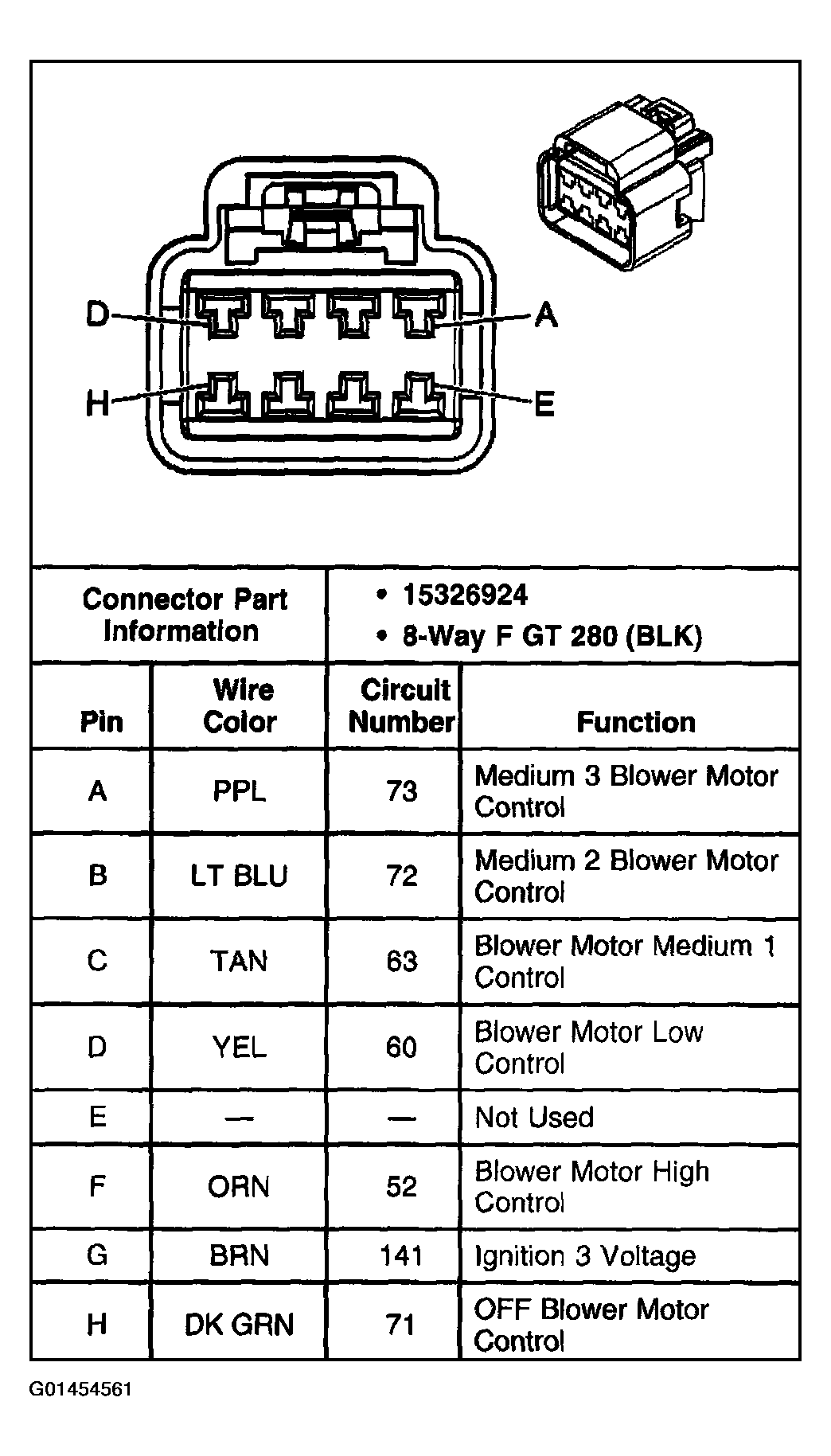

Fig 16: Identifying HVAC Control Module - C2

G01454561

Courtesy of GENERAL MOTORS CORP.

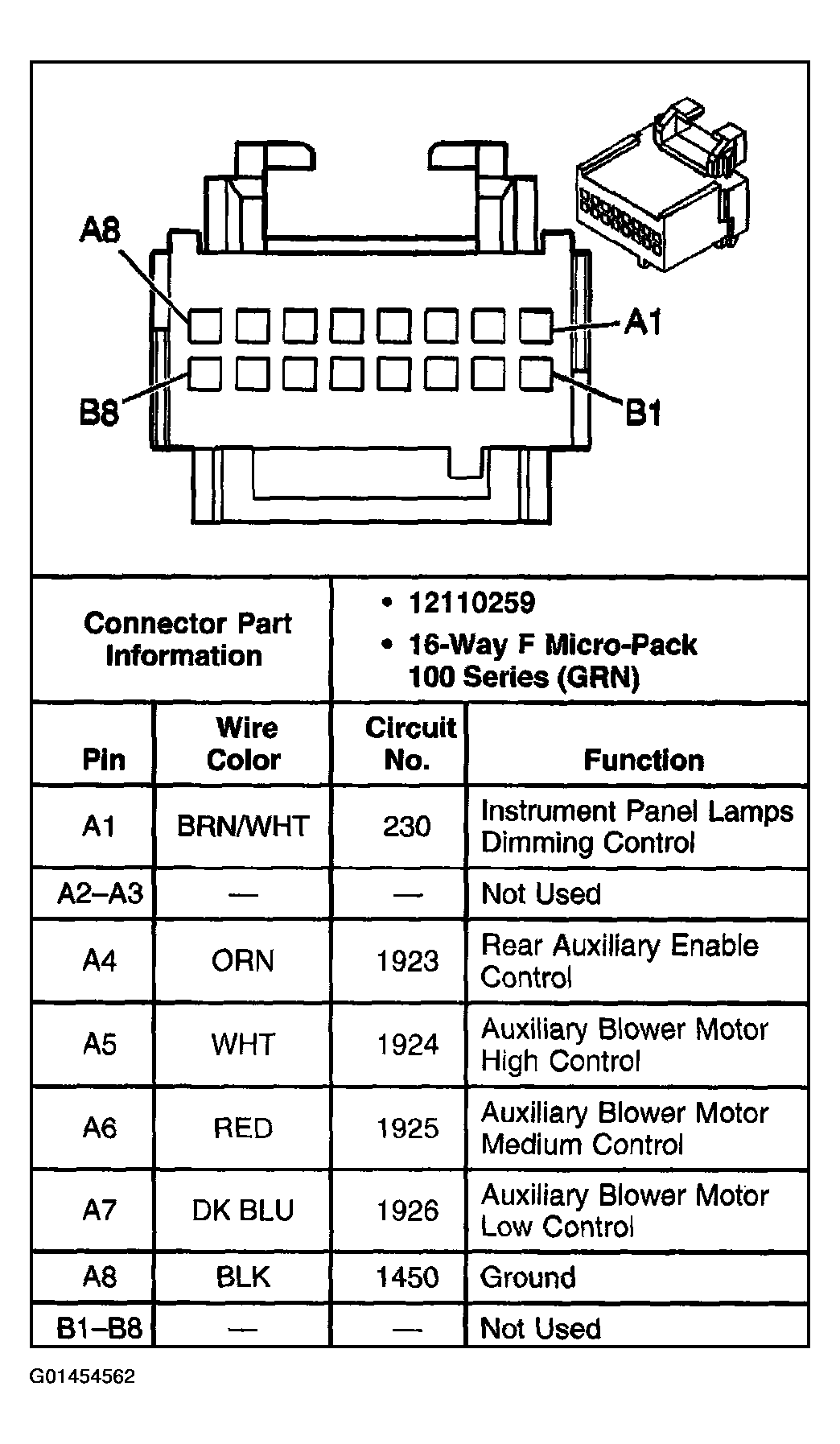

Fig 17: Identifying HVAC Control Assembly - Front Auxiliary - W/ A/C

G01454562

Courtesy of GENERAL MOTORS CORP.

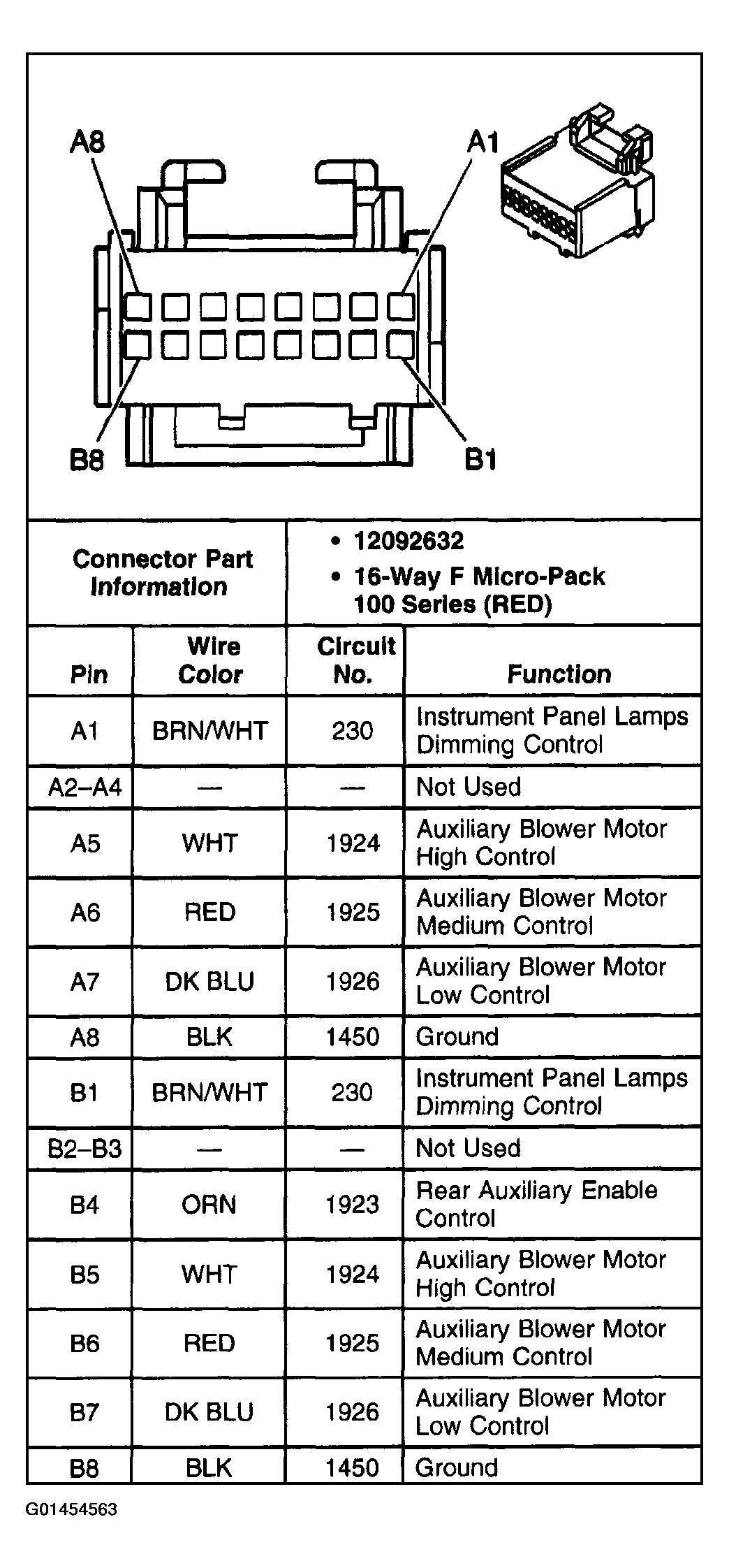

Fig 18: Identifying HVAC Control Assembly - Rear Auxiliary - W/ A/C

G01454563

Courtesy of GENERAL MOTORS CORP.

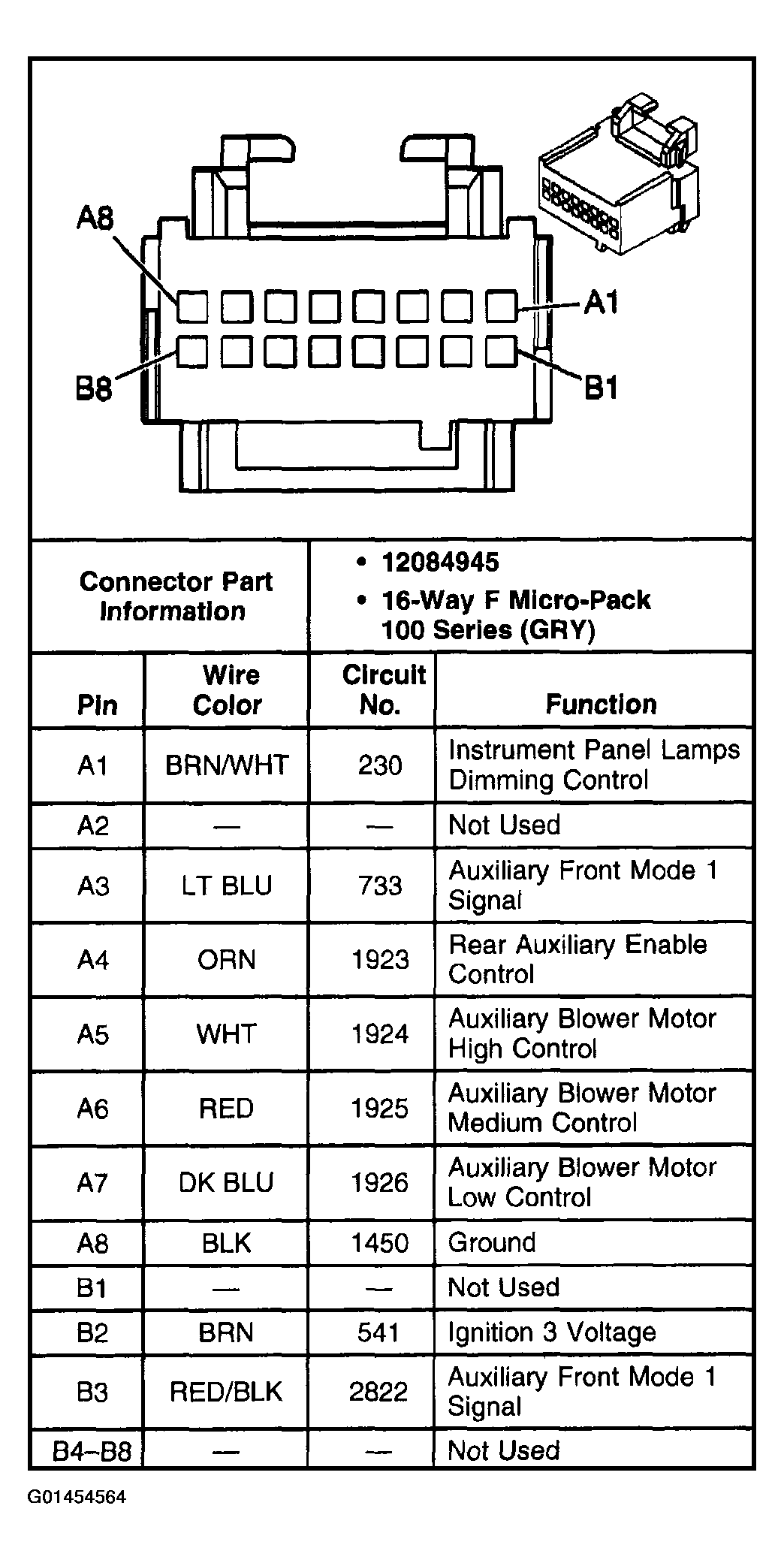

Fig 19: Identifying HVAC Control Assembly - Front Auxiliary - W/ Heat And A/C

G01454564

Courtesy of GENERAL MOTORS CORP.

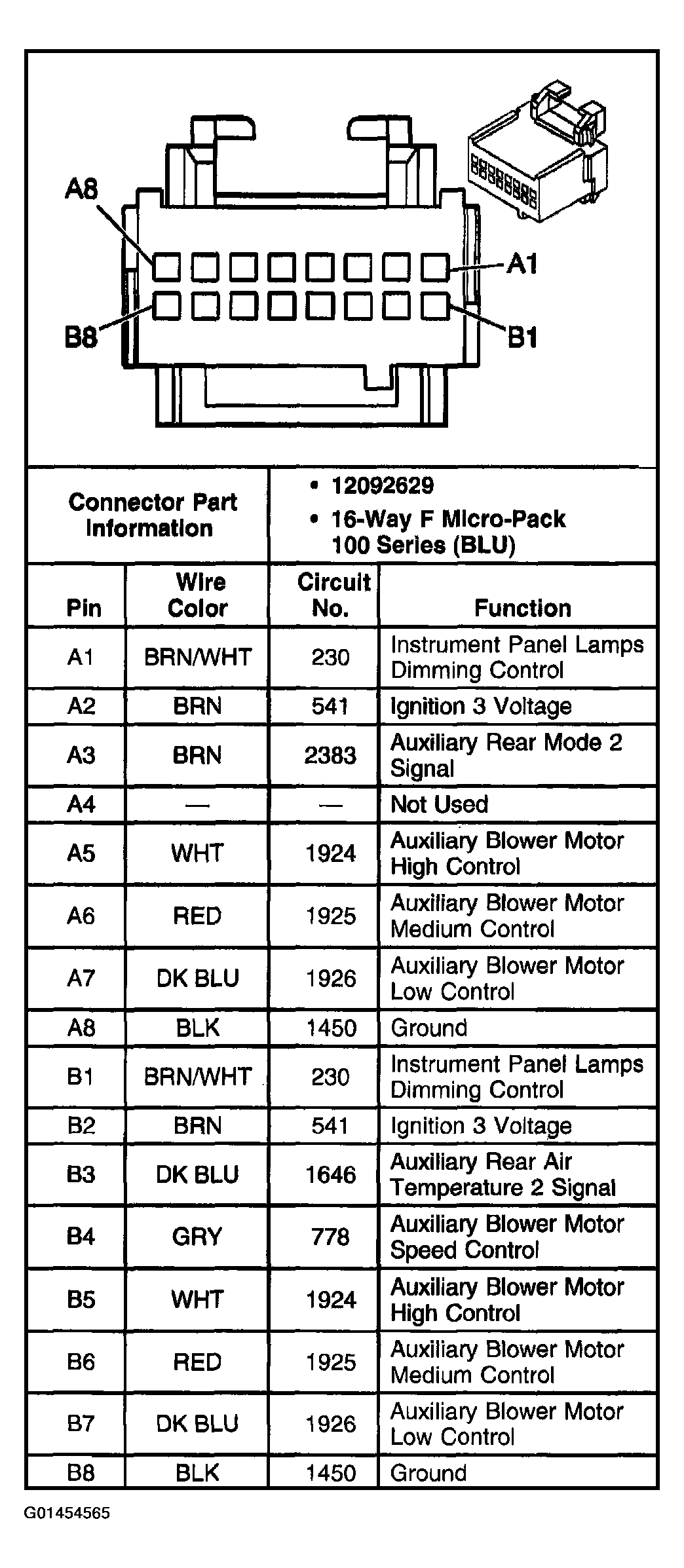

Fig 20: Identifying HVAC Control Assembly - Rear Auxiliary - W/ Heat And A/C

G01454565

Courtesy of GENERAL MOTORS CORP.

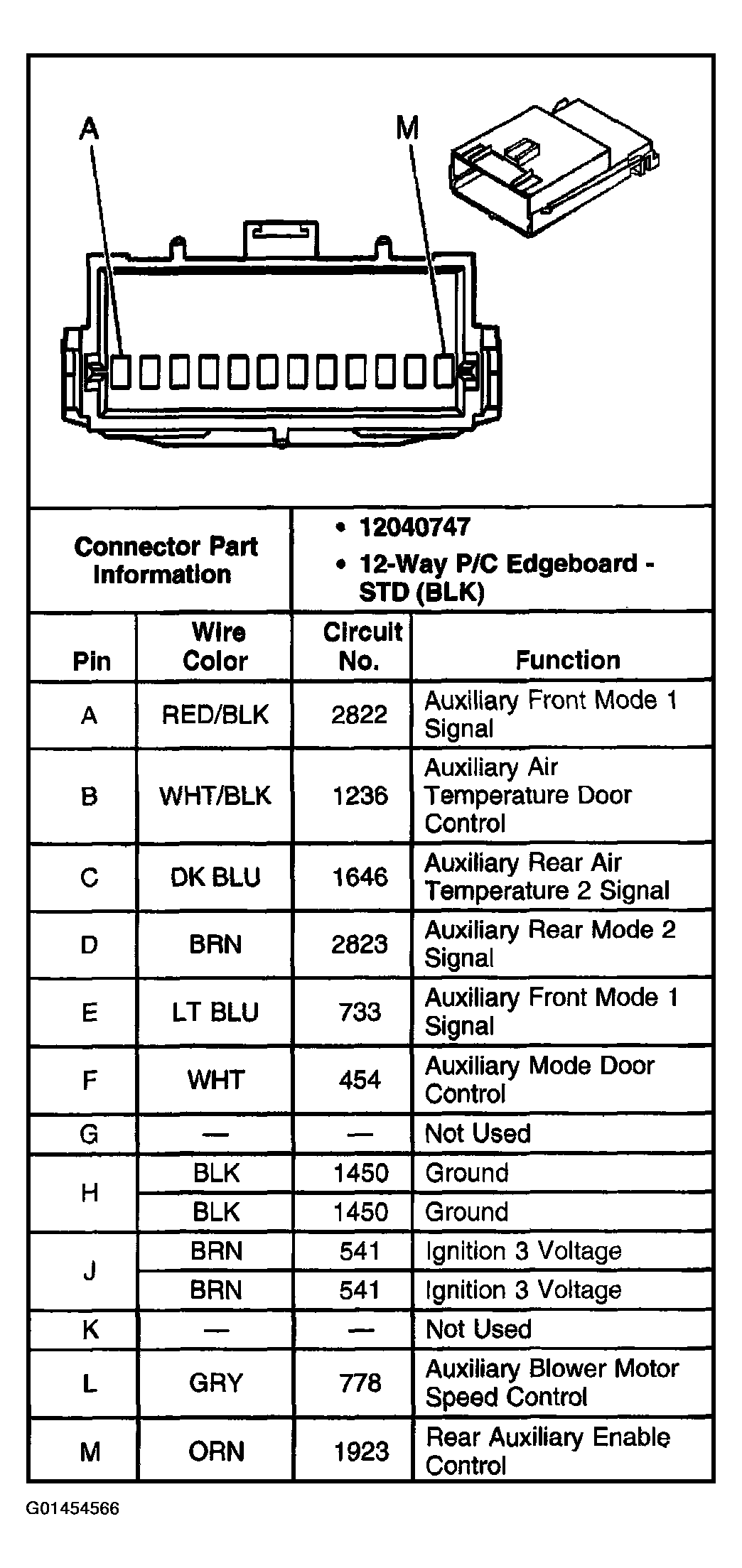

Fig 21: Identifying HVAC Control Processor - Auxiliary

G01454566

Courtesy of GENERAL MOTORS CORP.

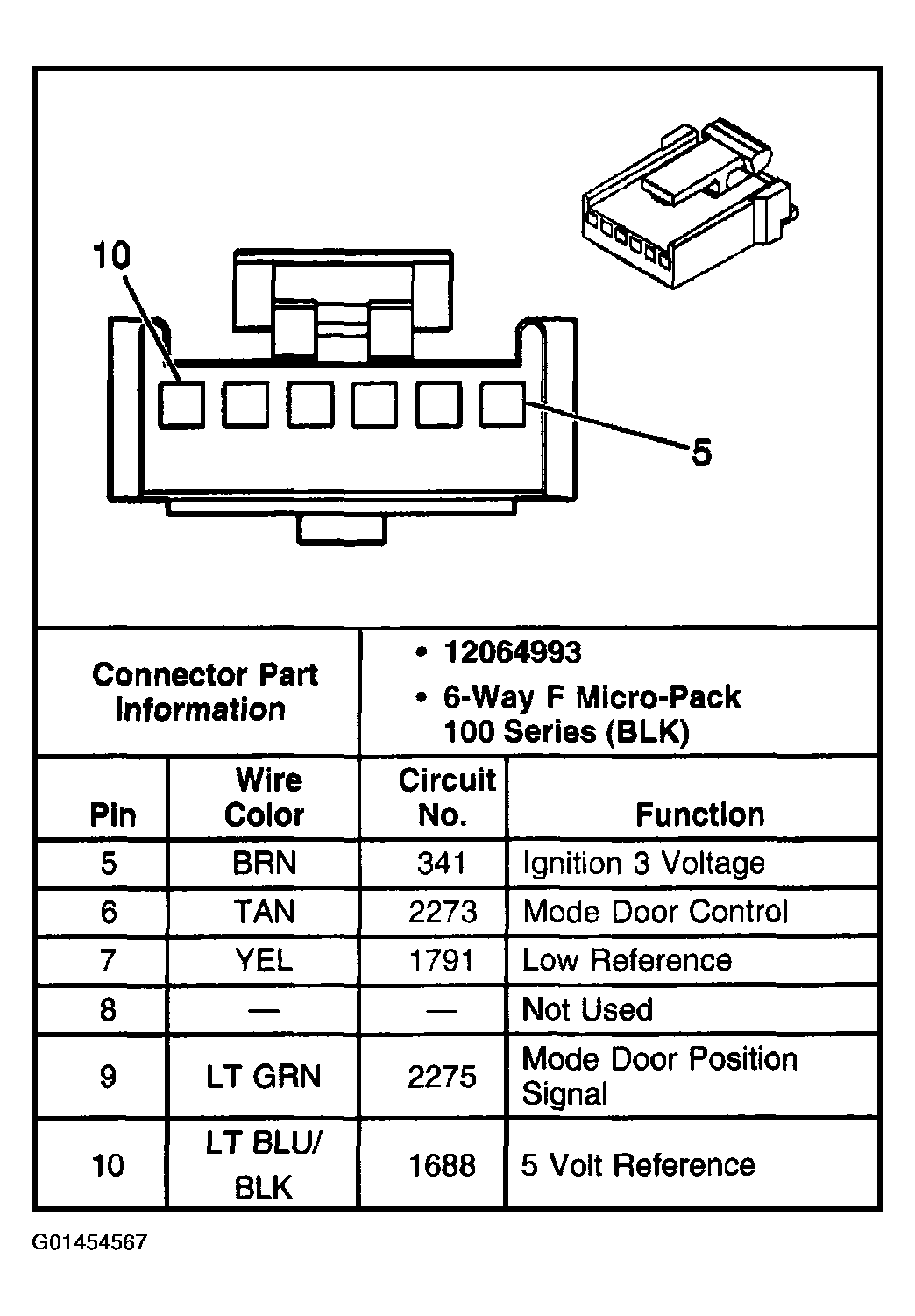

Fig 22: Identifying Mode Actuator

G01454567

Courtesy of GENERAL MOTORS CORP.

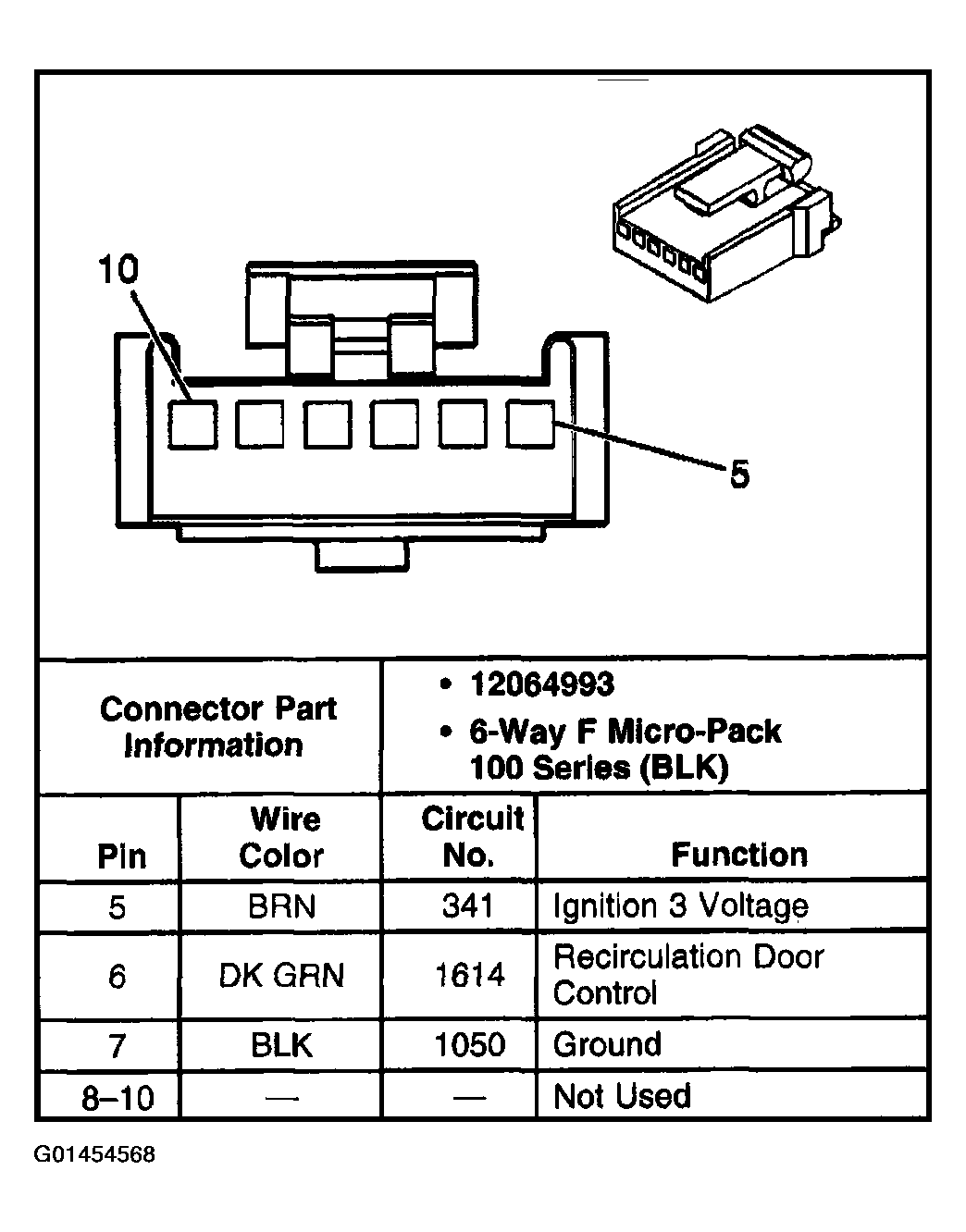

Fig 23: Identifying Recirculation Actuator

G01454568

Courtesy of GENERAL MOTORS CORP.
