Schematic and Routing Diagrams

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

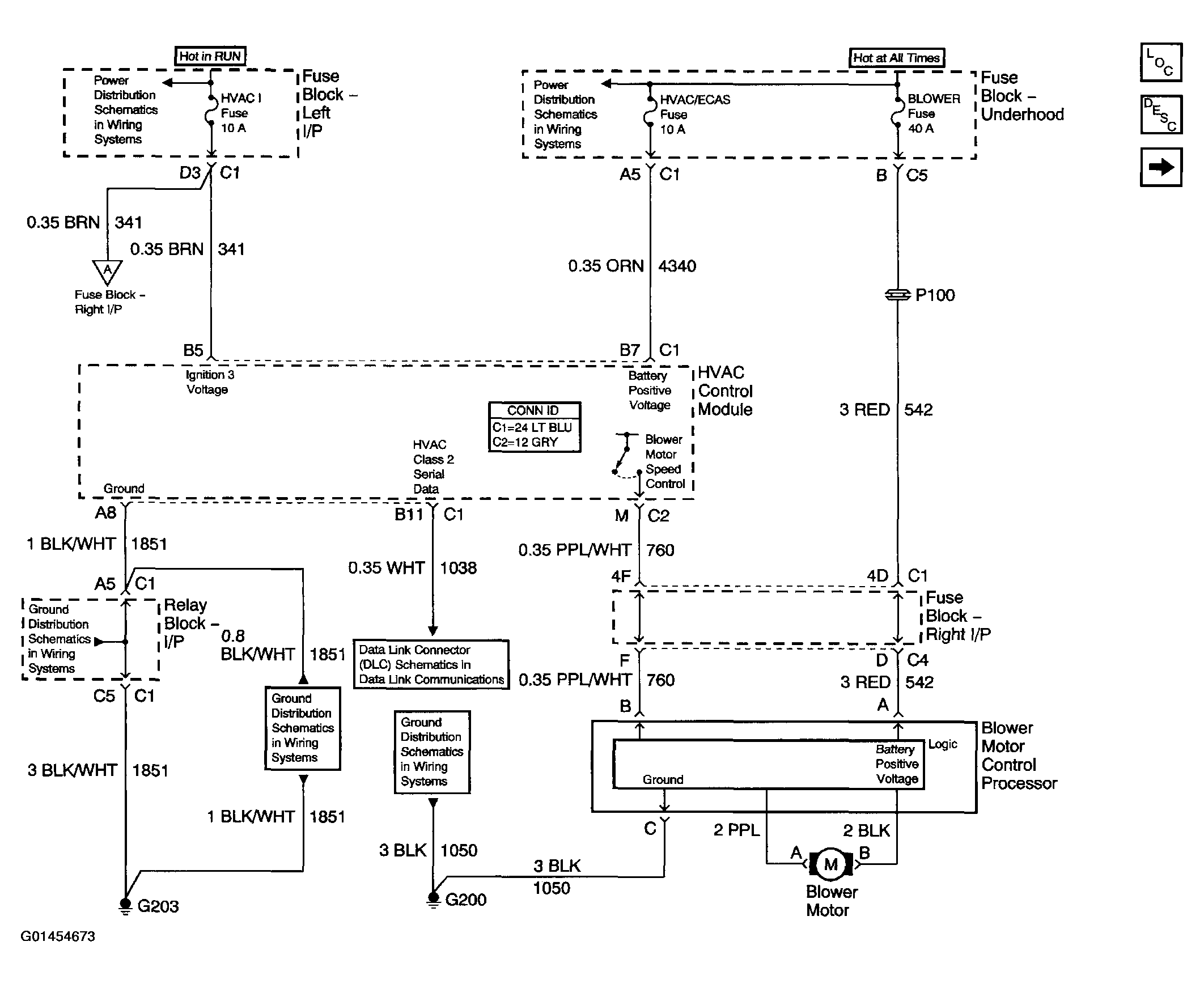

Fig 1: HVAC Schematics (Power, Ground, Class 2, And Front Blower Controls)

G01454673

Courtesy of GENERAL MOTORS CORP.

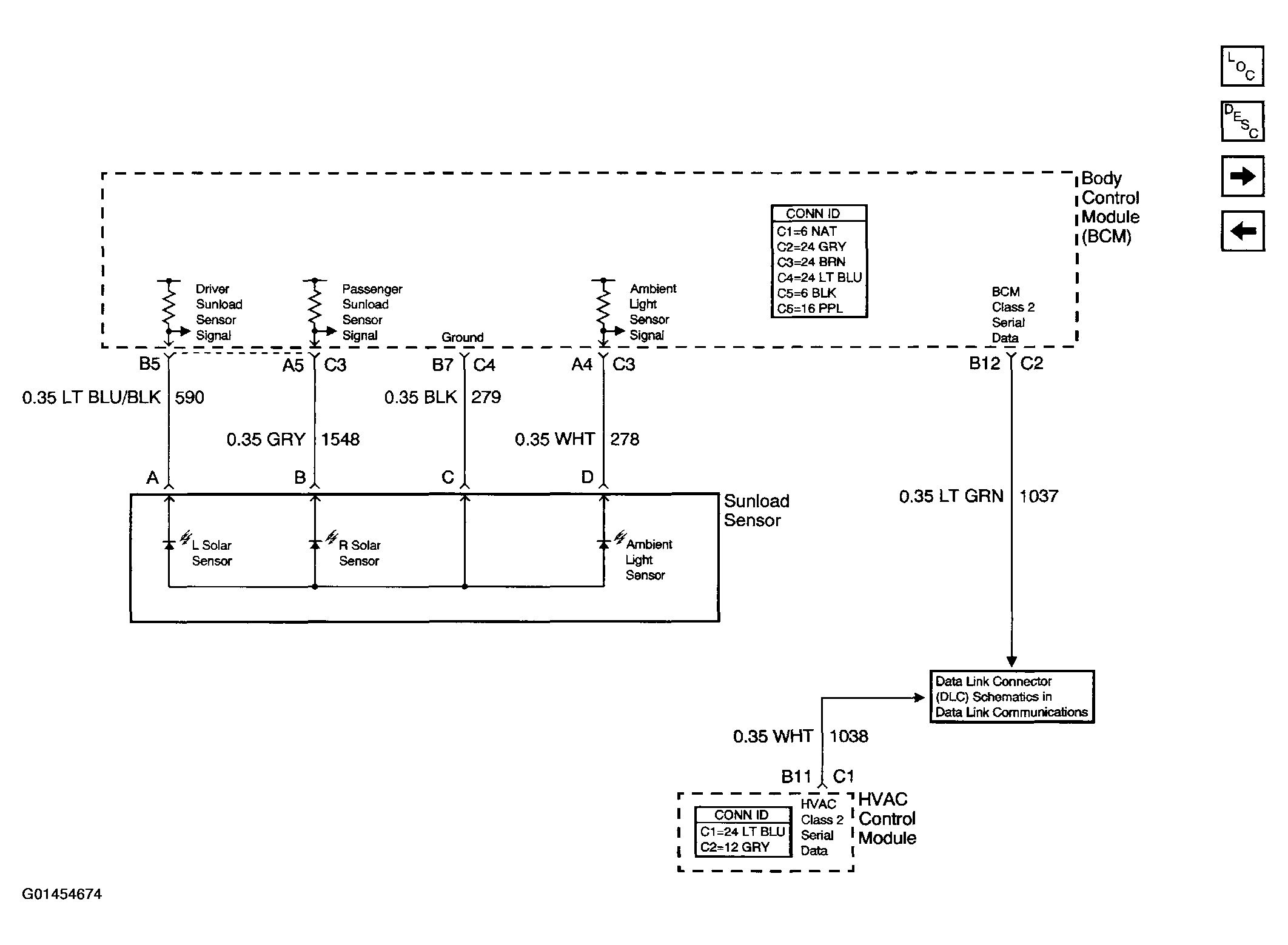

Fig 2: HVAC Schematics - Sunload And Ambient Light Sensors

G01454674

Courtesy of GENERAL MOTORS CORP.

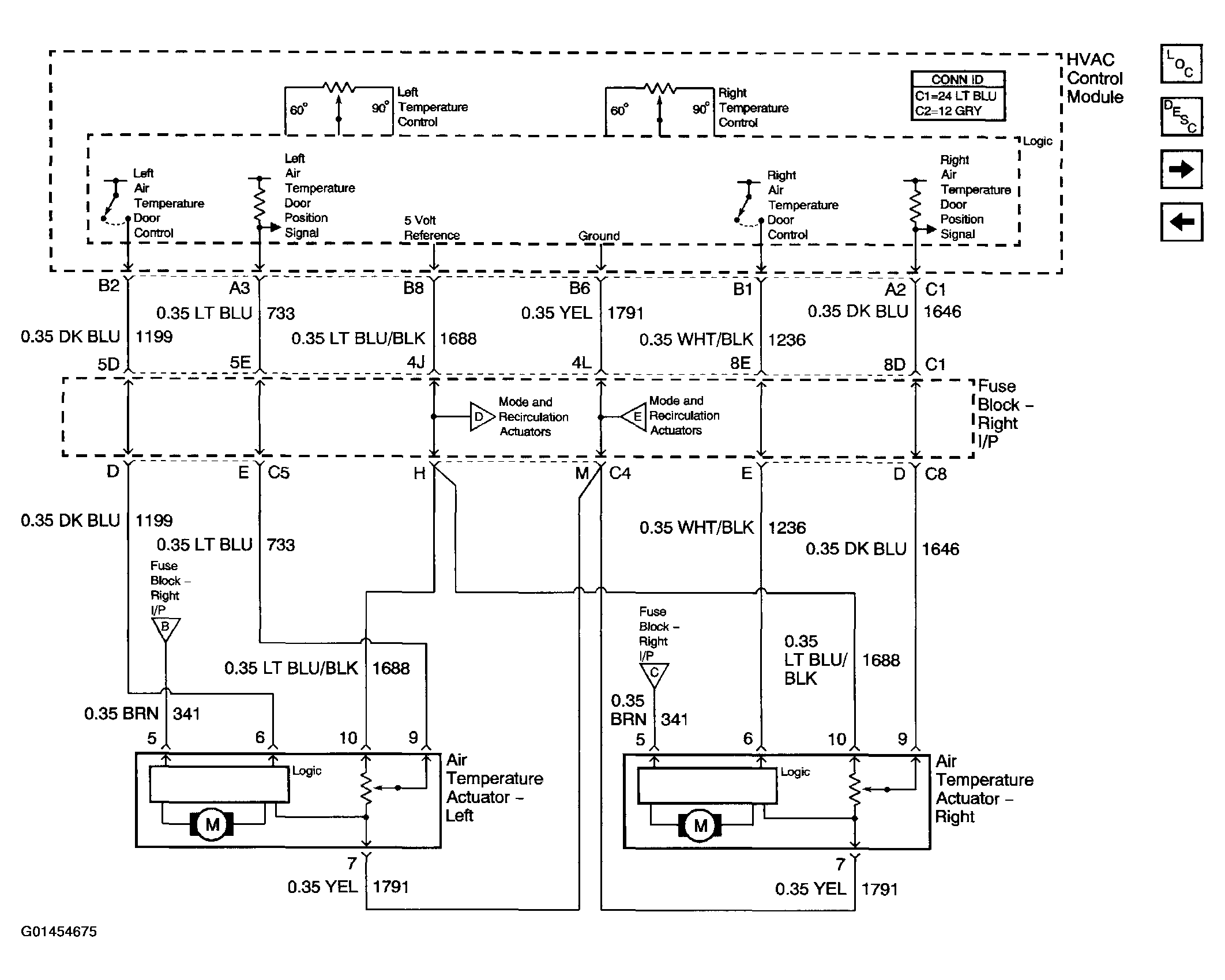

Fig 3: HVAC Schematics - Front Left And Right Temperature Control

G01454675

Courtesy of GENERAL MOTORS CORP.

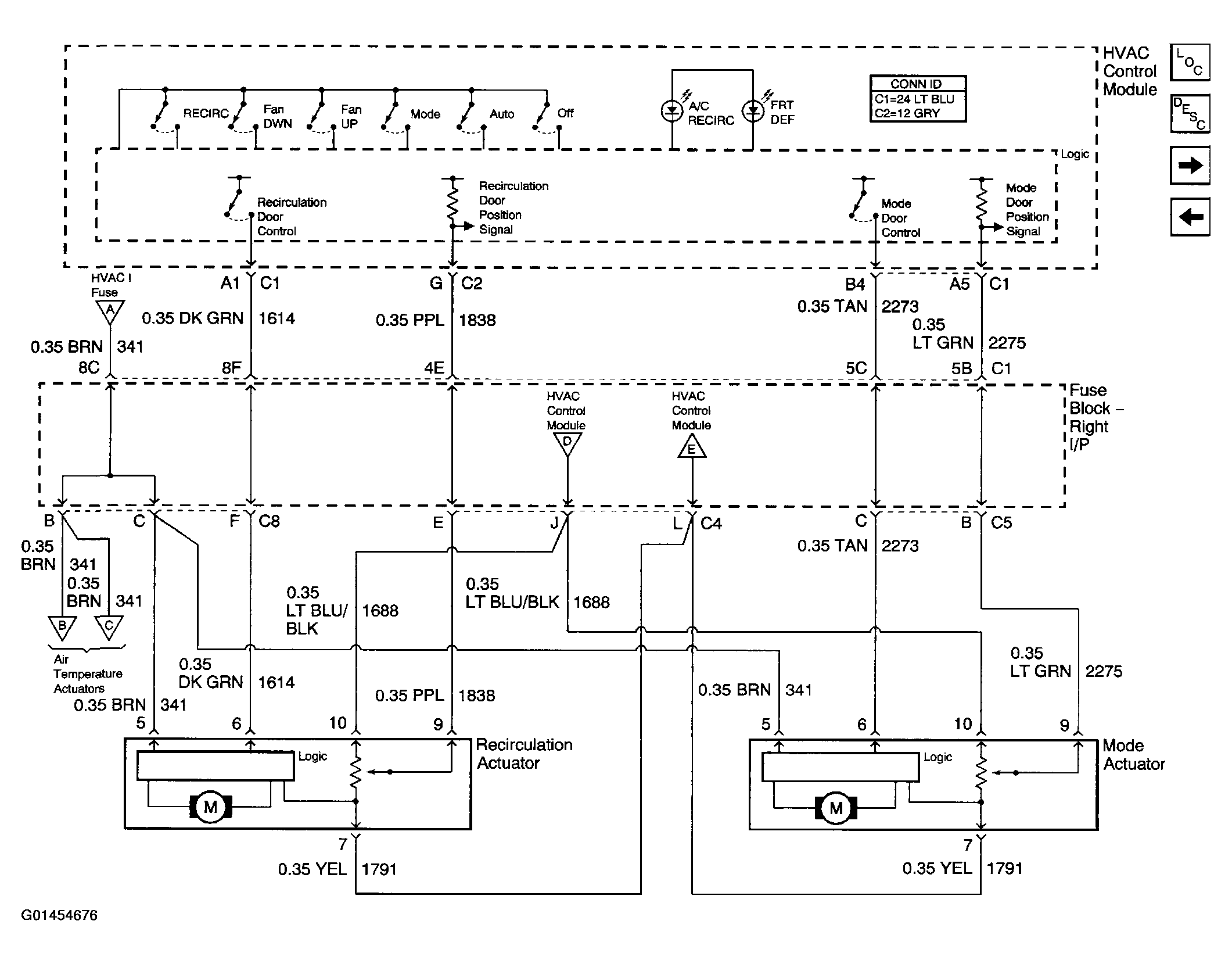

Fig 4: HVAC Schematics - Recirculation And Mode Door Controls

G01454676

Courtesy of GENERAL MOTORS CORP.

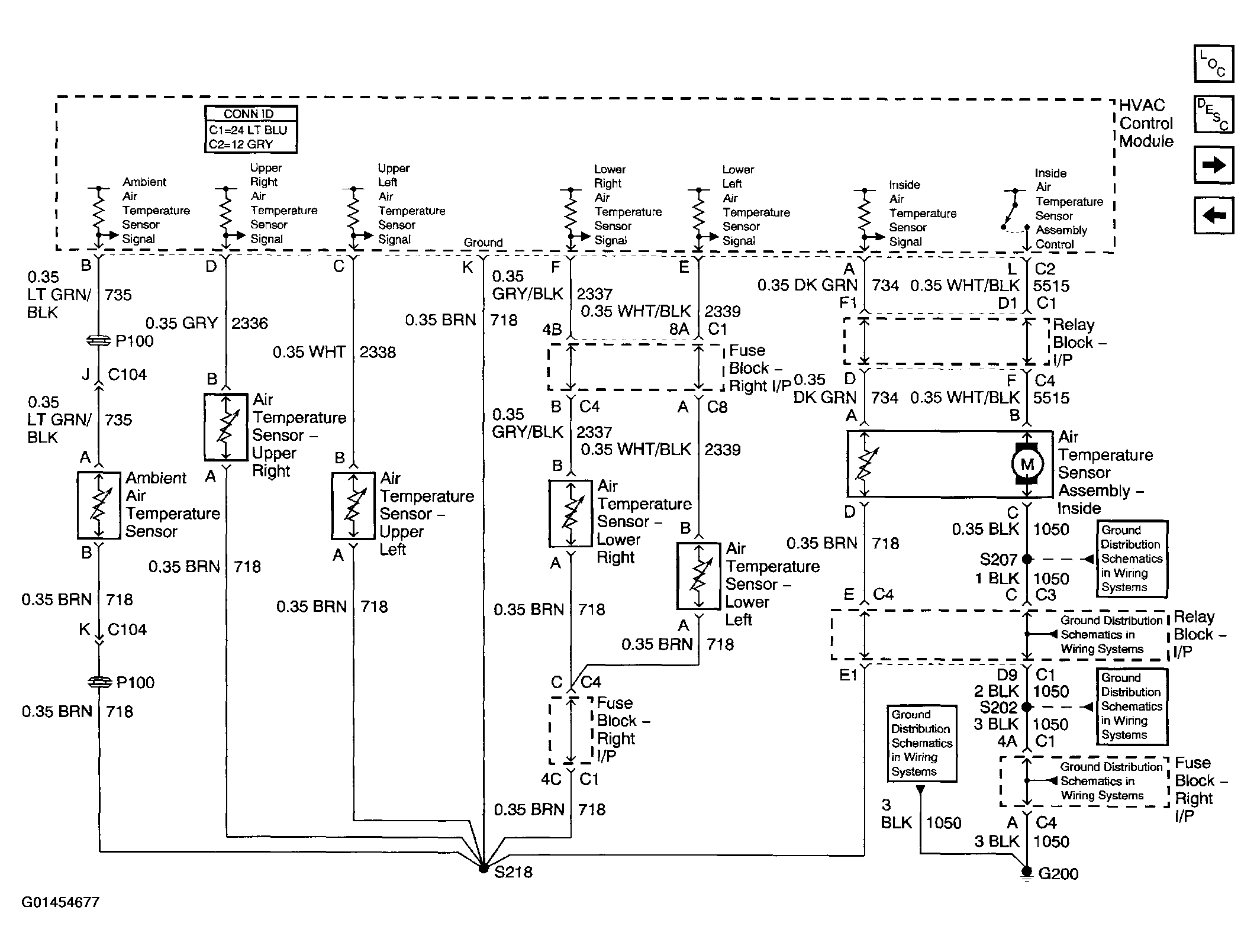

Fig 5: HVAC Schematics - Front Air Temperature Sensors

G01454677

Courtesy of GENERAL MOTORS CORP.

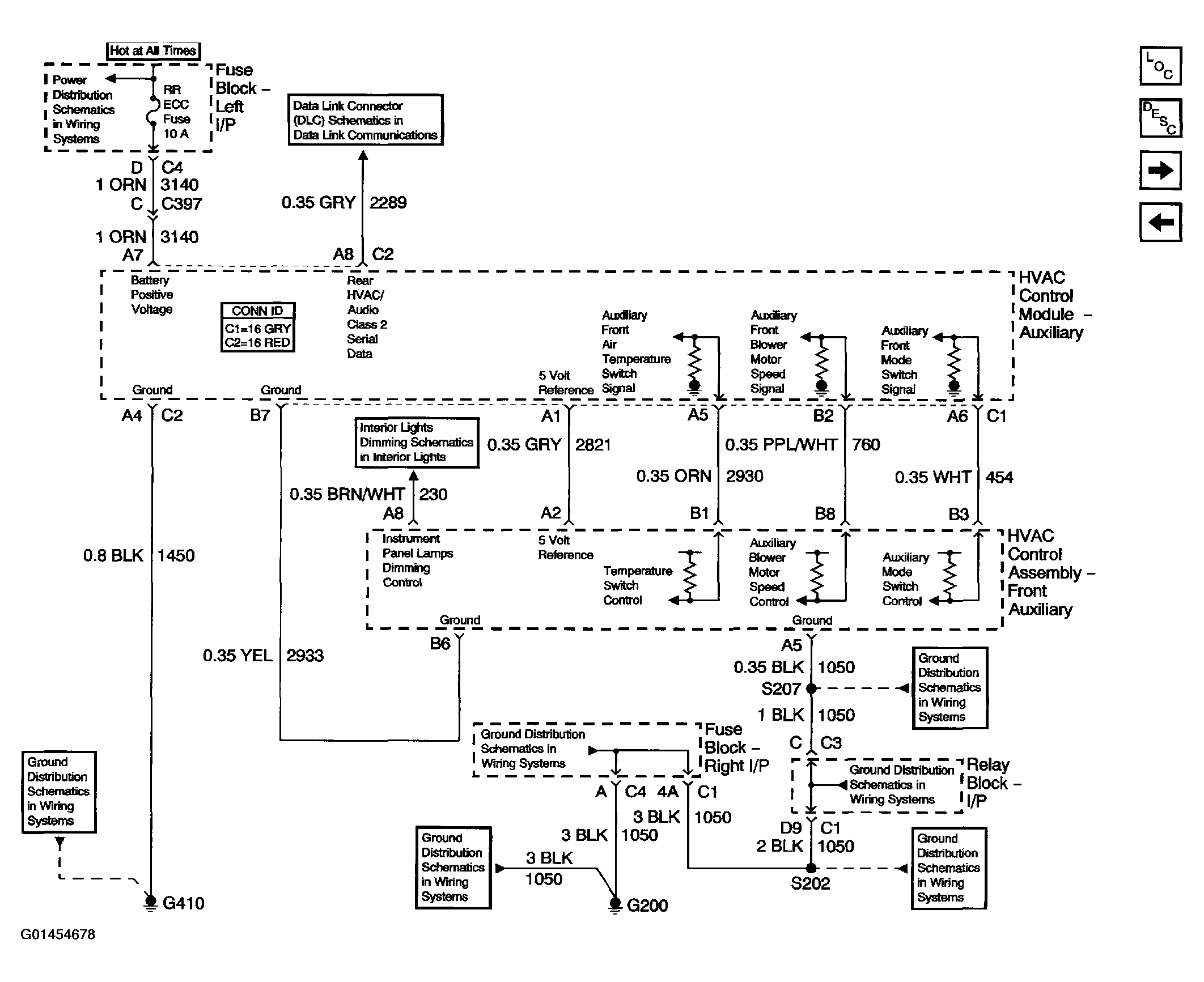

Fig 6: HVAC Schematics - Auxiliary HVAC Controls - 1 Of 3

G01454678

Courtesy of GENERAL MOTORS CORP.

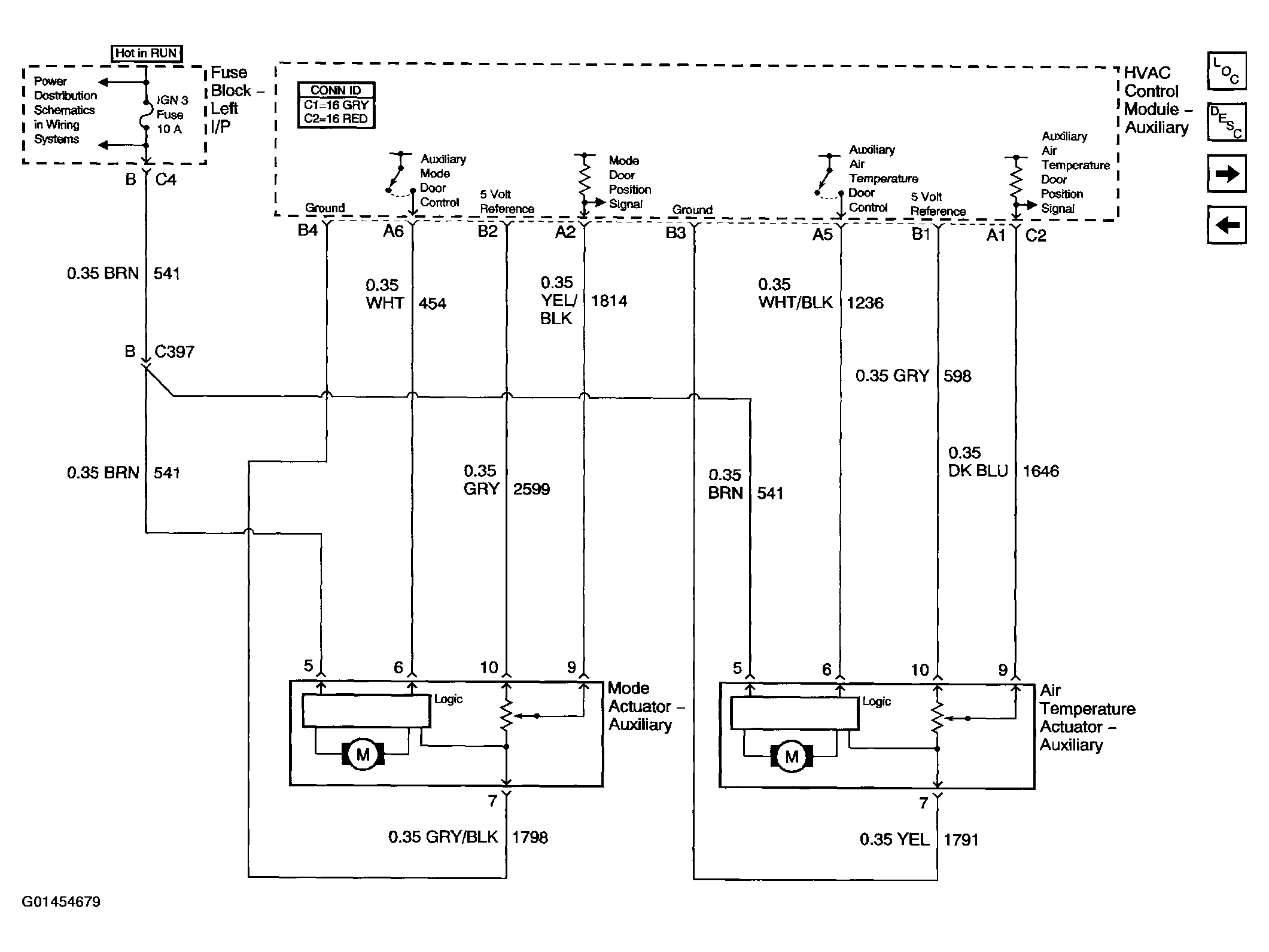

Fig 7: HVAC Schematics - Auxiliary HVAC Controls - 2 Of 3

G01454679

Courtesy of GENERAL MOTORS CORP.

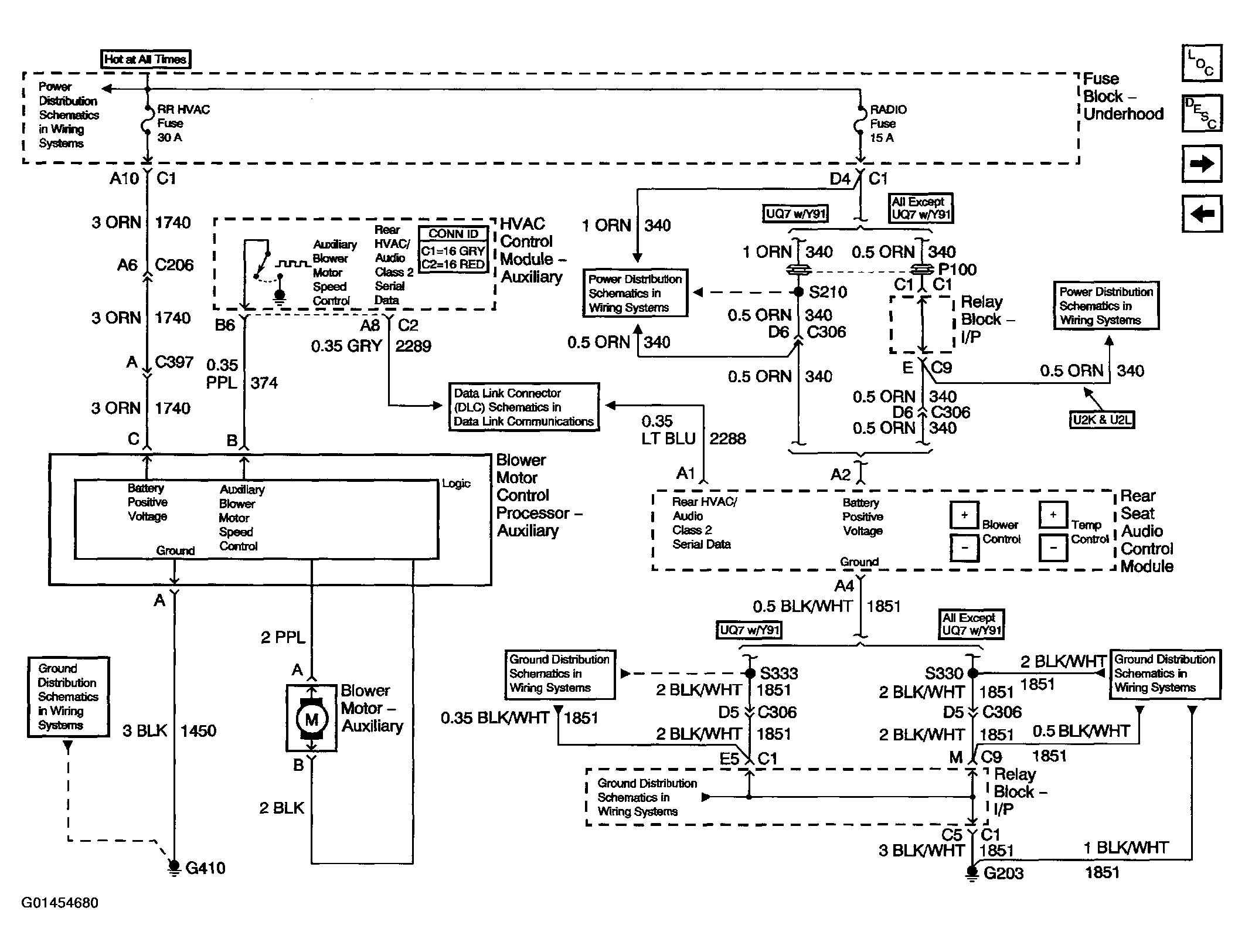

Fig 8: HVAC Schematics - Auxiliary HVAC Controls - 3 Of 3

G01454680

Courtesy of GENERAL MOTORS CORP.

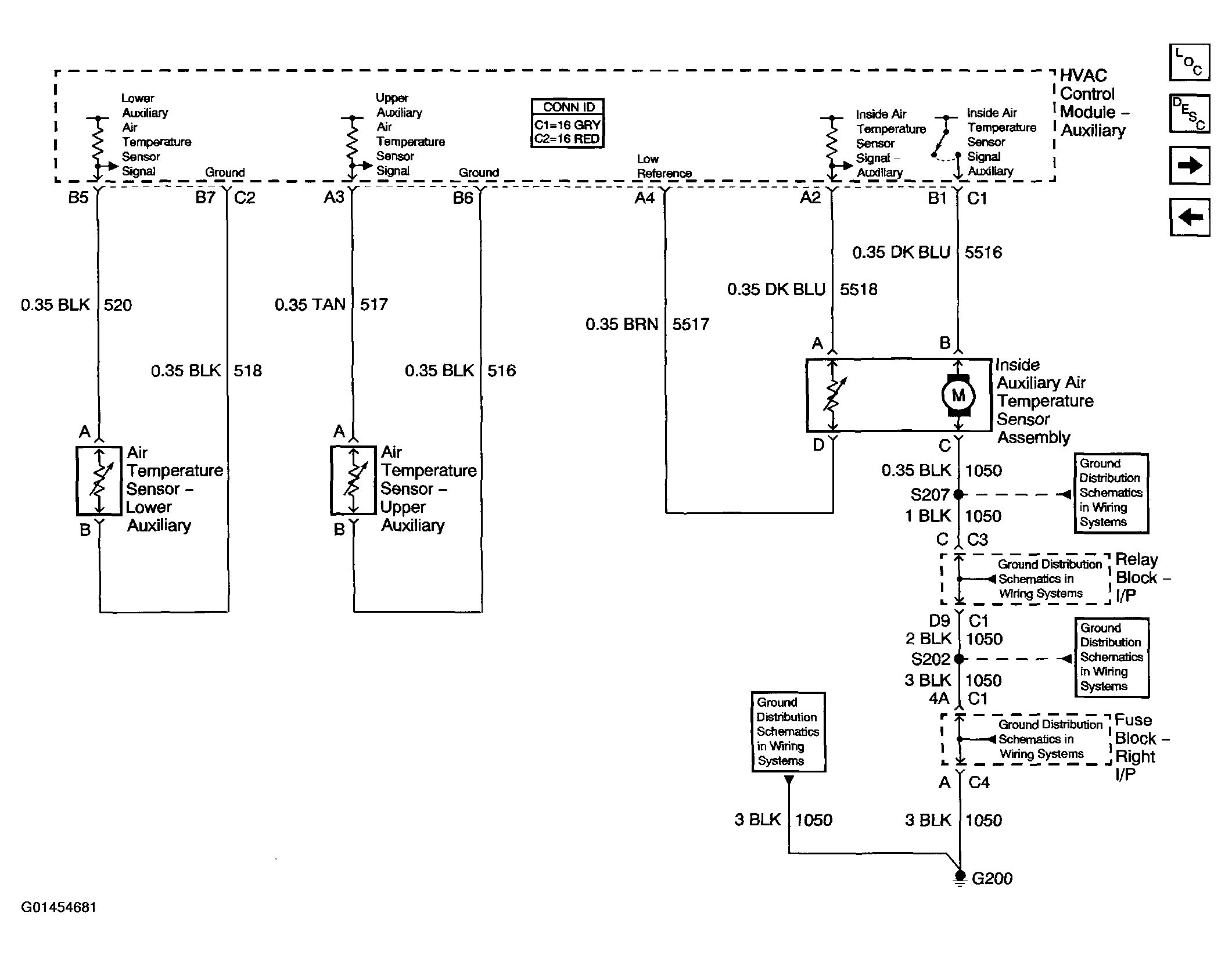

Fig 9: HVAC Schematics - Auxiliary Temperature Sensors

G01454681

Courtesy of GENERAL MOTORS CORP.

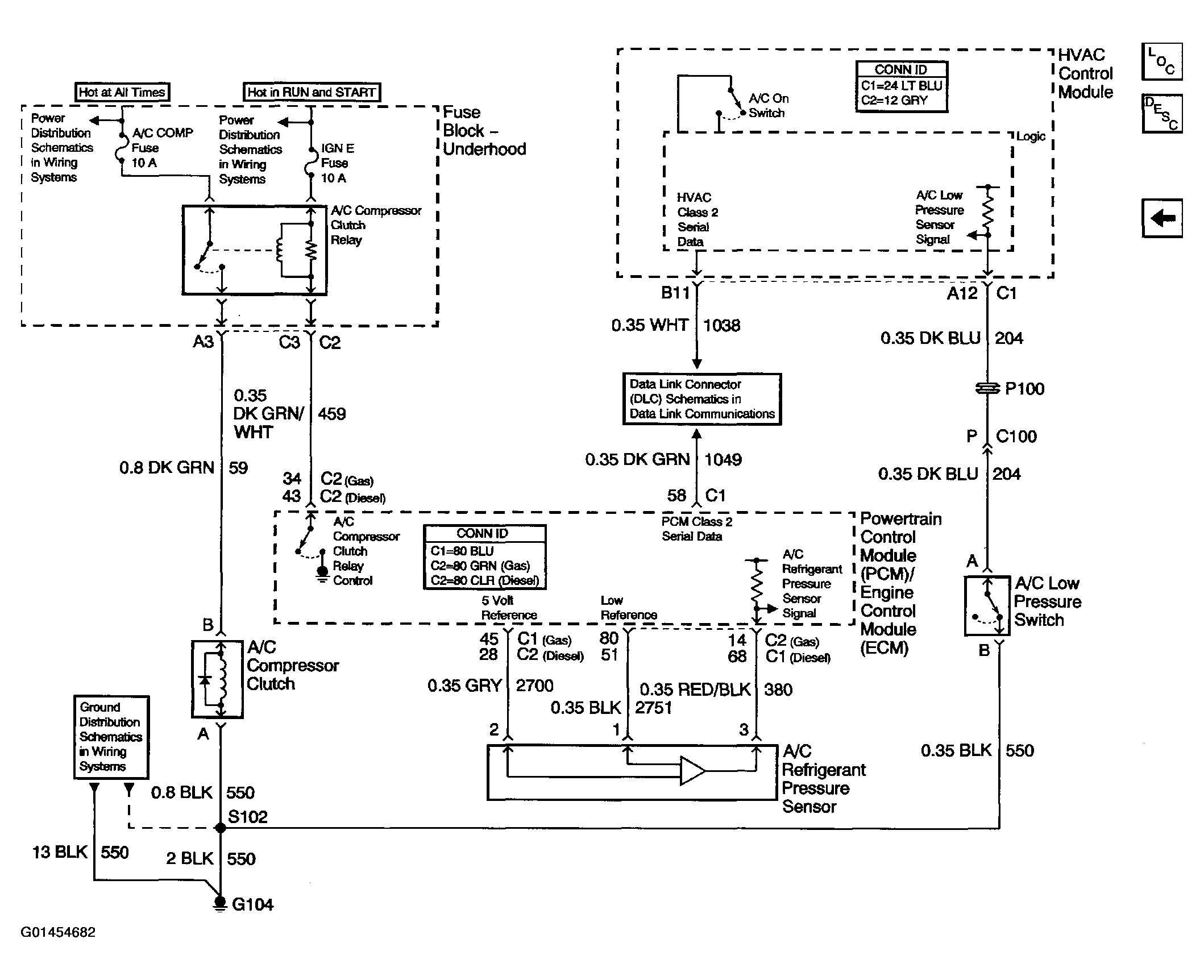

Fig 10: HVAC Schematics - A/C Compressor Controls

G01454682

Courtesy of GENERAL MOTORS CORP.
