Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the mode actuator (1) to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the mode actuator (1).

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  3. Connect the electrical connector to the mode actuator.
  4. Install the left rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (UTILITY) or TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (SUBURBAN) in INTERIOR TRIM .

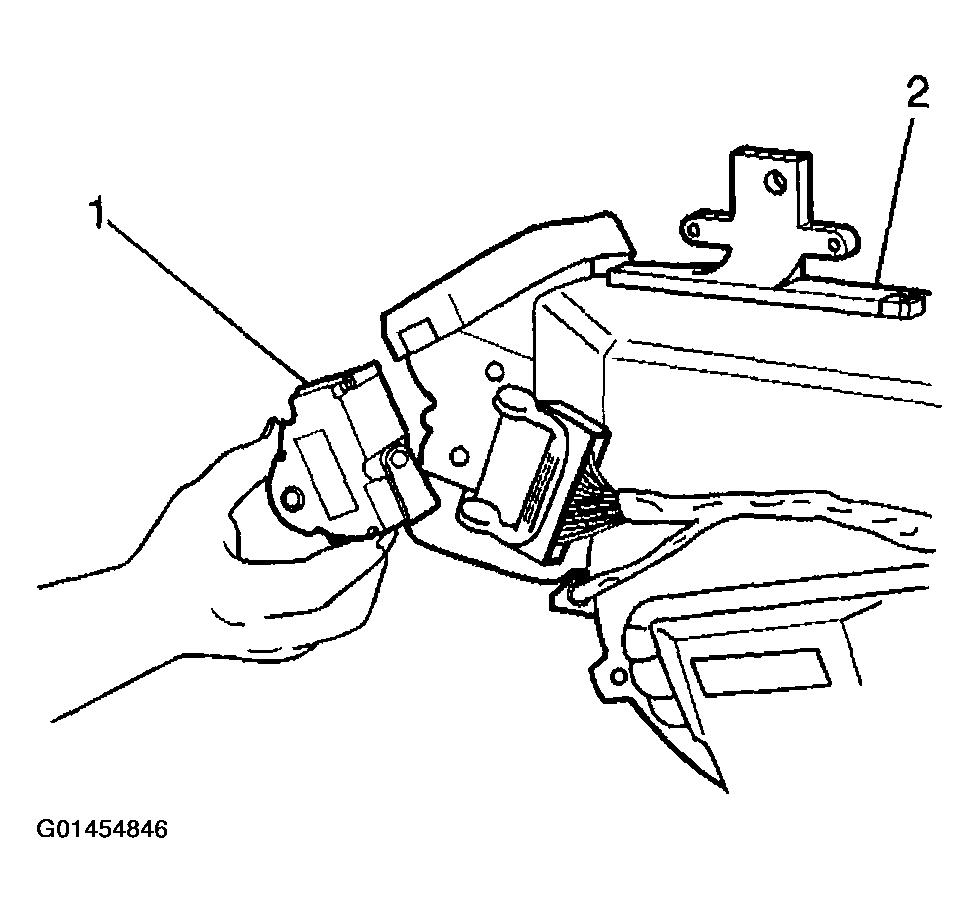

    Fig 1: Installing Mode Actuator - Auxiliary (Tahoe/Yukon)
    G01454846Courtesy of GENERAL MOTORS CORP.
