Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the mode actuator as an assembly with the actuator cam.
- Line up the heater/defroster lever with the mode actuator cam slot.
- Line up the A/C lever with the mode actuator cam.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the mode actuator mounting screws to the HVAC module.
Tighten

Tighten the screws to 1.6 N.m (14 lb in).

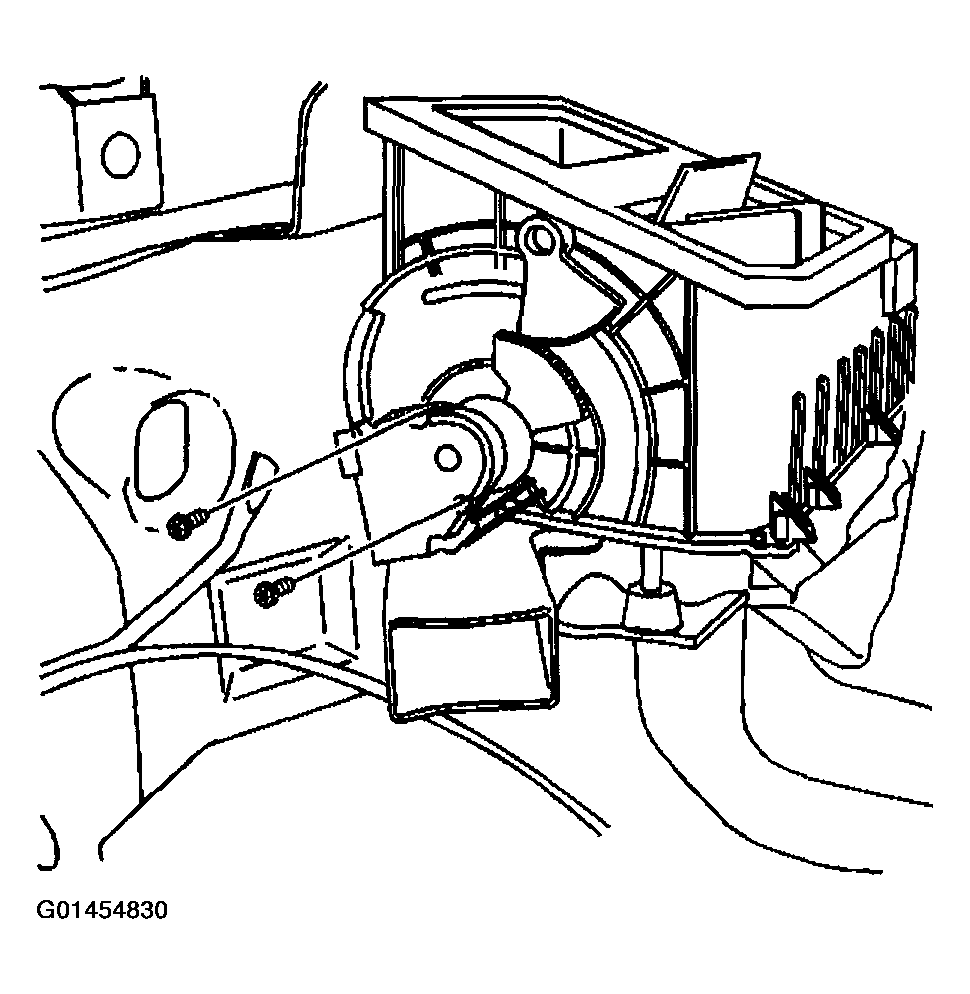

Fig 1: Installing Mode Actuator Mounting Screws To HVAC Module
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connection at the mode actuator (10).

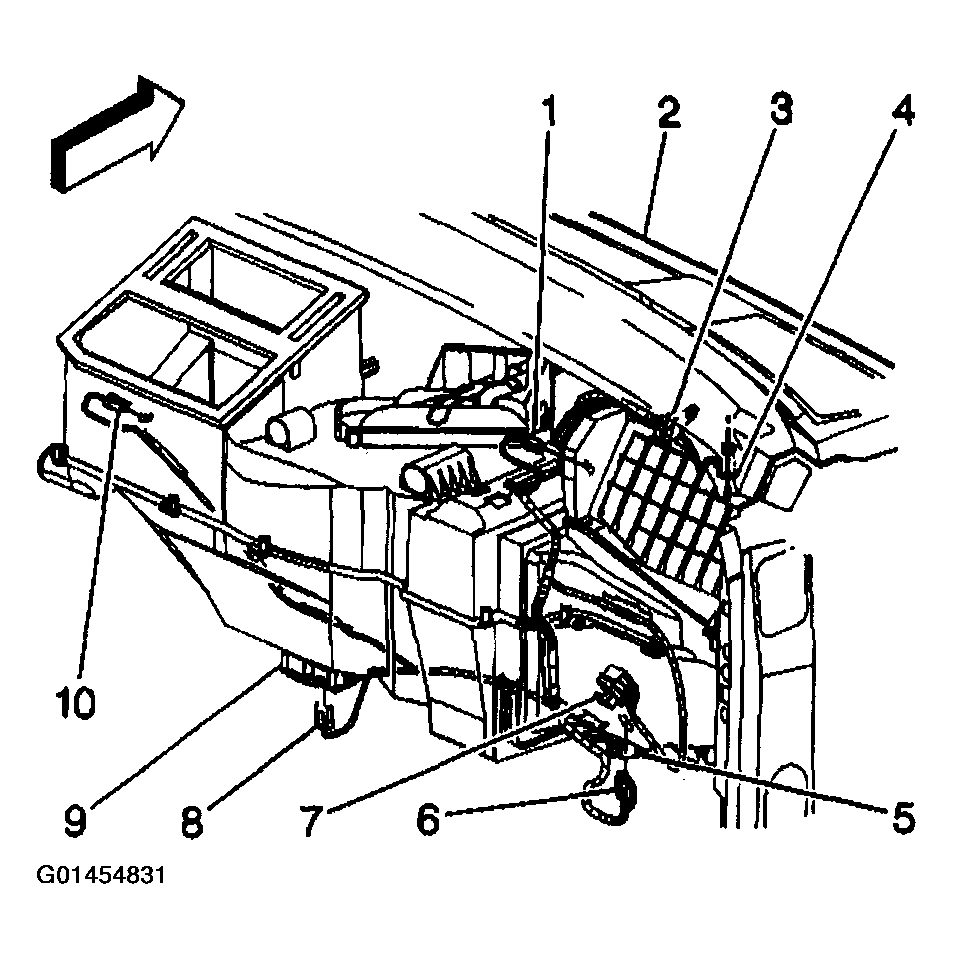

Fig 2: Connecting Electrical Connection At Mode Actuator
Courtesy of GENERAL MOTORS CORP.
Install the Body Control Module. Refer to BODY CONTROL MODULE REPLACEMENT in BODY CONTROL SYSTEM .
Install the floor air outlet duct extension (1) to the floor air duct (2).

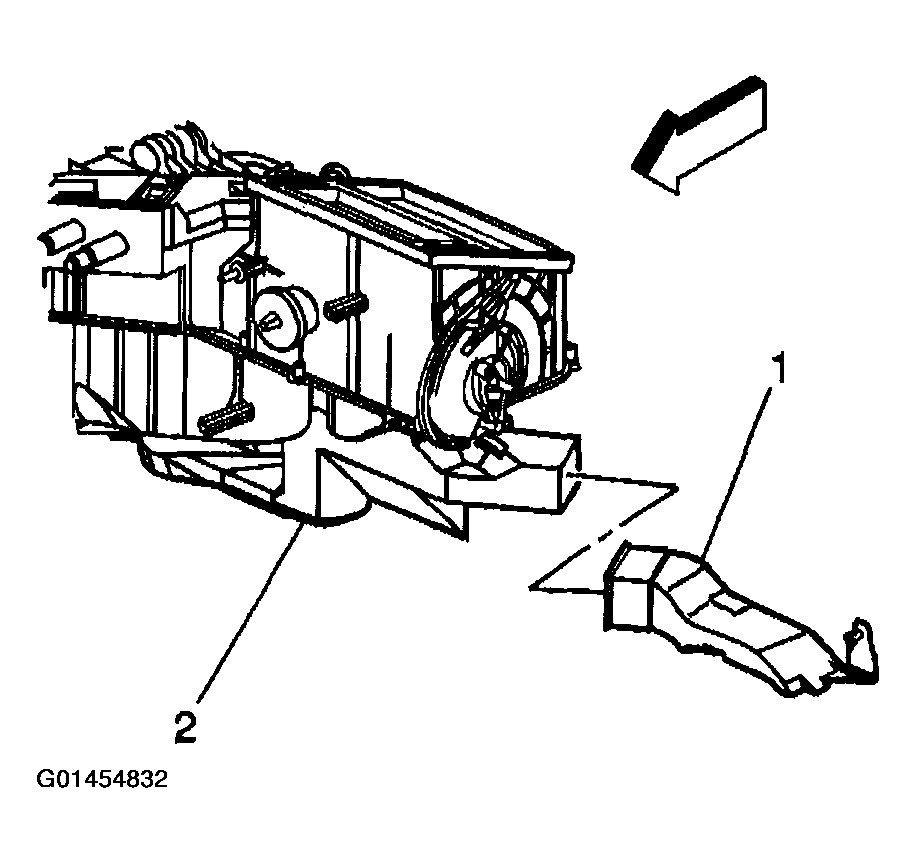

Fig 3: Installing Floor Air Outlet Duct Extension To Floor Duct
Courtesy of GENERAL MOTORS CORP.
