Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console roof screw.
  2. Remove the console (1) from the headliner.
  3. Disconnect the electrical connectors (3) from the console (1).
  4. Remove the console (1) from the vehicle.
  5. Remove the HVAC control assembly (2) from the console (1) by depressing the 4 tabs on the back of the HVAC control assembly (2).

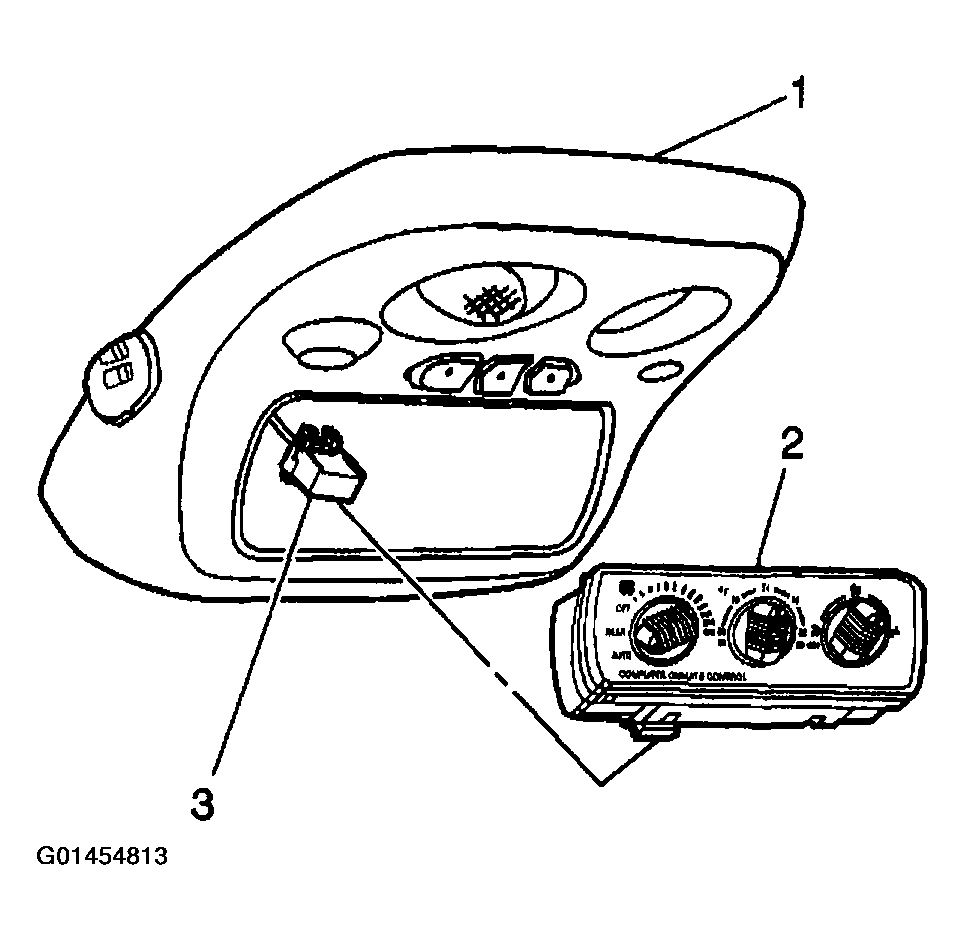

    Fig 1: Removing HVAC Control Assembly - Front Auxiliary
    G01454813Courtesy of GENERAL MOTORS CORP.
