Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear quarter trim panel.

    Refer to TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (UTILITY) or TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (SUBURBAN) in INTERIOR TRIM

  2. Disconnect the electrical connector from the auxiliary blower motor processor (1).
  3. Remove the retaining screws from the auxiliary blower motor processor (1).
  4. Remove the auxiliary blower motor processor (1) from the auxiliary HVAC module (2).

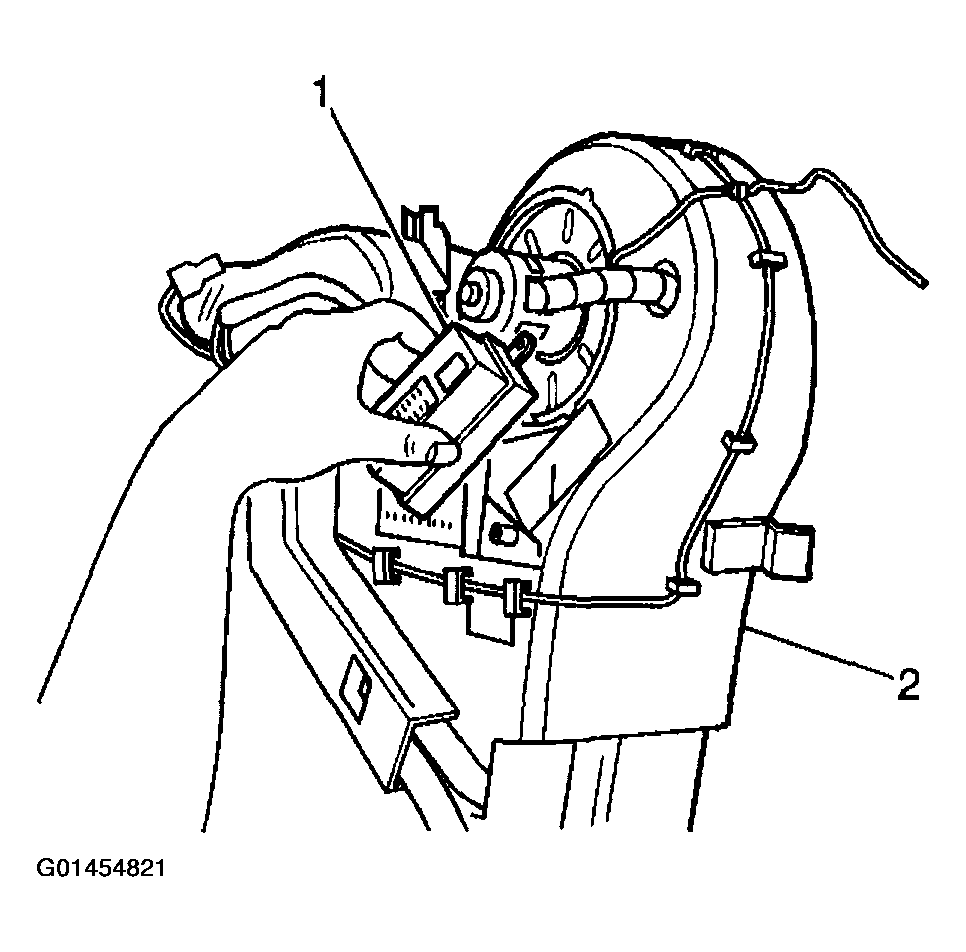

    Fig 1: Removing Blower Motor Processor - Auxiliary
    G01454821Courtesy of GENERAL MOTORS CORP.
