Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary blower motor processor (1) to the auxiliary HVAC module (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining screws to the auxiliary blower motor processor (1).

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  3. Connect the electrical connector to the auxiliary blower motor processor (1).
  4. Install the right rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (UTILITY) or TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (SUBURBAN) in INTERIOR TRIM .

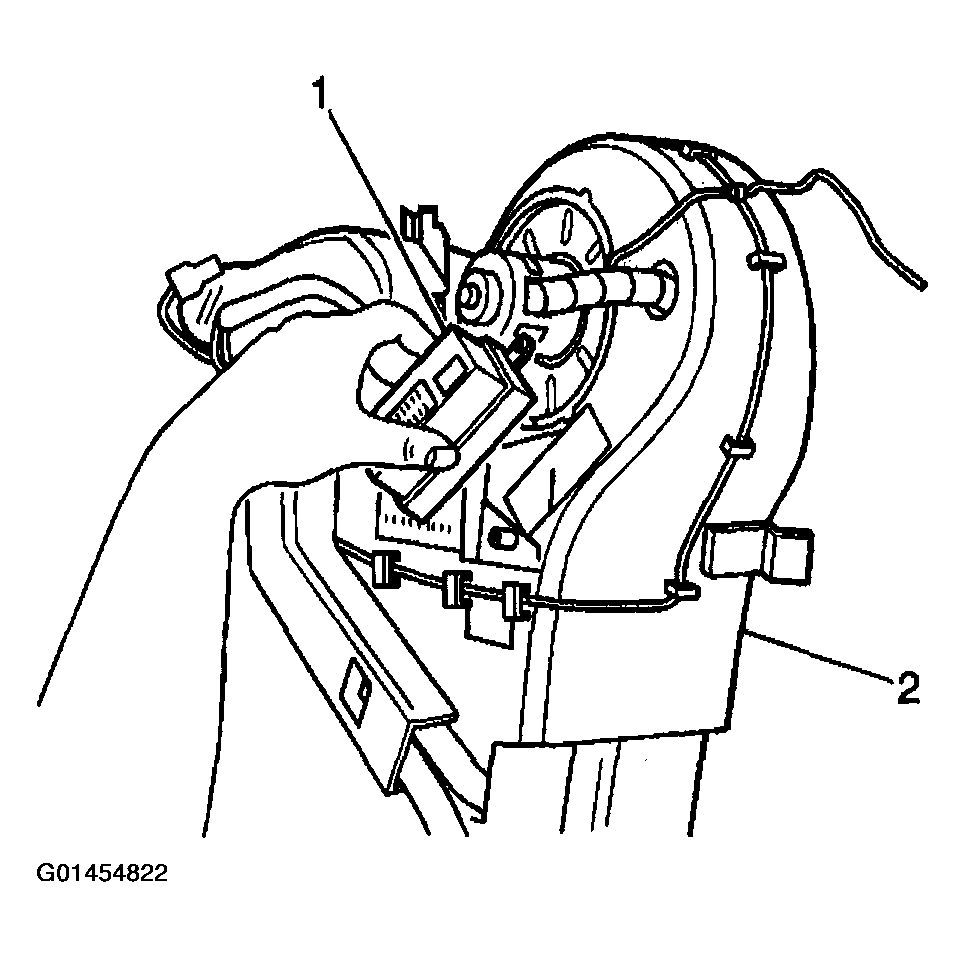

    Fig 1: Installing Blower Motor Processor - Auxiliary
    G01454822Courtesy of GENERAL MOTORS CORP.
