Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator grille from the vehicle. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) in EXTERIOR TRIM .
  2. Remove the push pin retainer from the sensor mounted on the radiator support brace.
  3. Disconnect the electrical connector from the sensor.

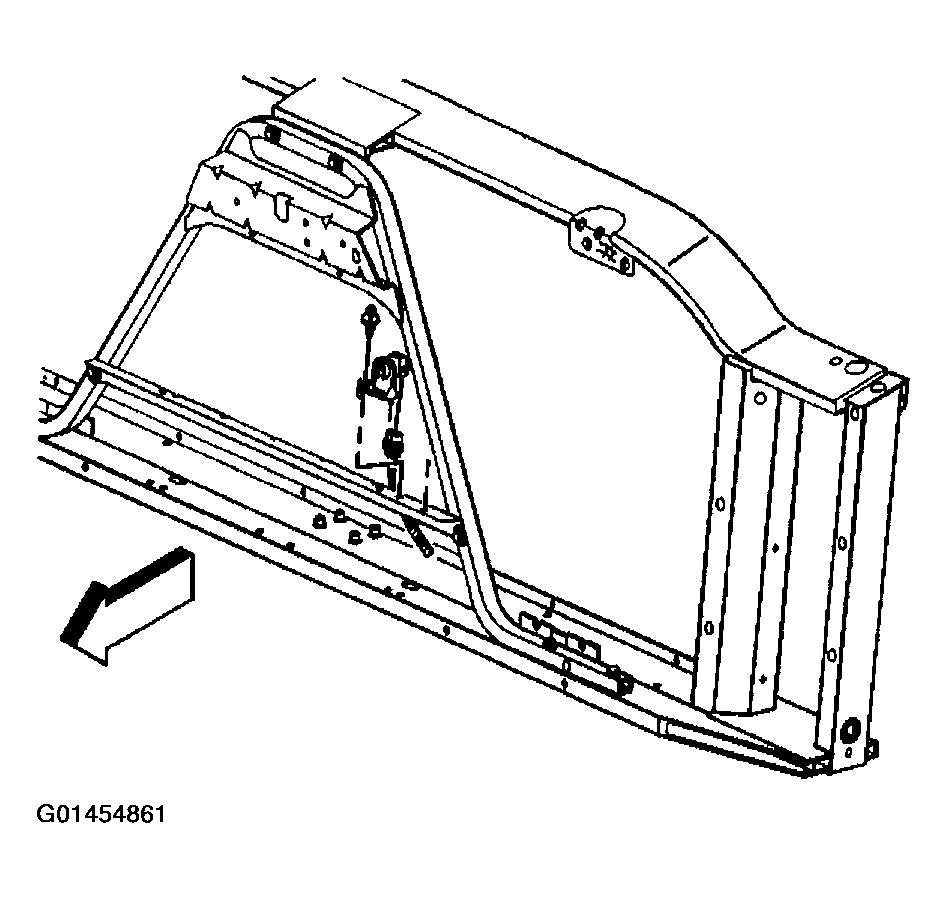

    Fig 1: Removing Ambient Air Temperature Sensor
    G01454861Courtesy of GENERAL MOTORS CORP.
