Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P upper trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in INSTRUMENT PANEL, GAGES, AND CONSOLE .
  2. Disconnect the electrical connector (1) from the upper right air temperature sensor (2).
  3. Remove the upper right air temperature sensor (1) from the air distributor duct (3).

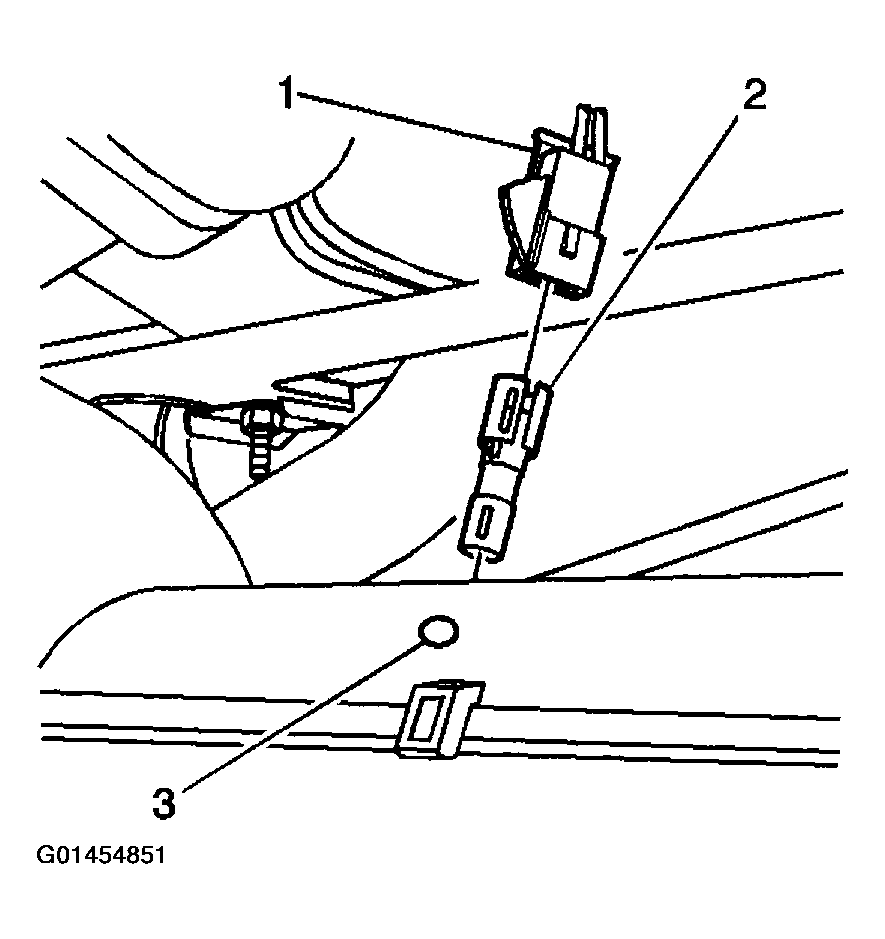

    Fig 1: Removing Air Temperature Sensor - Upper Right
    G01454851Courtesy of GENERAL MOTORS CORP.
