Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper right air temperature sensor (1) to the air distributor duct (3).
  2. Connect the electrical connector (1) from the upper right air temperature sensor (2).
  3. Install the I/P upper trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in INSTRUMENT PANEL, GAGES, AND CONSOLE .

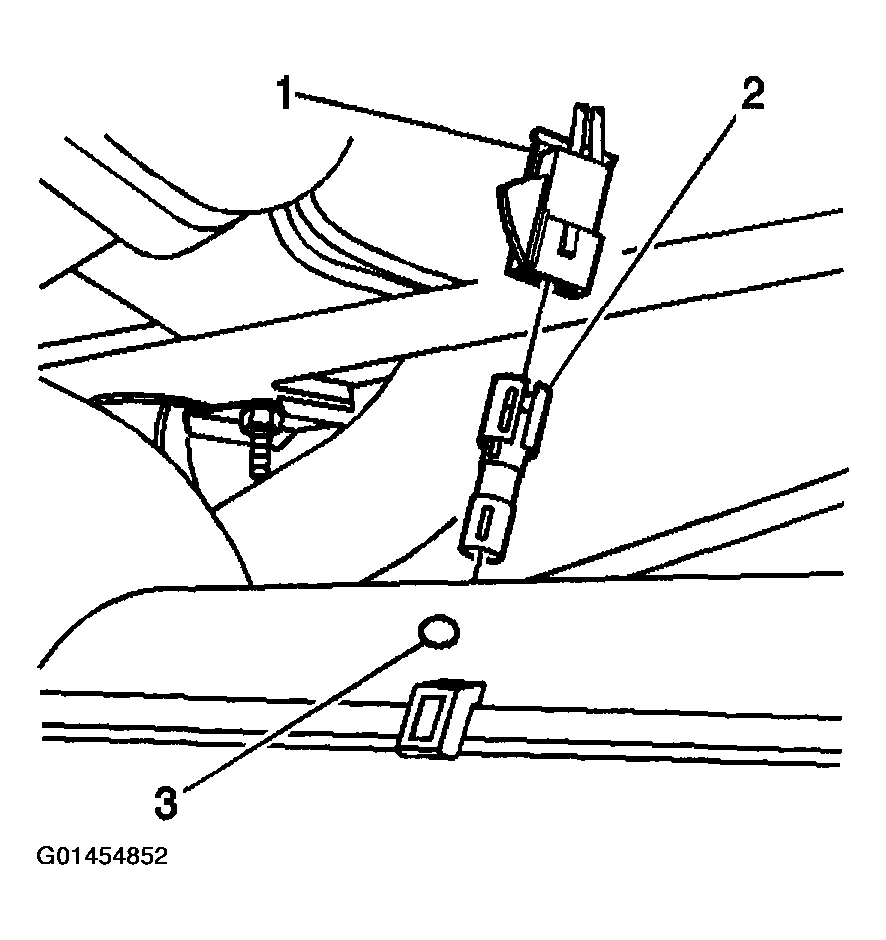

    Fig 1: Installing Air Temperature Sensor - Upper Right
    G01454852Courtesy of GENERAL MOTORS CORP.
