Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper left air temperature sensor (2) to the air distributor duct (1).
  2. Connect the electrical connector (3) to the upper left air temperature sensor (2).

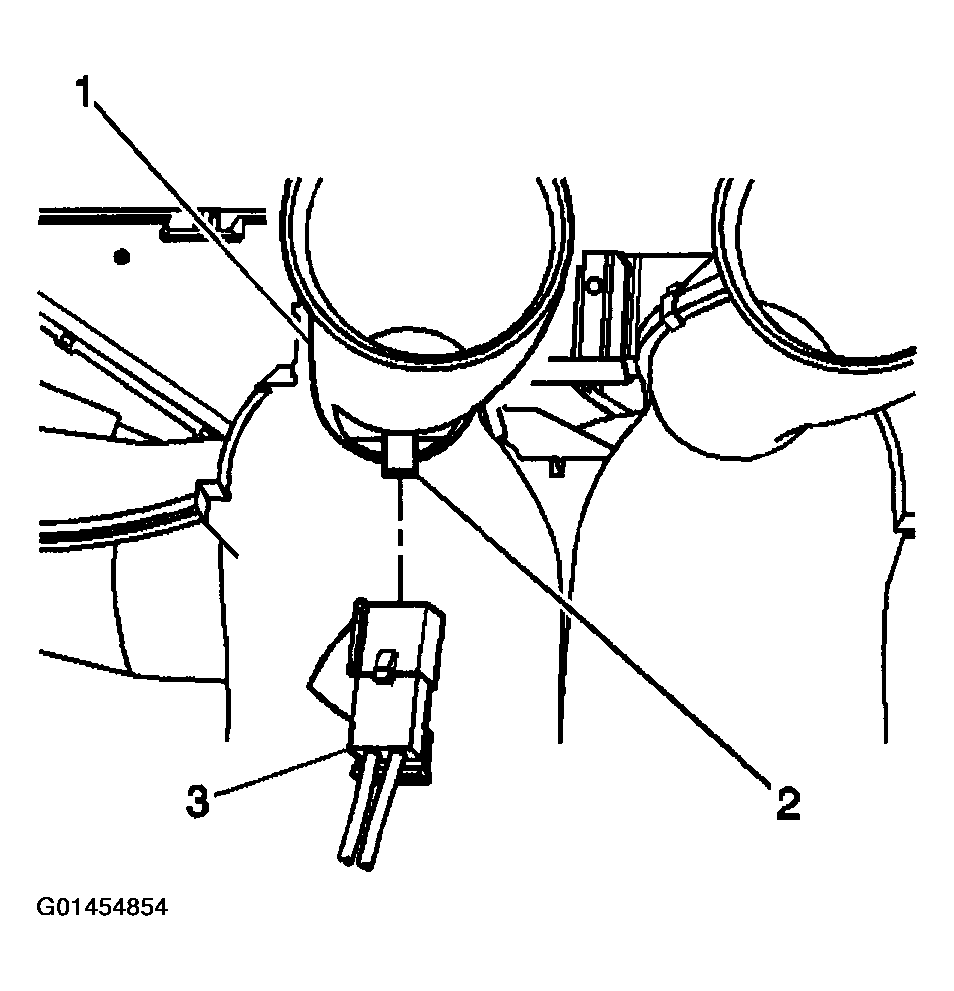

    Fig 1: Installing Air Temperature Sensor - Upper Left
    G01454854Courtesy of GENERAL MOTORS CORP.
