Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear upper A/C temperature sensor (11) to the air distribution duct.
  2. Connect the electrical connector to the rear upper A/C temperature sensor (11).
  3. Install the right side C-pillar trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (UTILITY) or TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (SUBURBAN) in INTERIOR TRIM .

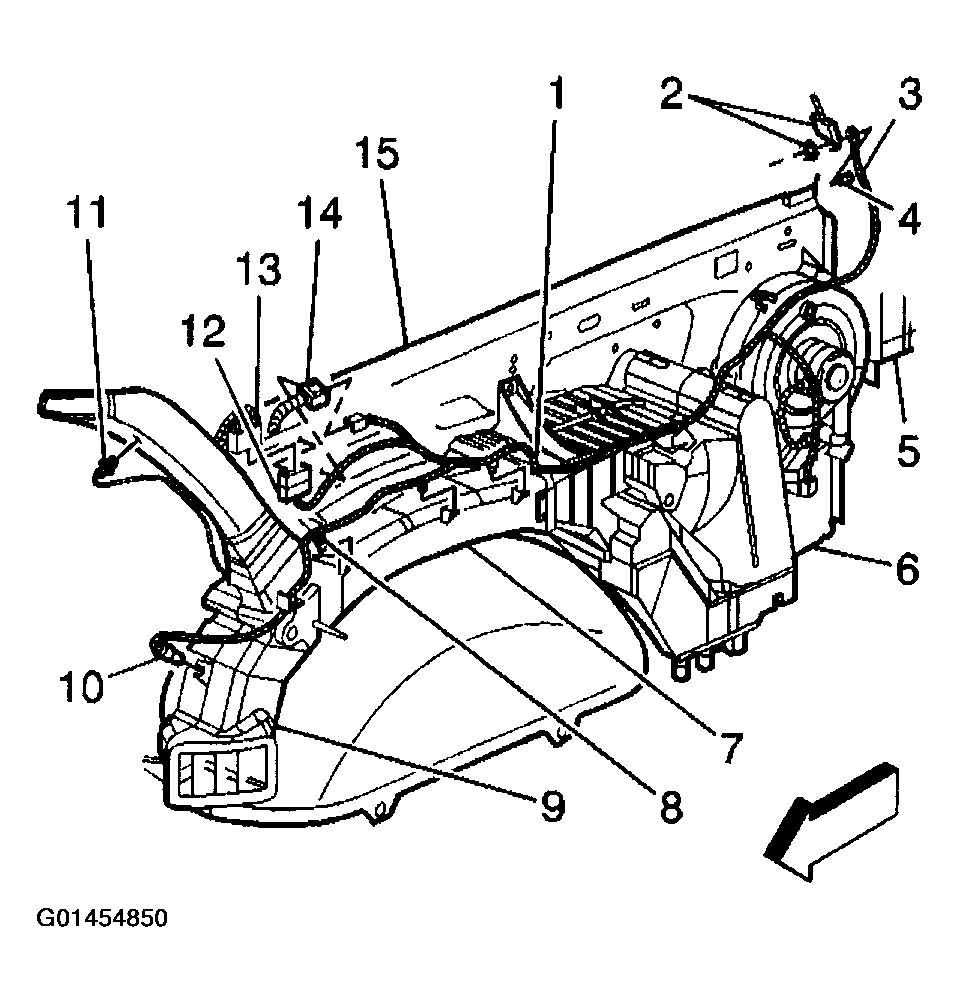

    Fig 1: Installing Air Temperature Sensor - Upper Auxiliary
    G01454850Courtesy of GENERAL MOTORS CORP.
