Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower right air temperature sensor (1).
  2. Connect the electrical connector to the lower right air temperature sensor (1).
  3. Install the center console. Refer to CONSOLE REPLACEMENT (WITH CONSOLE MOUNTING BRACKET) or CONSOLE REPLACEMENT (W/O CONSOLE MOUNTING BRACKET) in INSTRUMENT PANEL, GAGES, AND CONSOLE .
  4. Install the right floor duct. Refer to AIR OUTLET DUCT REPLACEMENT - FLOOR, RH in HEATING, VENTILATION AND AIR CONDITIONING .
  5. Install the I/P lower closeout panel. Refer to INSULATOR REPLACEMENT - INSTRUMENT PANEL (I/P) in INSTRUMENT PANEL, GAGES, AND CONSOLE .

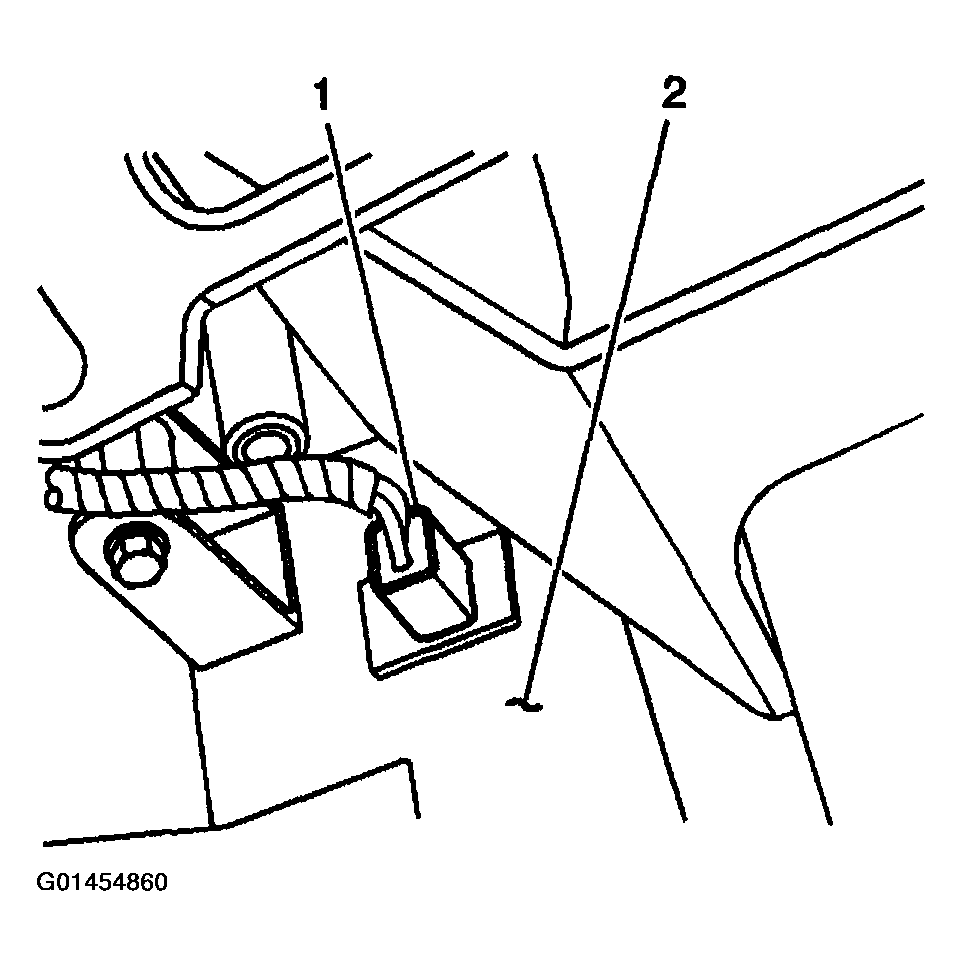

    Fig 1: Installing Air Temperature Sensor - Lower Right
    G01454860Courtesy of GENERAL MOTORS CORP.
