Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the electrical connector from the lower left air temperature sensor (1).
Remove the lower left air temperature sensor (1) from the HVAC module (2).

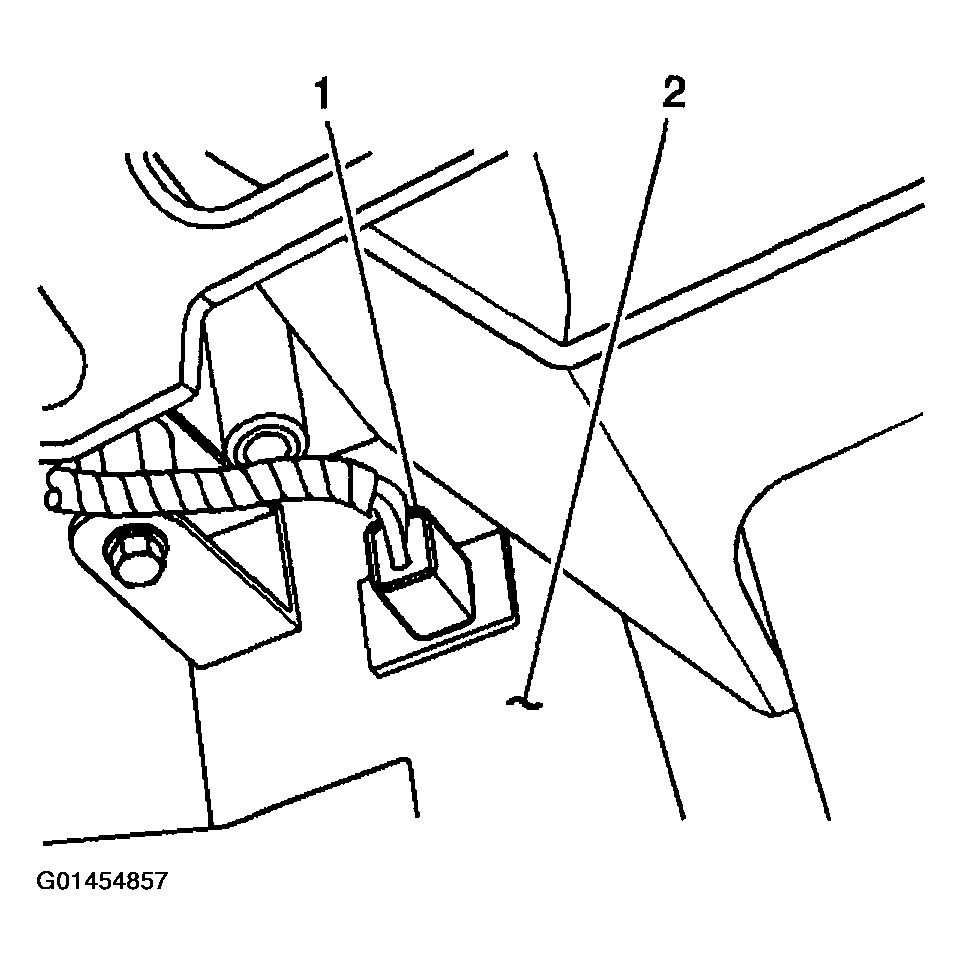

Fig 1: Removing Air Temperature Sensor - Lower Left
Courtesy of GENERAL MOTORS CORP.
