Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side C-pillar trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (UTILITY) or TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (SUBURBAN) in INTERIOR TRIM .
  2. Disconnect the electrical connector from the auxiliary lower A/C temperature sensor (10).
  3. Remove the auxiliary lower A/C temperature sensor (10) from the air distribution duct.

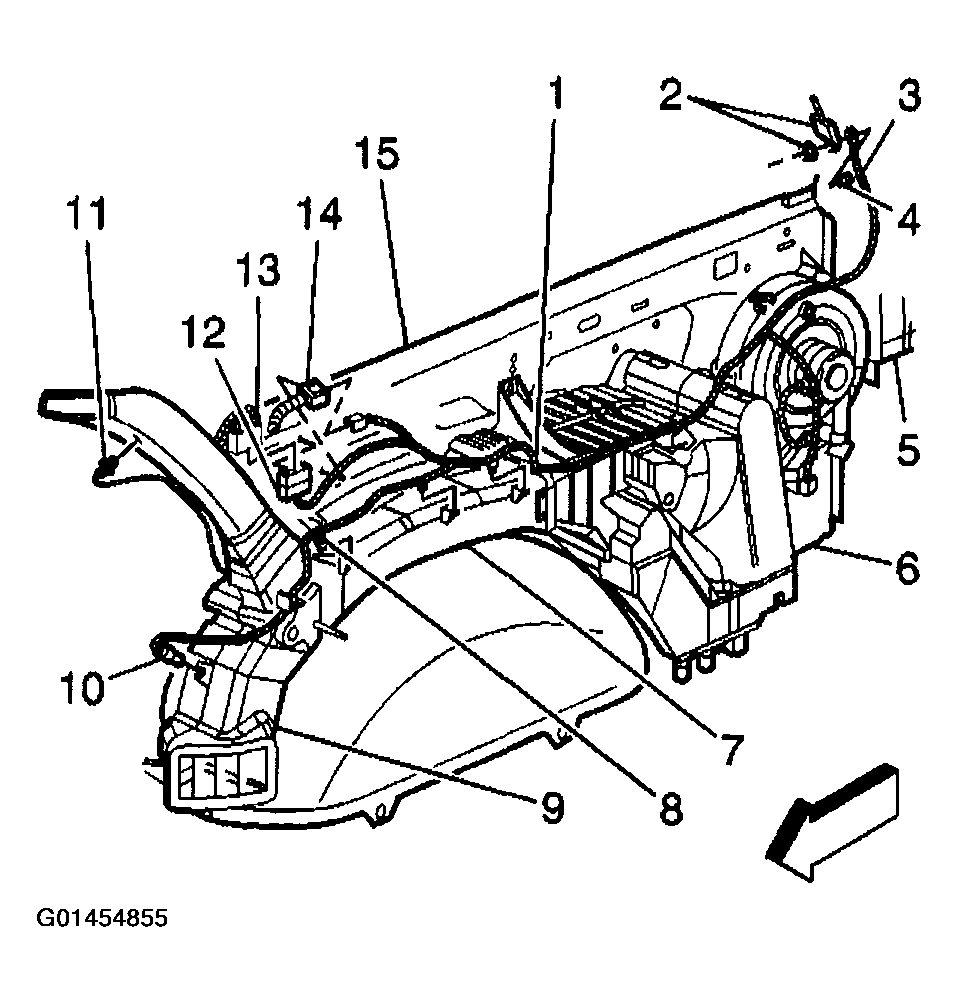

    Fig 1: Removing Air Temperature Sensor - Lower Auxiliary
    G01454855Courtesy of GENERAL MOTORS CORP.
