Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in INSTRUMENT PANEL, GAGES, AND CONSOLE .
  2. Disconnect the electrical connector (4) from the right air temperature actuator (3).
  3. Remove the screws from the right air temperature actuator (3).
  4. Remove the right air temperature actuator (3) from the HVAC module assembly (2).

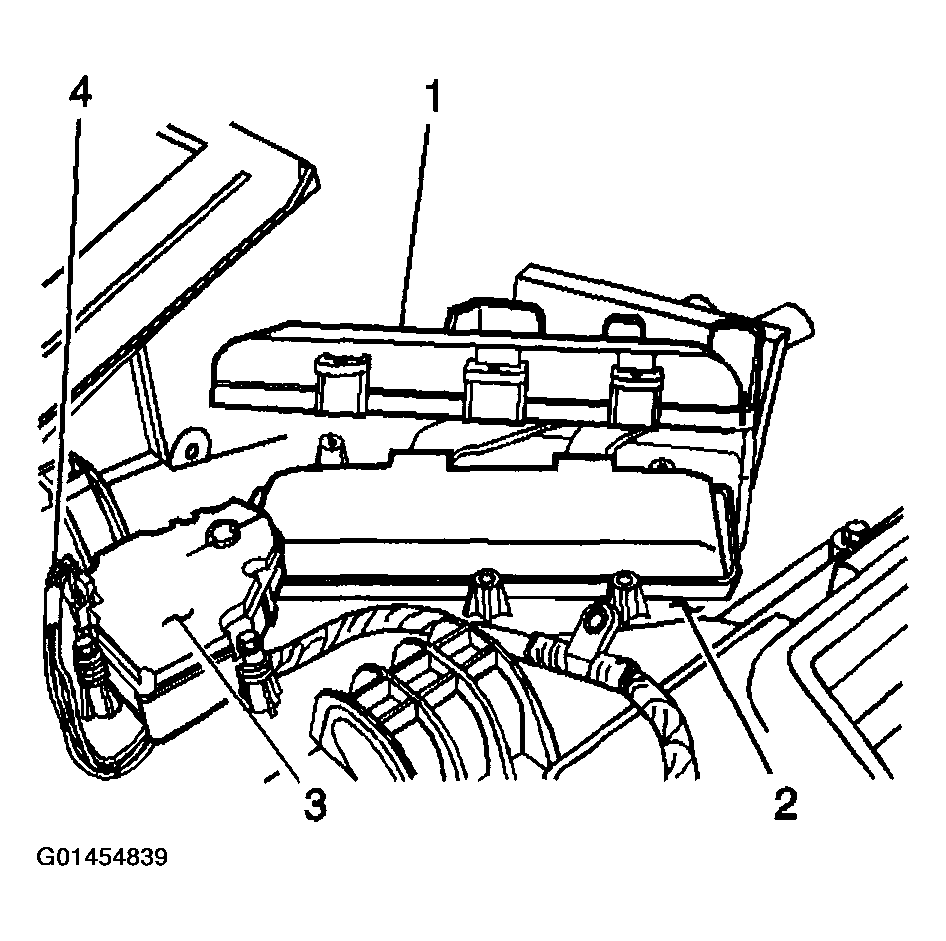

    Fig 1: Removing Air Temperature Actuator - Right
    G01454839Courtesy of GENERAL MOTORS CORP.
