Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right air temperature actuator (3) from the HVAC module assembly (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the right air temperature actuator (3).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Connect the electrical connector to the right air temperature actuator.
  4. Install the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in INSTRUMENT PANEL, GAGES, AND CONSOLE .
  5. Reprogram the air temperature actuator.

    Refer to Re-Calibrating Actuators  .

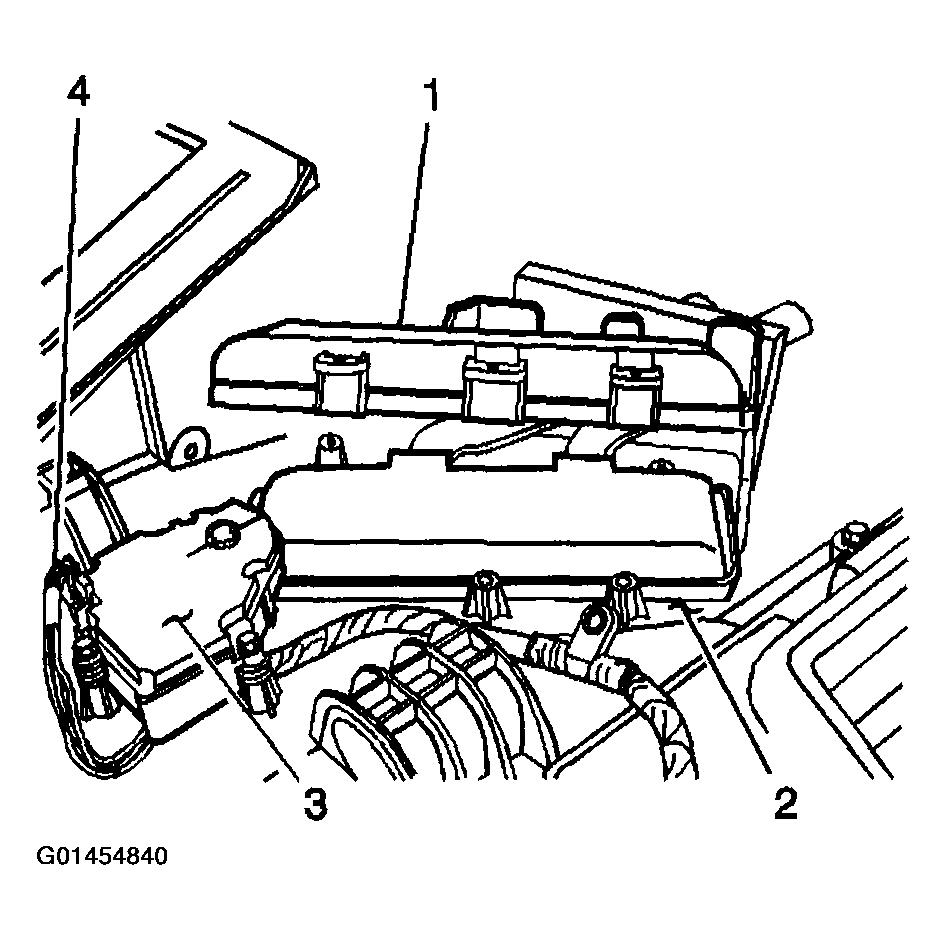

    Fig 1: Installing Air Temperature Actuator - Right
    G01454840Courtesy of GENERAL MOTORS CORP.
