Scan Tool Data List

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

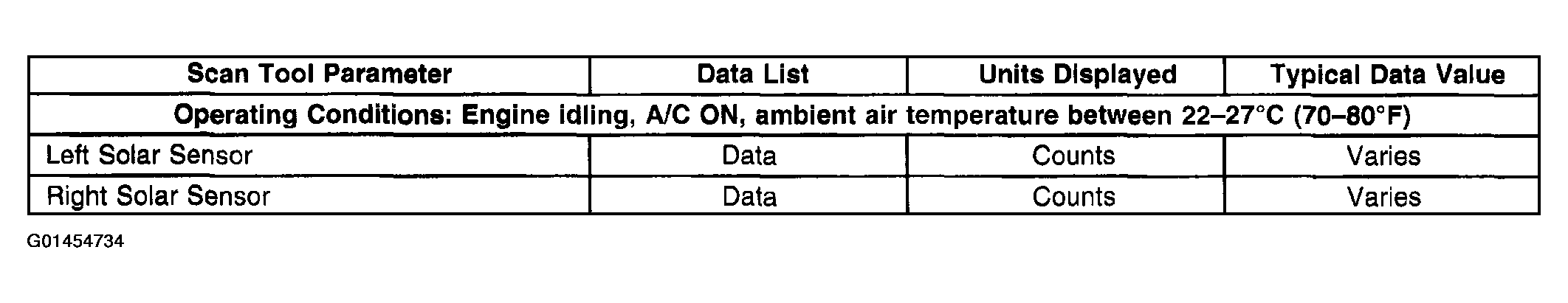

Fig 1: Body Control Module Reference Data Table

Courtesy of GENERAL MOTORS CORP.

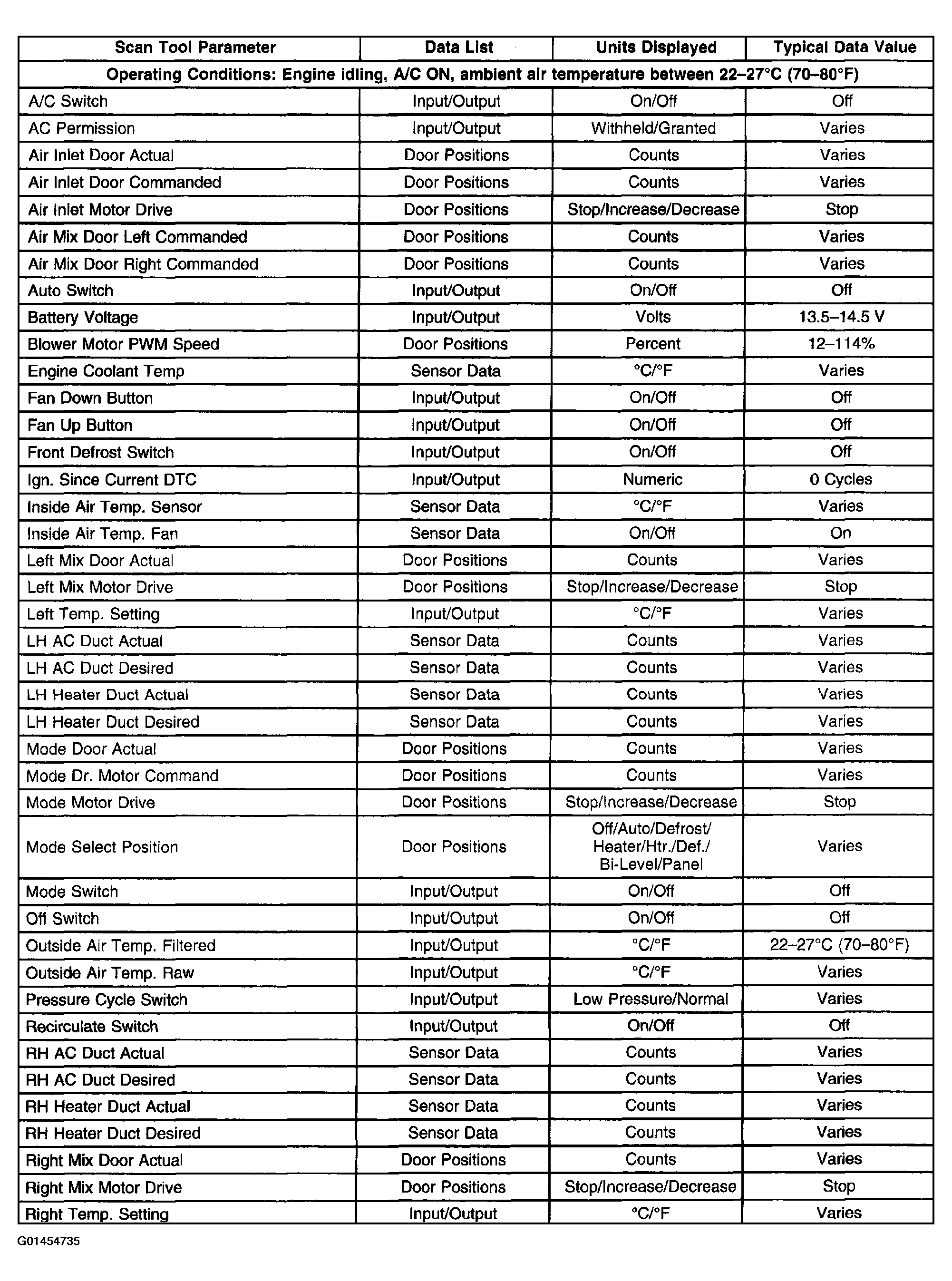

Fig 2: Heating And Air Conditioning Reference Data Table

Courtesy of GENERAL MOTORS CORP.

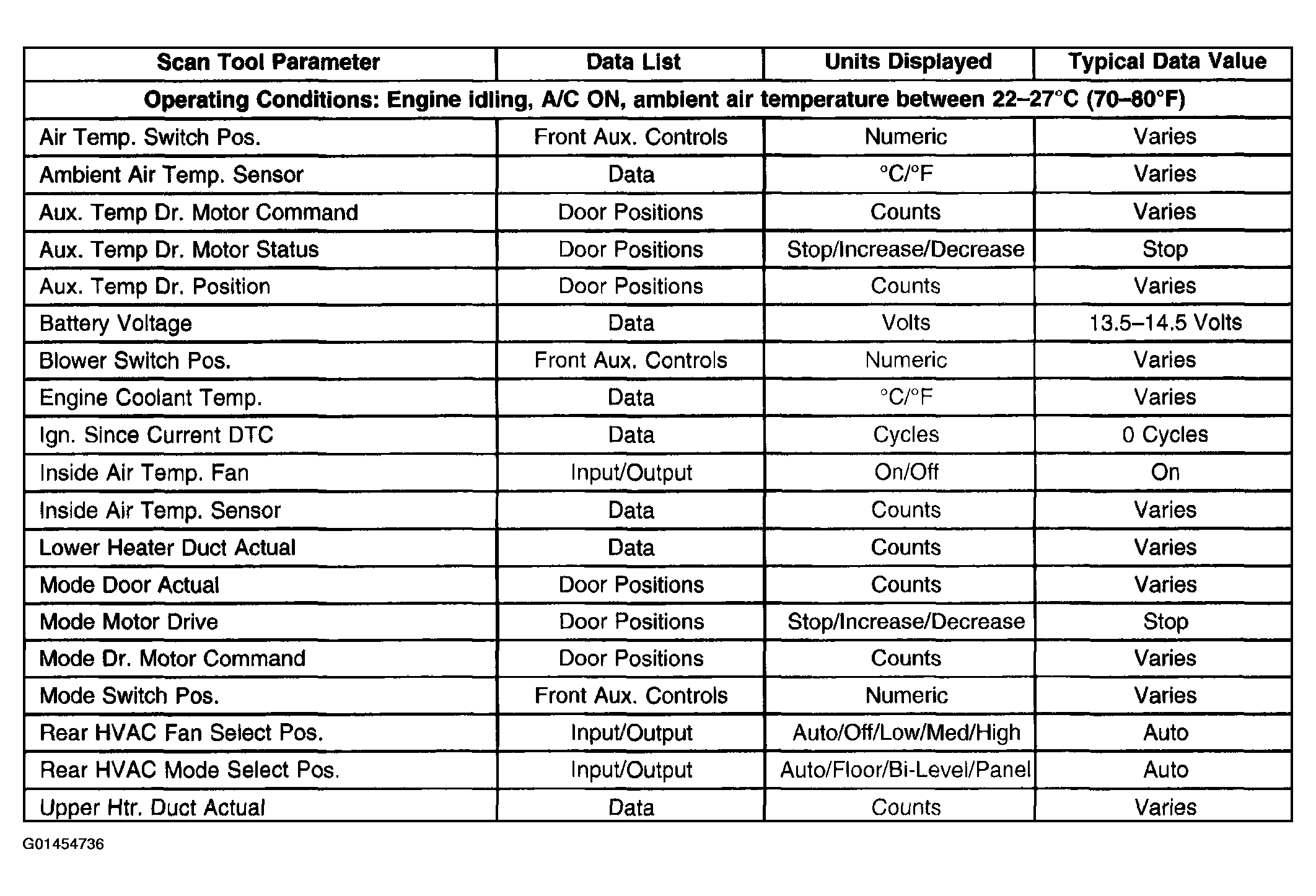

Fig 3: Rear Auxiliary Climate Module Reference Data Table

Courtesy of GENERAL MOTORS CORP.

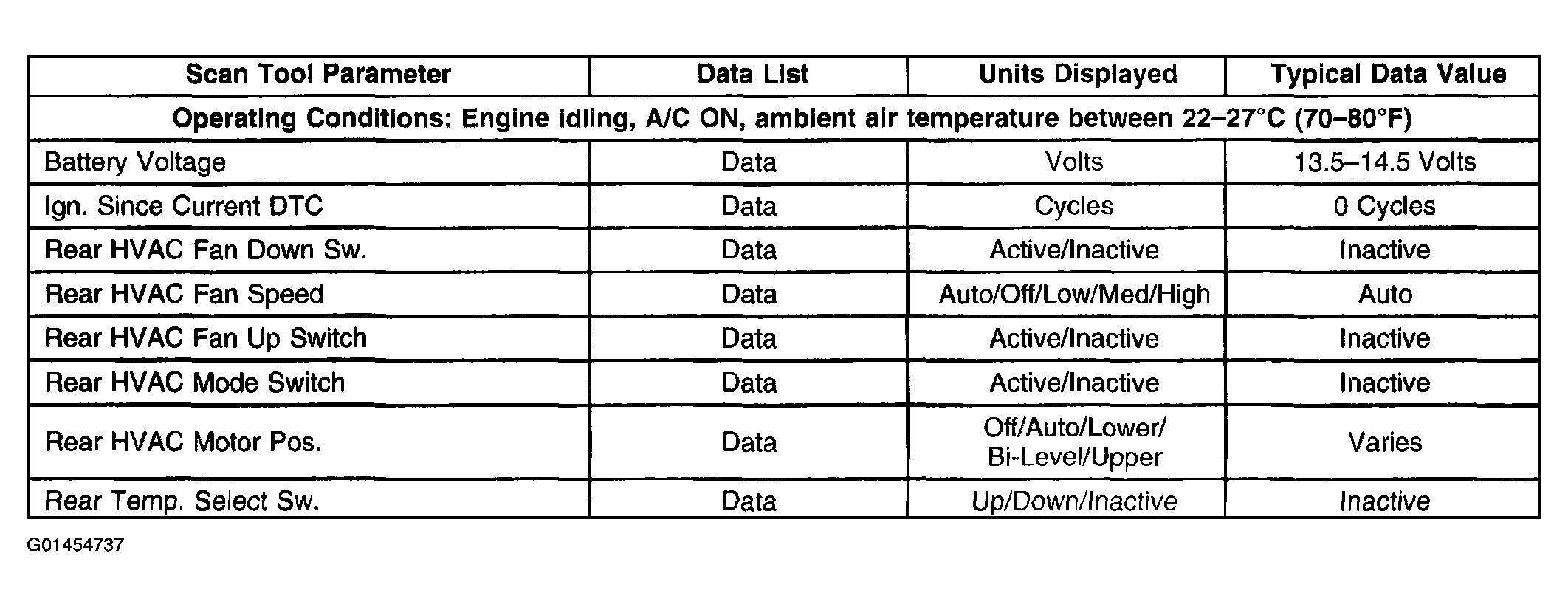

Fig 4: Rear HVAC Reference Data Table

Courtesy of GENERAL MOTORS CORP.

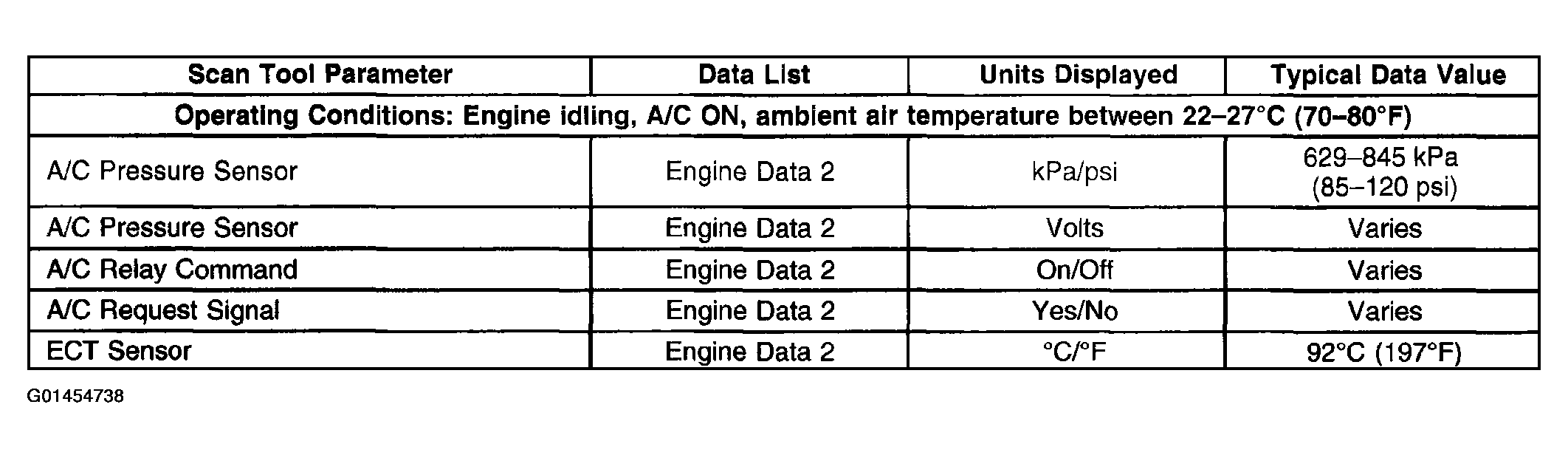

Fig 5: Engine Reference Data Table

Courtesy of GENERAL MOTORS CORP.
