Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

2. These actions will disable the HVAC control module output to powertrain control module (PCM).

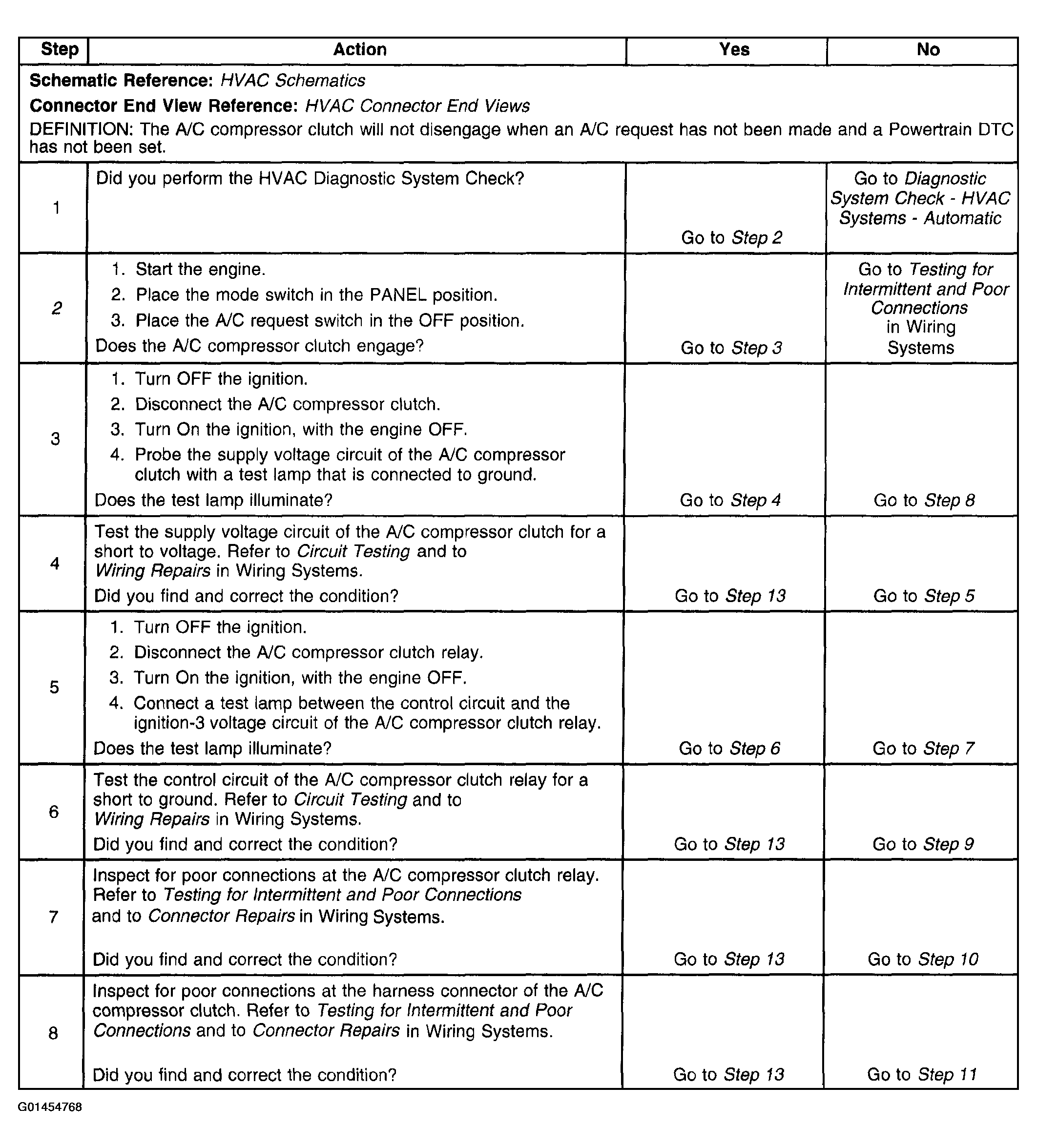

Fig 1: Diagnosis Procedure HVAC Compressor Clutch Does Not Disengage (Step 1 To 8)
Courtesy of GENERAL MOTORS CORP.

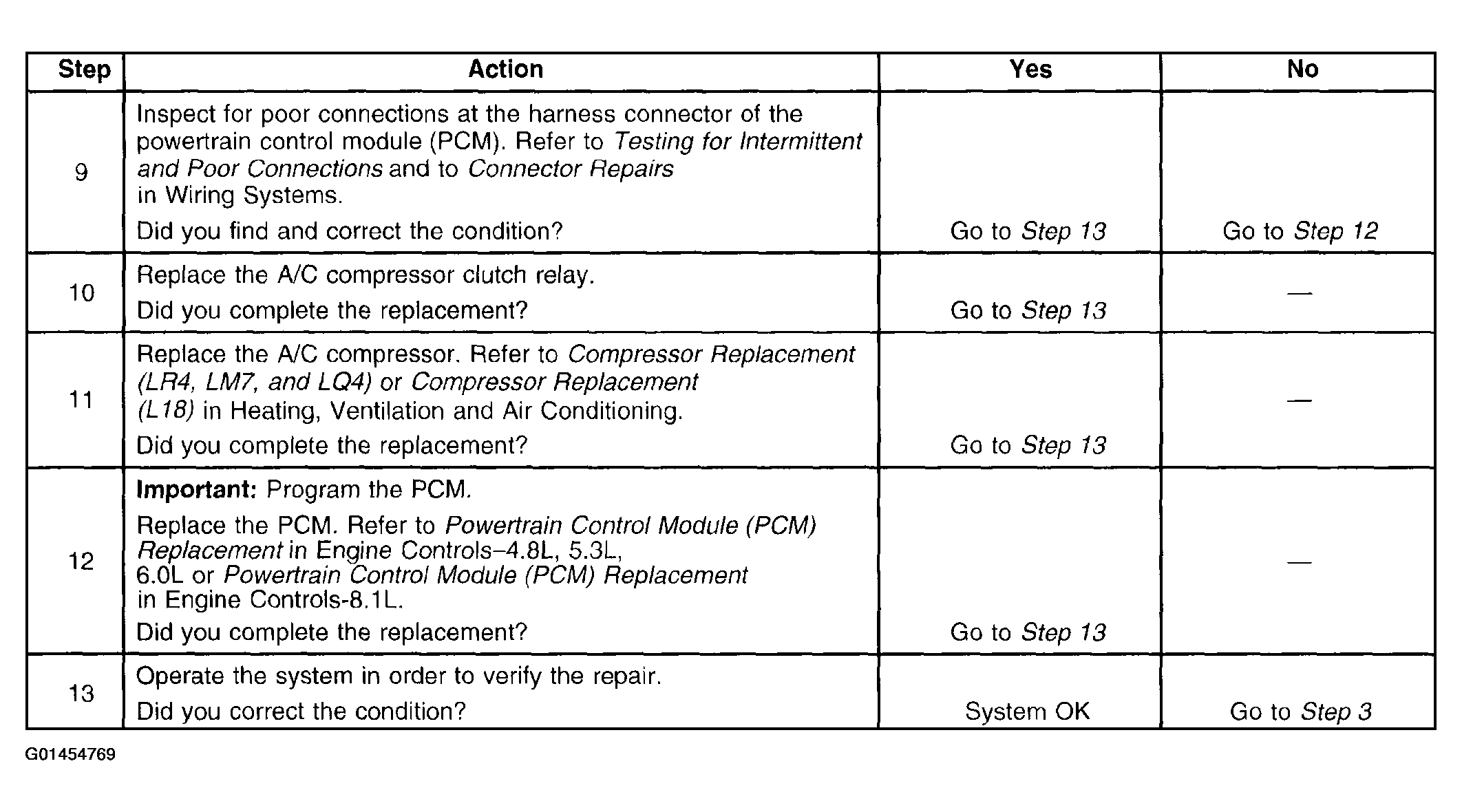

Fig 2: Diagnosis Procedure HVAC Compressor Clutch Does Not Disengage (Step 9 To 13)
Courtesy of GENERAL MOTORS CORP.
