Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 4. The blower motor parameter must be commanded ON before an OFF command will function.

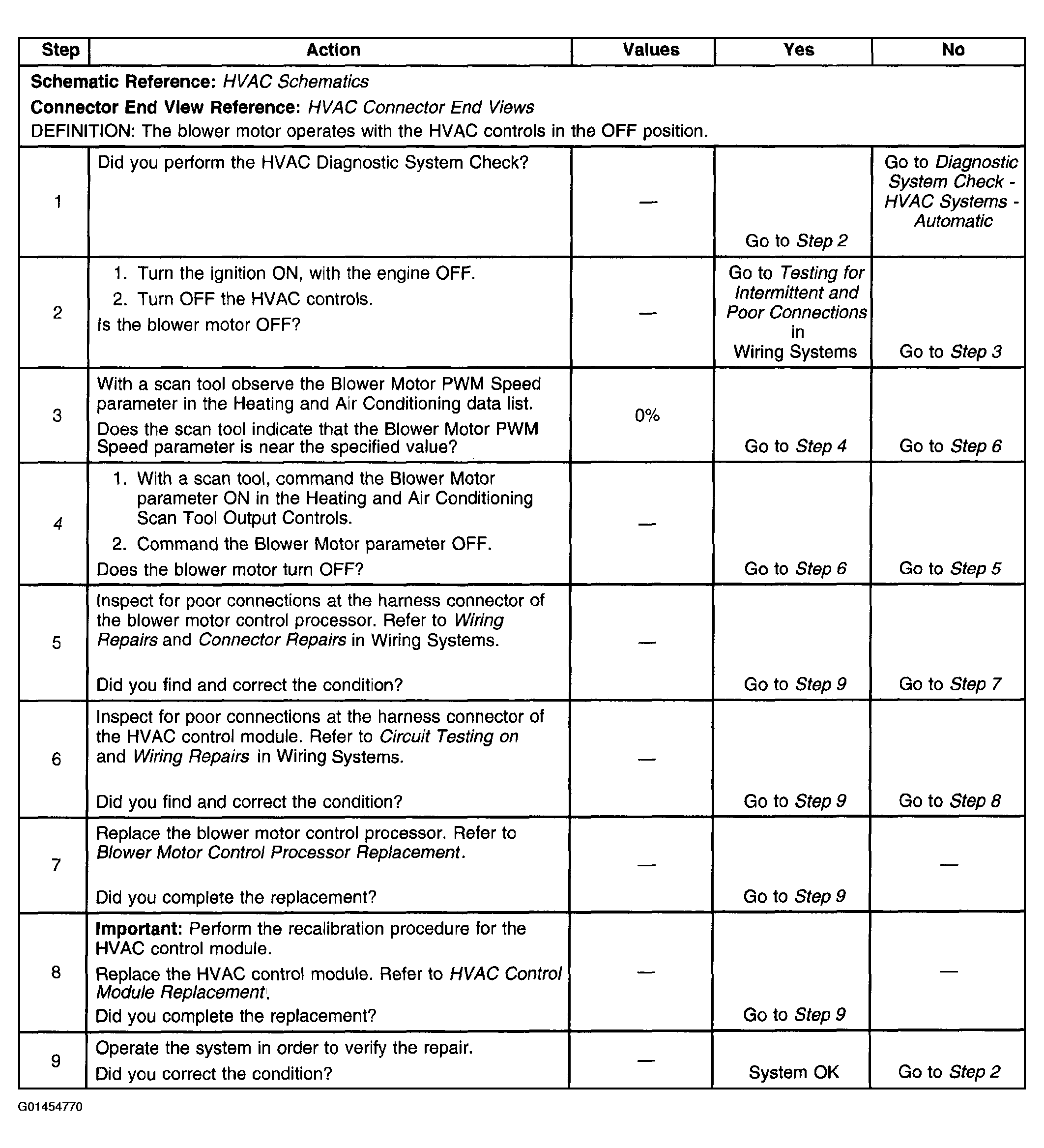

    Fig 1: Diagnosis Procedure Blower Motor Always On
    G01454770Courtesy of GENERAL MOTORS CORP.
