Rear Hoist Pads: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The rear hoist pads must not contact the body rocker panels or the floor pan.

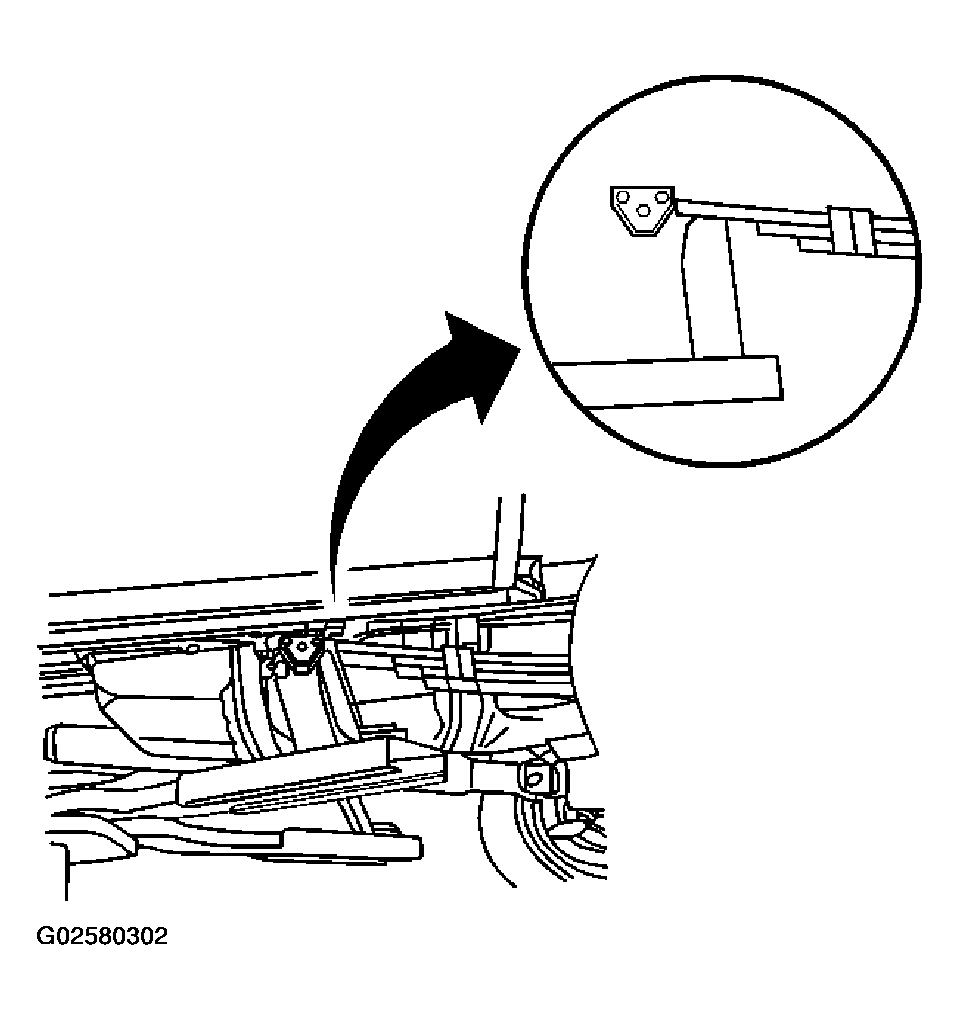

Position the (body/frame contact) rear hoist pads under the rear spring, just behind the hanger, for the tip-up pad only.
Vehicles with rear leaf springs.
