Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to REFRIGERANT RECOVERY AND RECHARGING  .
  2. Remove the suction hose mounting bolt from the A/C compressor.
  3. Remove the suction hose (2) from the A/C compressor.

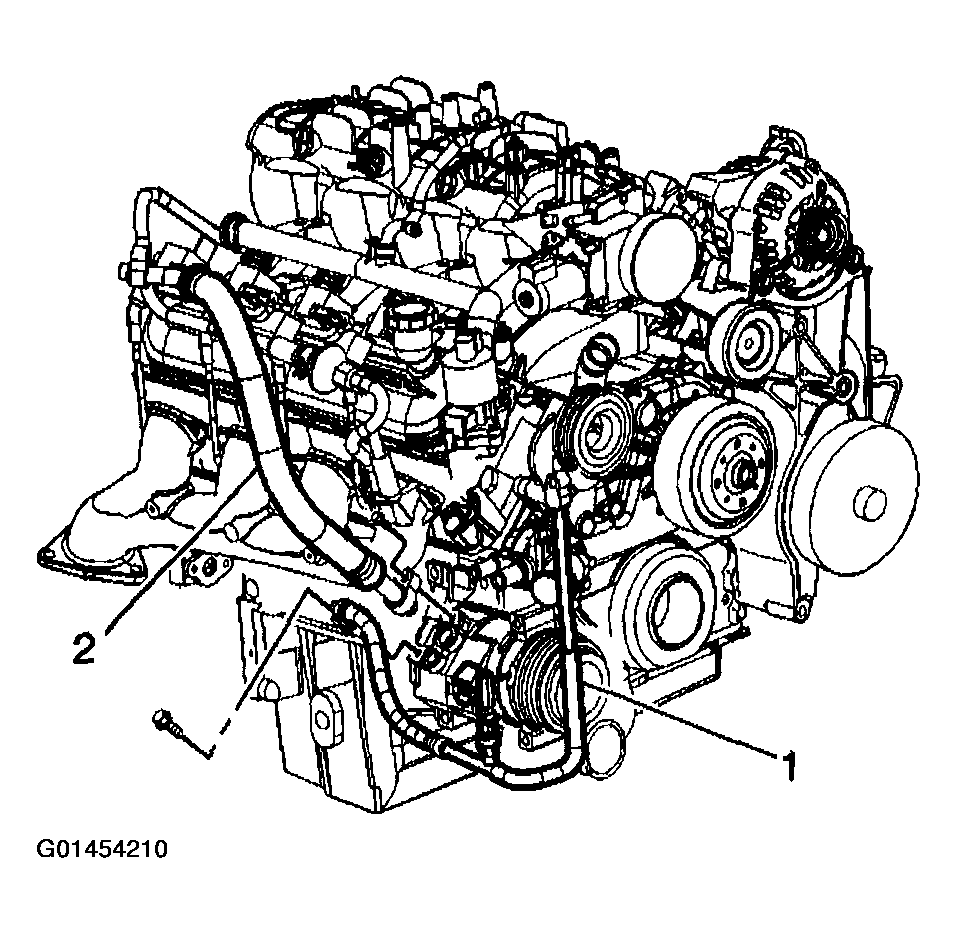

    Fig 1: Removing Suction Hose
    G01454210Courtesy of GENERAL MOTORS CORP.
  4. Remove the suction hose nut from the accumulator.
  5. Remove the suction hose from the accumulator.
  6. Remove the suction hose assembly from the vehicle.
  7. Discard all of the used sealing washers. Cap the system openings.

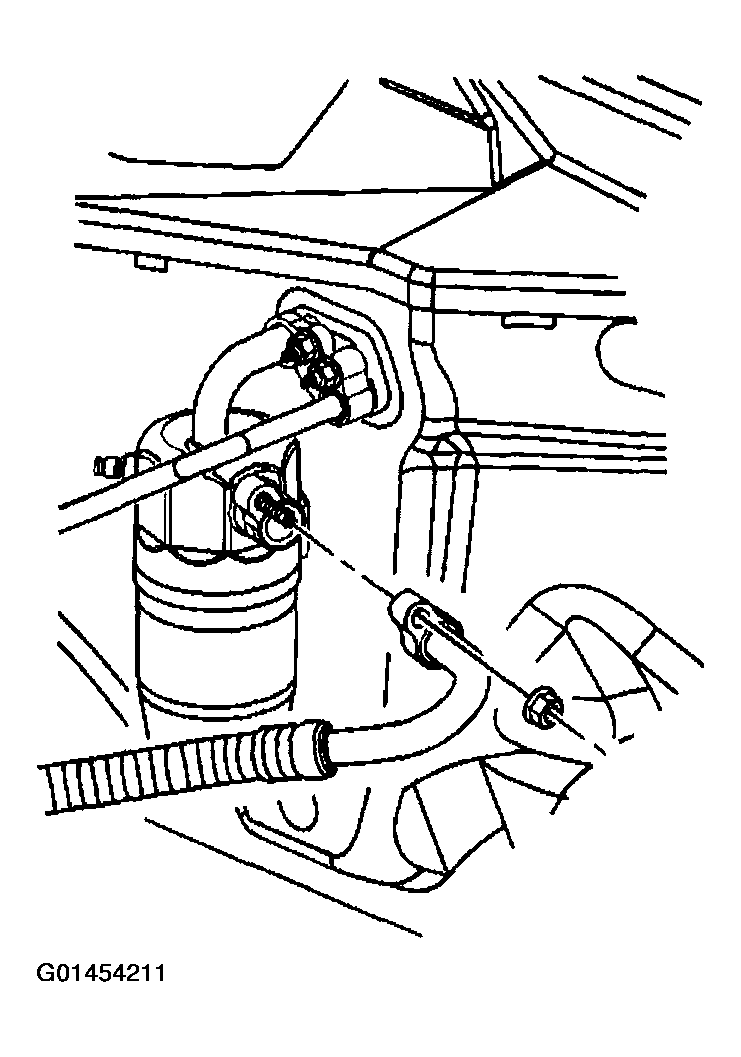

    Fig 2: Removing Suction Hose From Accumulator
    G01454211Courtesy of GENERAL MOTORS CORP.
