Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the suction hose to the vehicle.
  2. Install the suction hose to the accumulator.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the suction hose nut to the accumulator.

    Tighten

    Tighten the nut to 16 N.m (12 lb ft).

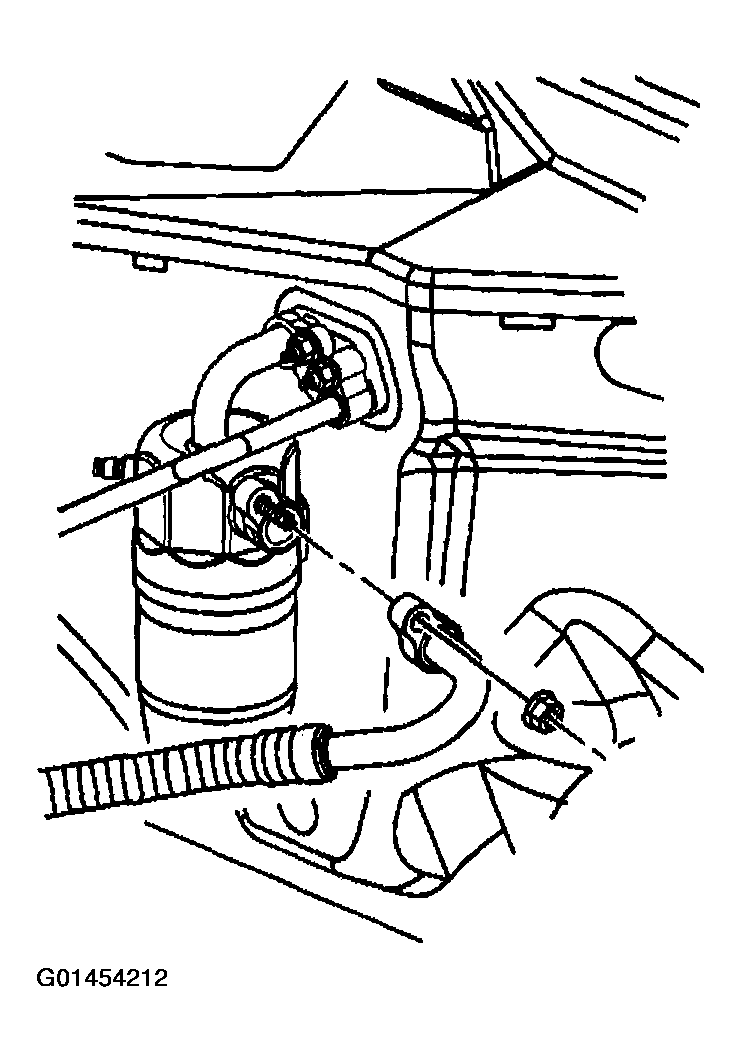

    Fig 1: Installing Suction Hose To Accumulator
    G01454212Courtesy of GENERAL MOTORS CORP.
  4. Install the suction hose (2) to the compressor using new sealing washers. Refer to SEALING WASHER REPLACEMENT  .
  5. Install the suction hose mounting bolt to the A/C compressor.

    Tighten

    Tighten the bolt to 16 N.m (12 lb ft).

  6. Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING  .
  7. Leak test the fittings of the component using the J 39400-A  .

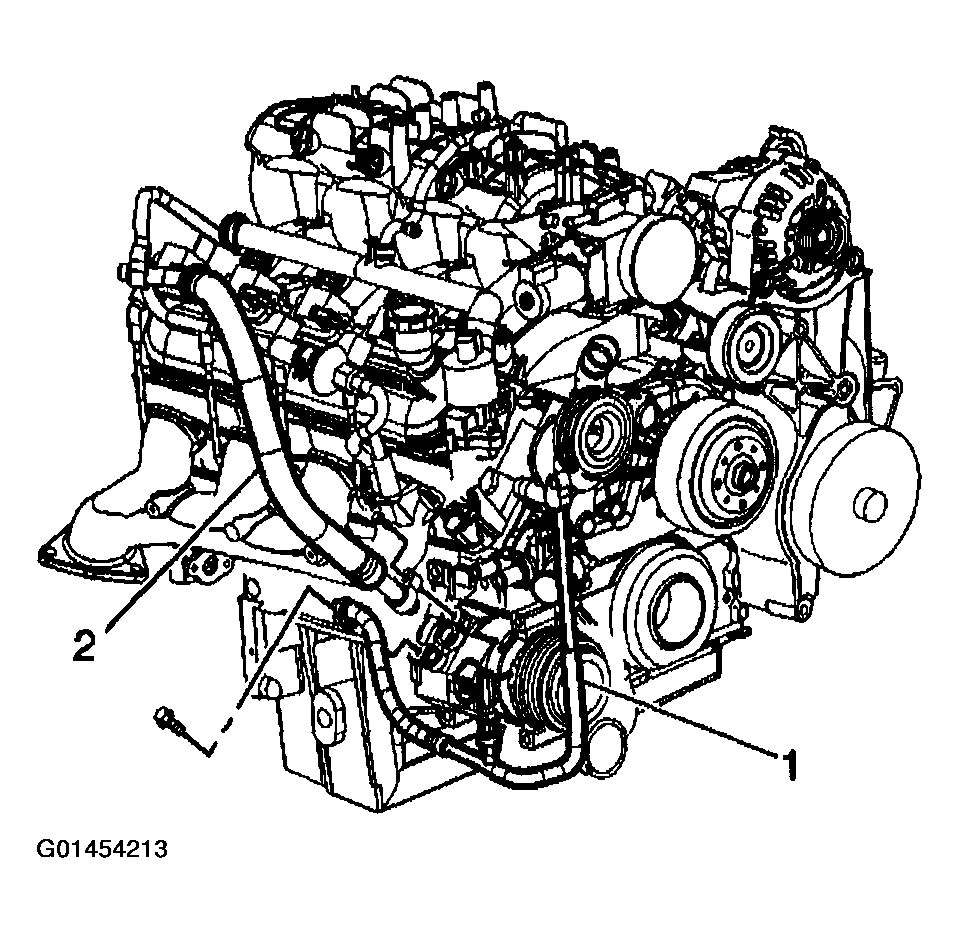

    Fig 2: Installing Suction Hose
    G01454213Courtesy of GENERAL MOTORS CORP.
