Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module assembly. Refer to HVAC MODULE ASSEMBLY REPLACEMENT  .
  2. Disconnect the recirculation actuator electrical connection (1).

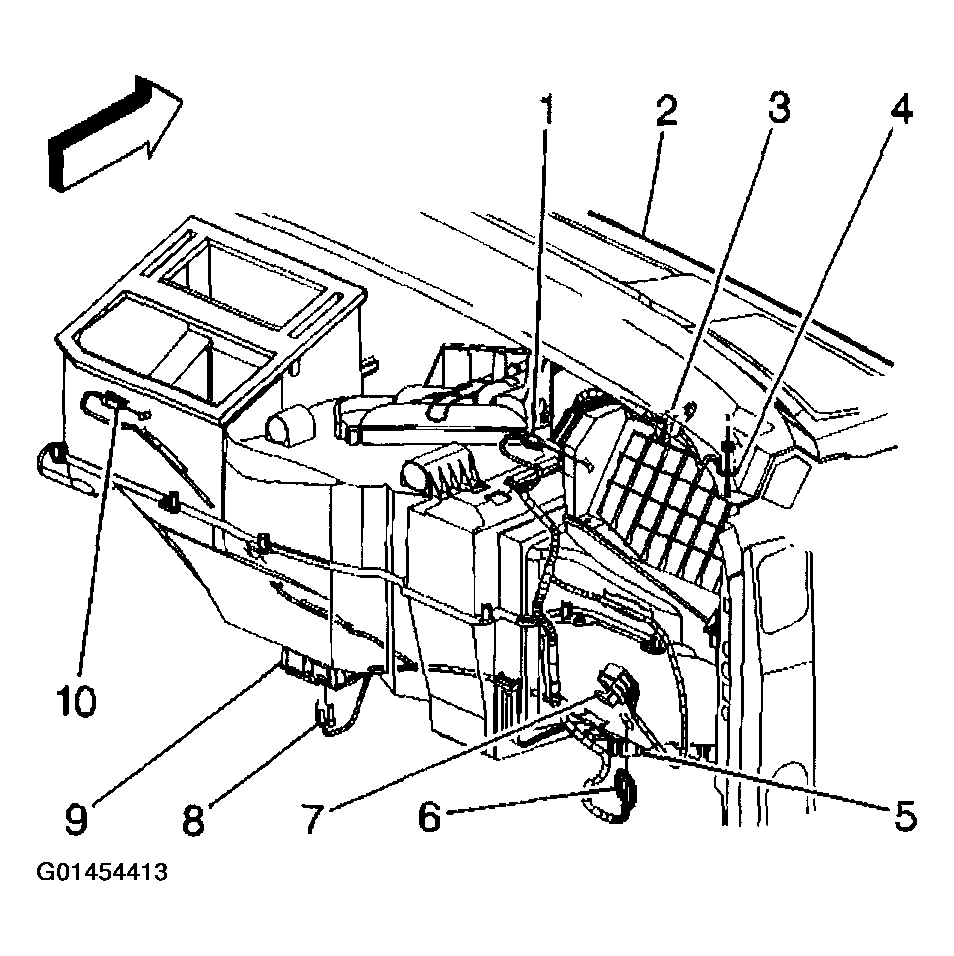

    Fig 1: Removing HVAC Module Assembly
    G01454413Courtesy of GENERAL MOTORS CORP.
  3. Remove the recirculation actuator mounting screws.

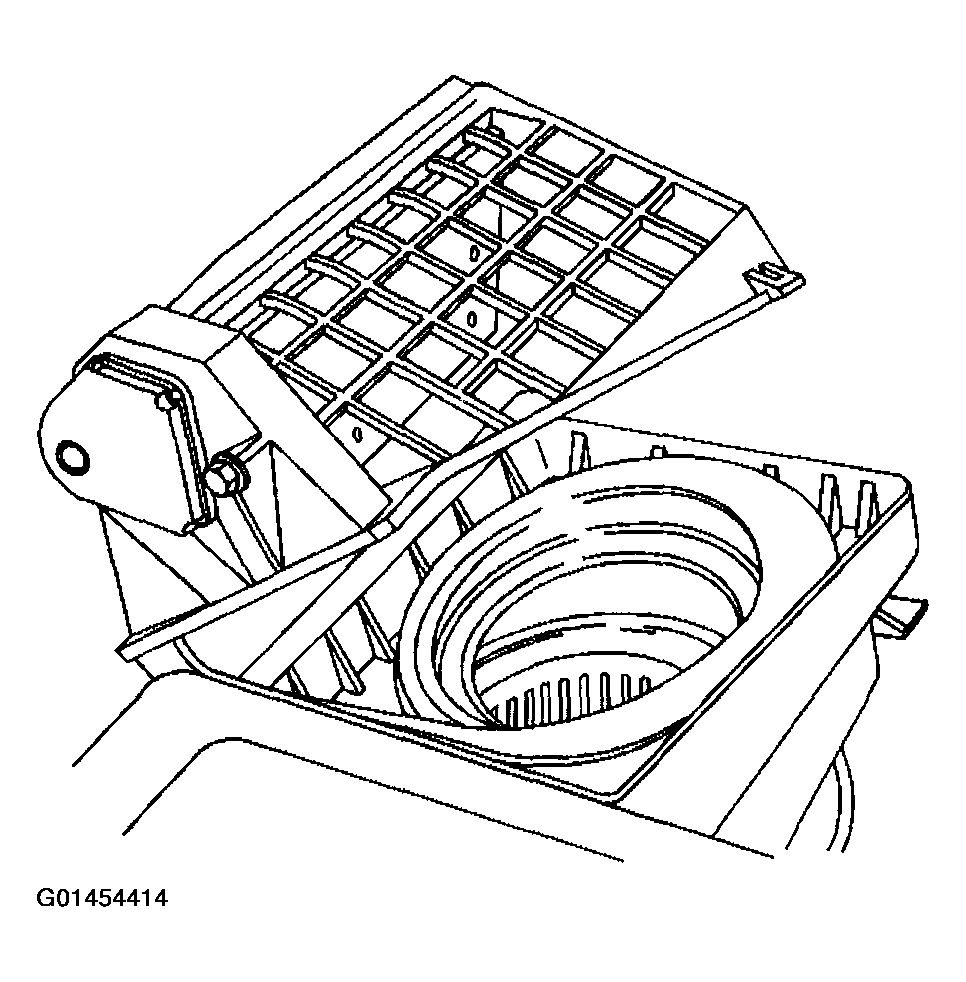

    Fig 2: Removing Recirculation Actuator Mounting Screws
    G01454414Courtesy of GENERAL MOTORS CORP.
  4. Remove the recirculation actuator.
  5. Remove the recirculation door.

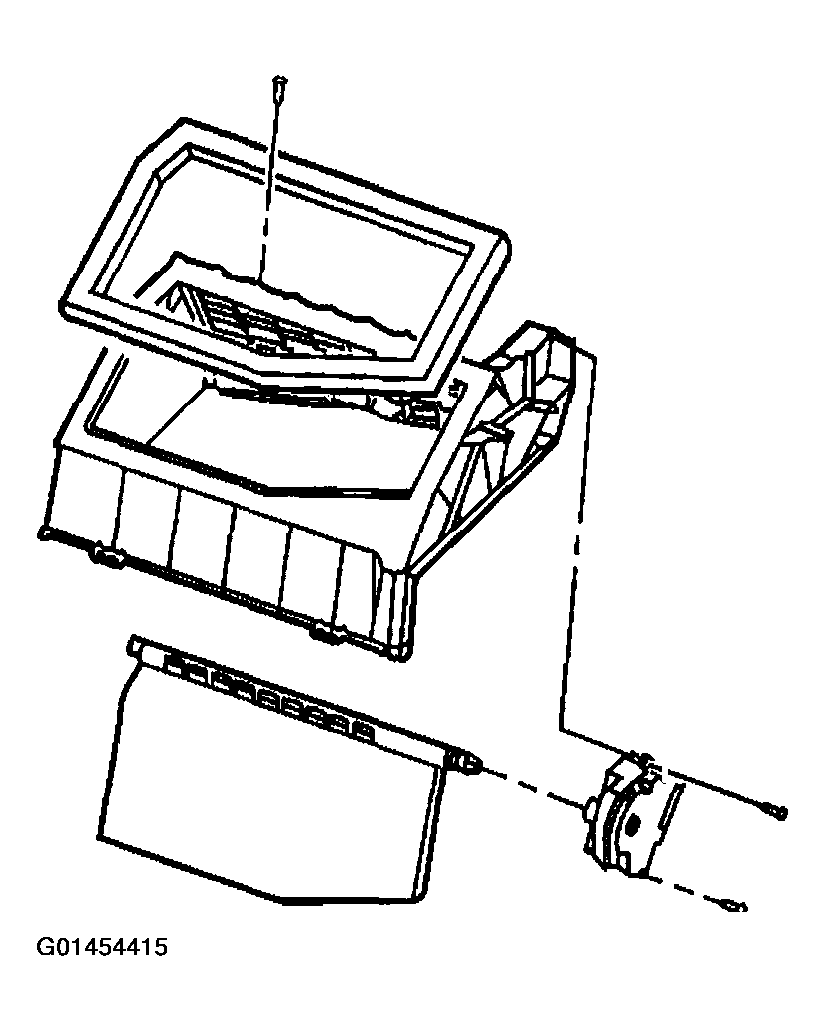

    Fig 3: Removing Recirculation Actuator
    G01454415Courtesy of GENERAL MOTORS CORP.
