Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the recirculation door.
Install the recirculation actuator.

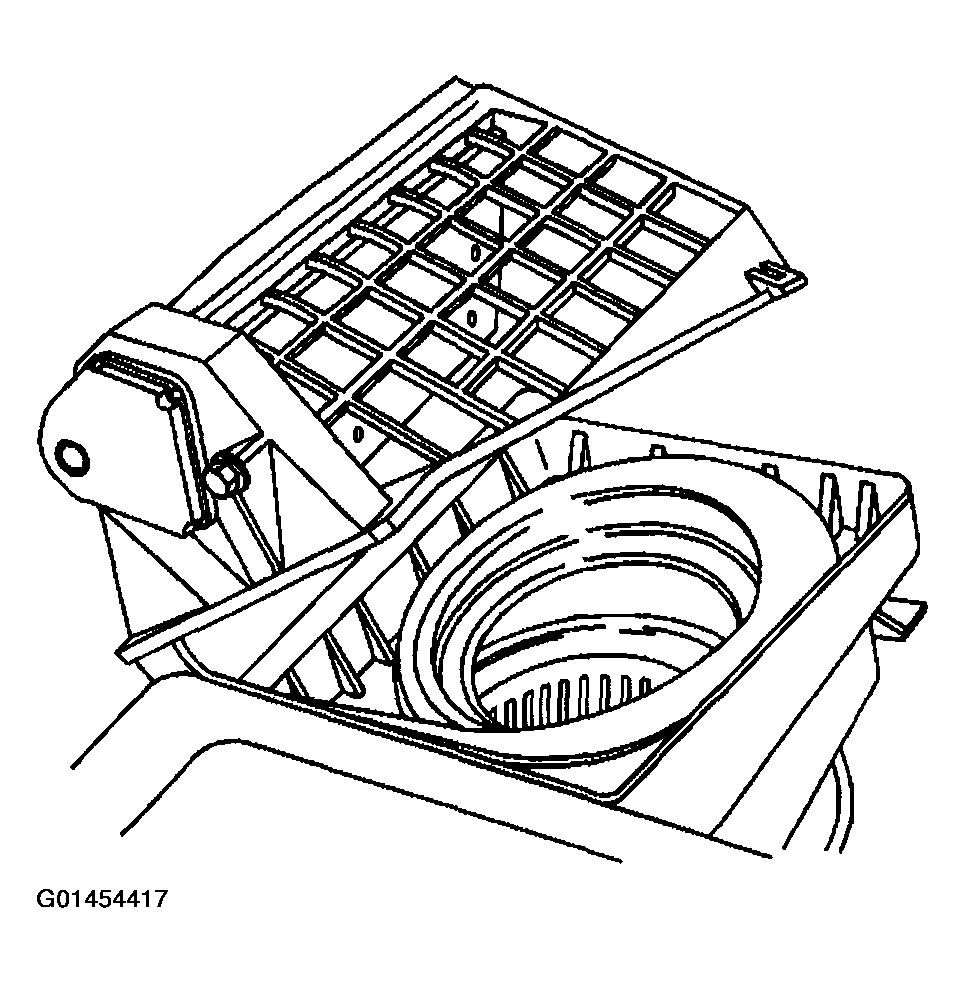

Fig 1: Installing Recirculation Actuator
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the recirculation actuator mounting screws.
Tighten:

Tighten the screws to 1.9 N.m (17 lb in).

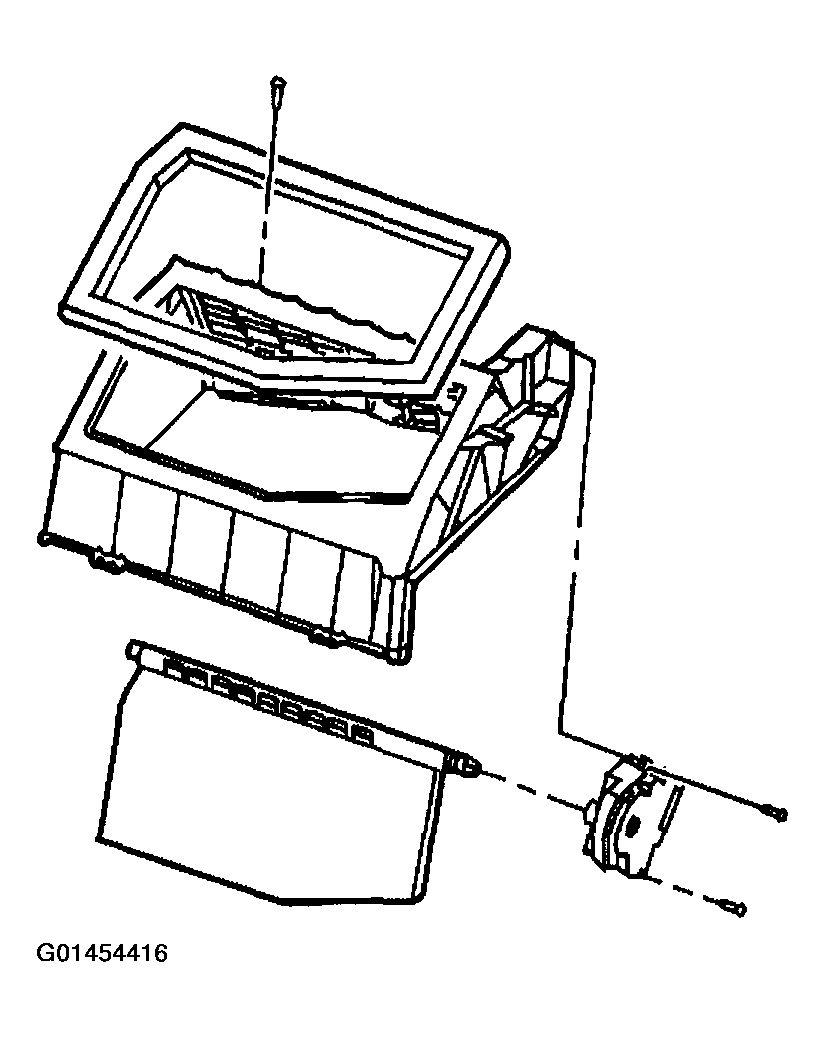

Fig 2: Installing Recirculation Actuator Mounting Screws
Courtesy of GENERAL MOTORS CORP.
Connect the recirculation actuator electrical connection (1).
Install the HVAC module assembly. Refer to HVAC MODULE ASSEMBLY REPLACEMENT .

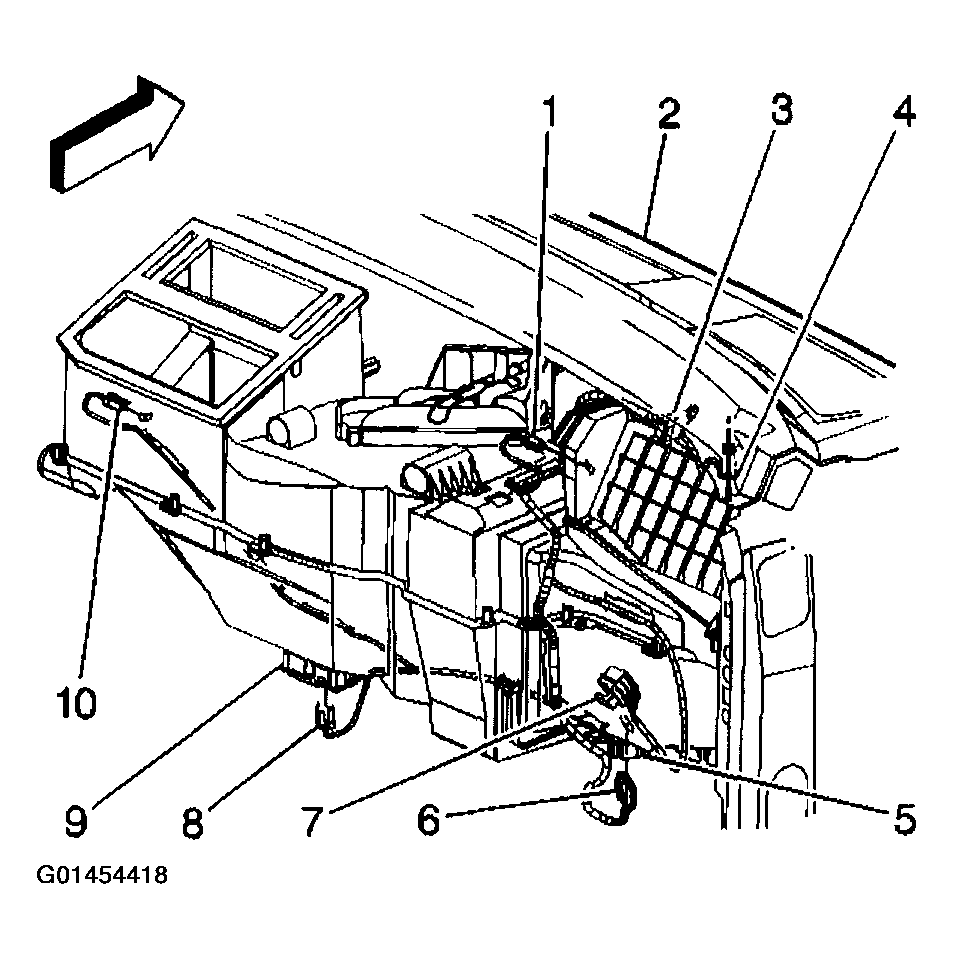

Fig 3: Installing HVAC Module Assembly
Courtesy of GENERAL MOTORS CORP.
