Removal Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble the A/C refrigerant components. Refer to the appropriate repair procedure

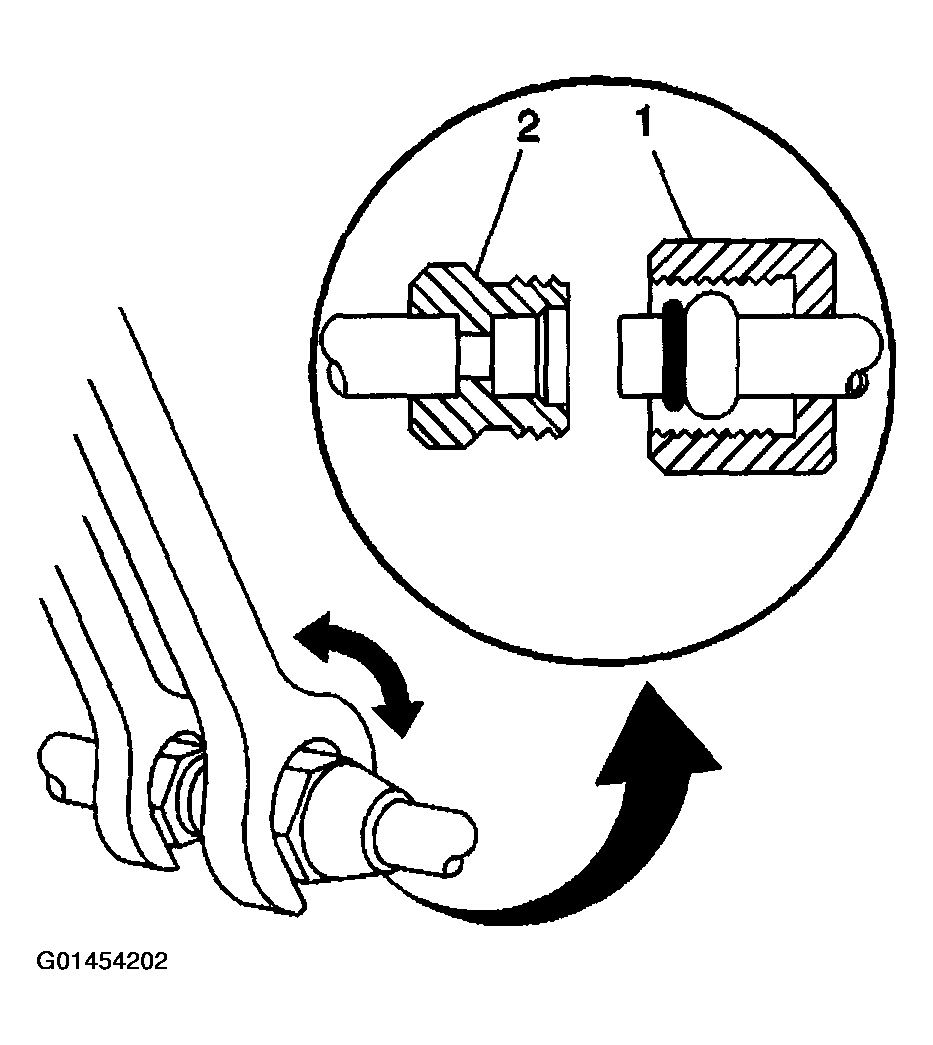

- For compression style fittings use a back up wrench on the fitting (2) and loosen the fitting nut (1).
- For banjo style fittings remove the bolt retaining the banjo type fitting.
- Remove the O-ring seal from the A/C refrigerant component.
- Inspect the O-ring seal for signs of damage to help determine the root cause of the failure.
- Inspect the A/C refrigerant components for damage or burrs. Repair if necessary.
Important: Cap or tape the open A/C refrigerant components immediately to prevent system contamination.
- Cap or tape the A/C refrigerant components.
- Discard the O-ring seal.
