Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: The upper mode door (6) is serviced with the upper HVAC module case (3).

Remove the HVAC module. Refer to HVAC MODULE ASSEMBLY REPLACEMENT .
Disconnect the electrical connector (3) from the mode actuator (4).
Remove the screws from the mode actuator (4).
Remove the mode actuator (4) from the HVAC module assembly (1).

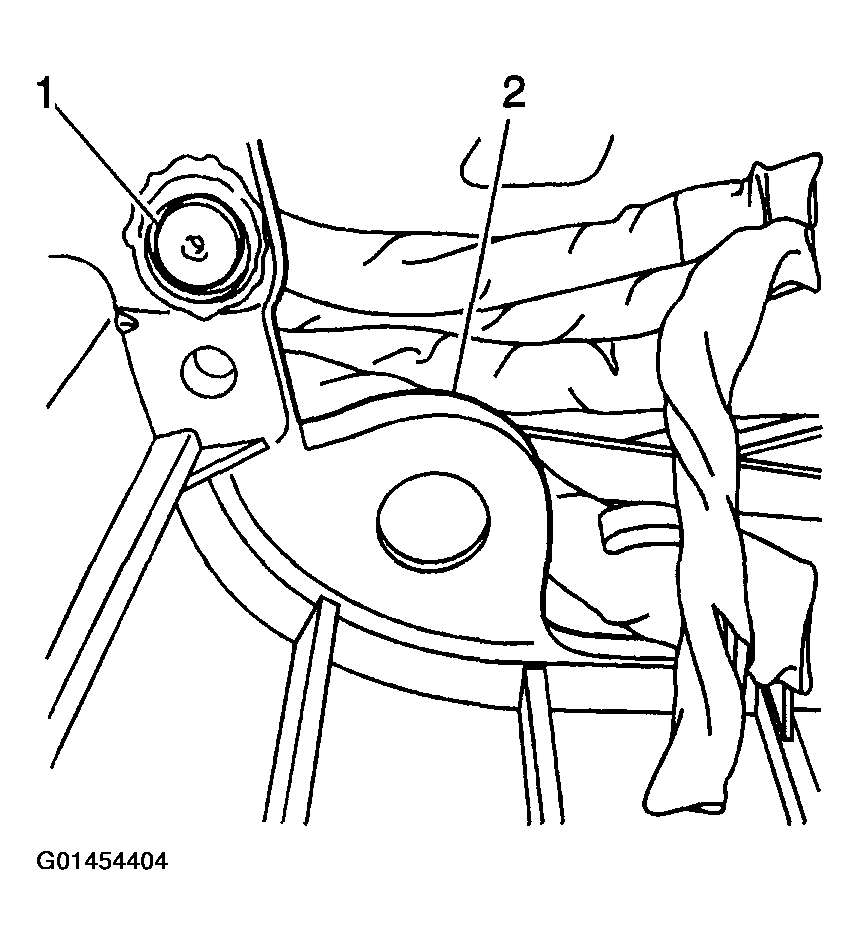

If equipped remove the heat stakes (1) from the HVAC module (2) with a screw driver and a hammer.

Fig 1: Removing Heat Stakes From HVAC Module
Courtesy of GENERAL MOTORS CORP.
If equipped remove the HVAC module assembly screws.
Separate the HVAC module assembly.
Remove the lever (7) from the upper mode door/upper HVAC module case (6).

Fig 2: Removing Mode Door - Upper - Delphi
Courtesy of GENERAL MOTORS CORP.
